Linear HSLG Series Installation Manual page 15

Obstruction detection type – b1, b2
B1 is a non-contact sensor such as a photo eye. B2 is a contact sensor
such as an edge. This setting affects behavior in the closed direction
obstruction detection. If a B2 detector is used, the operator will only
allow an input 2 times to continue automatic closing until a closed limit
switch is successfully made. The first input while closing will reverse the
operator to full open and resume auto close timer behavior if selected.
The second input will cause the operator to reverse slightly and lockout.
✓ NOTE: Jumper wire must be cut and DIP switches set to position
5 for the functions below to be active.
Open Obstruction input active – On, Off
If a swing gate has no entrapment areas this may be selected as off.
This must be on for slide gates.
Close obstruction input active – On, Off
Single gates require this to be on. Paired gates can have this off if the
other gate has it turned on.
✓ NOTE: The following parameters will only be displayed if Paired
Mode is selected ON. The operators must be bot set as paired
mode, powered up, and have the communication cable in place
to complete this correctly. Obstruction inputs active selection for
both operators must all be made from one side. Settings will be
automatically transferred to the operator you are not in front of.
Do not try to set individually
Remote open obstruction active – On, Off
This is used to select if the other operator has the Open Obstruction
input active.
Remote Close obstruction active – On, Off
In paired mode it is only required to have 1 close device per pair of
operators if the only entrapment zone is where the gates meet.
HSLG Slide Gate Operator Installation Guide
www.LinearGateOpeners.com | (888) 378-1053 | Sales@LinearGateOpeners.com

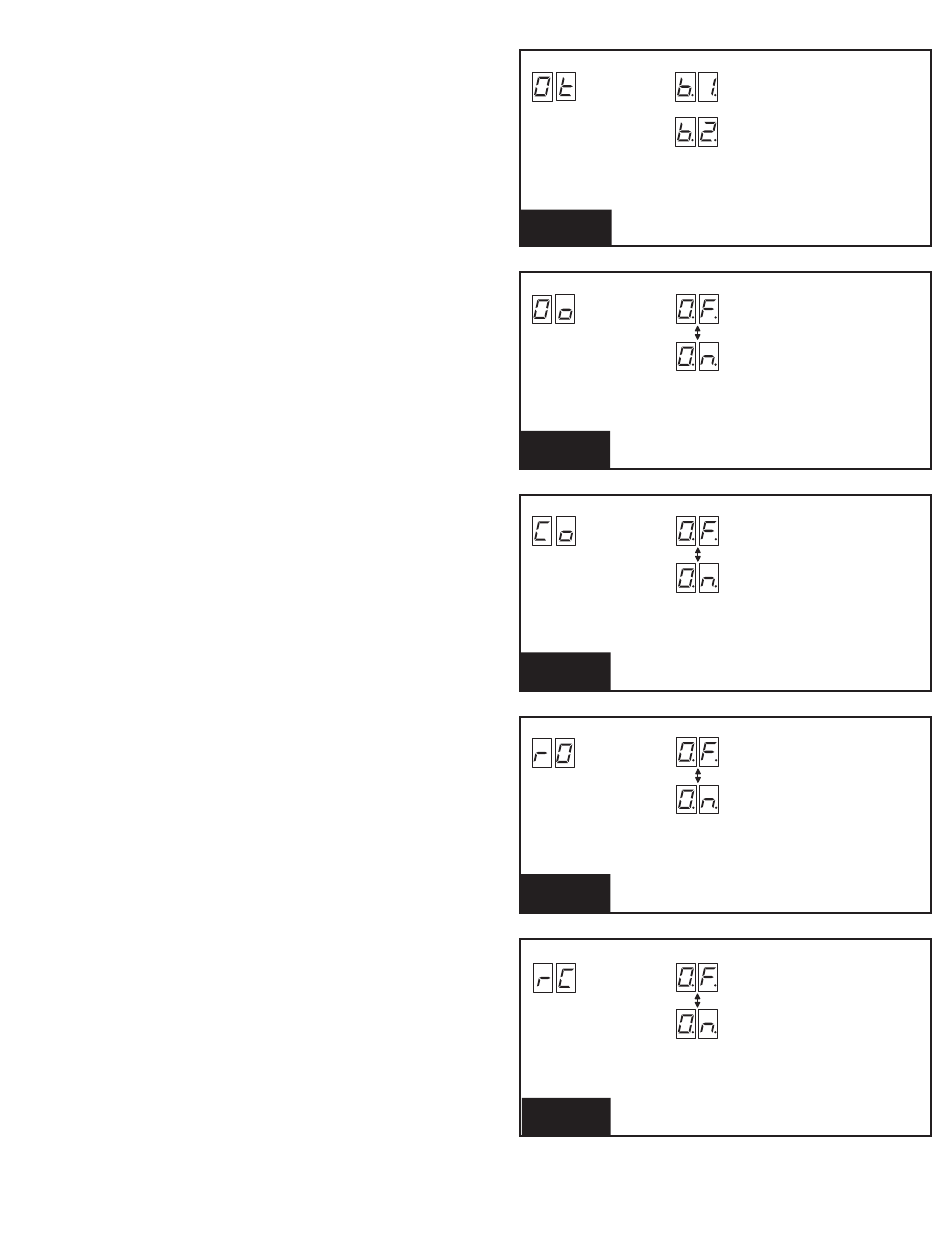

FUNCTION
"OT"
OBSTRUCTION
DETECTION TYPE
FUNCTION
"OO"
OPEN OBSTRUCTION
INPUT ACTIVE
FUNCTION
"CO"
CLOSE OBSTRUCTION
INPUT ACTIVE
FUNCTION
"RO"
REMOTE OPEN
OBSTRUCTION ACTIVE
FUNCTION
"RC"
REMOTE CLOSE
OBSTRUCTION ACTIVE
- 13 -
OPTIONS
FOR NON-CONTACT SENSOR
FOR CONTACT SENSOR
OPTIONS
OPTIONS
OPTIONS
OPTIONS
P1220 X14
