Operator Accessory Connections
3-BUTTON STATION
TELEPHONE ENTRY
PHOTOEYE FOR REVERSE
KEYPAD
PHOTOEYE FOR CLOSE OBSTRUCTION (B1)
KEYSWITCH
SOLENOID LOCK
FIRE ACCESS SWITCH
EXTERNAL POWER
PHOTOEYE FOR OPEN OBSTRUCTION (B1)
SINGLE-CHANNEL RADIO RECEIVER
MAGLOCK
GATE EDGE SENSOR FOR REVERSE (B2)
WARNING STROBE OR AUDIBLE SOUNDER
WIRELESS GATE EDGE SENSOR
MGT
TRANSMITTER

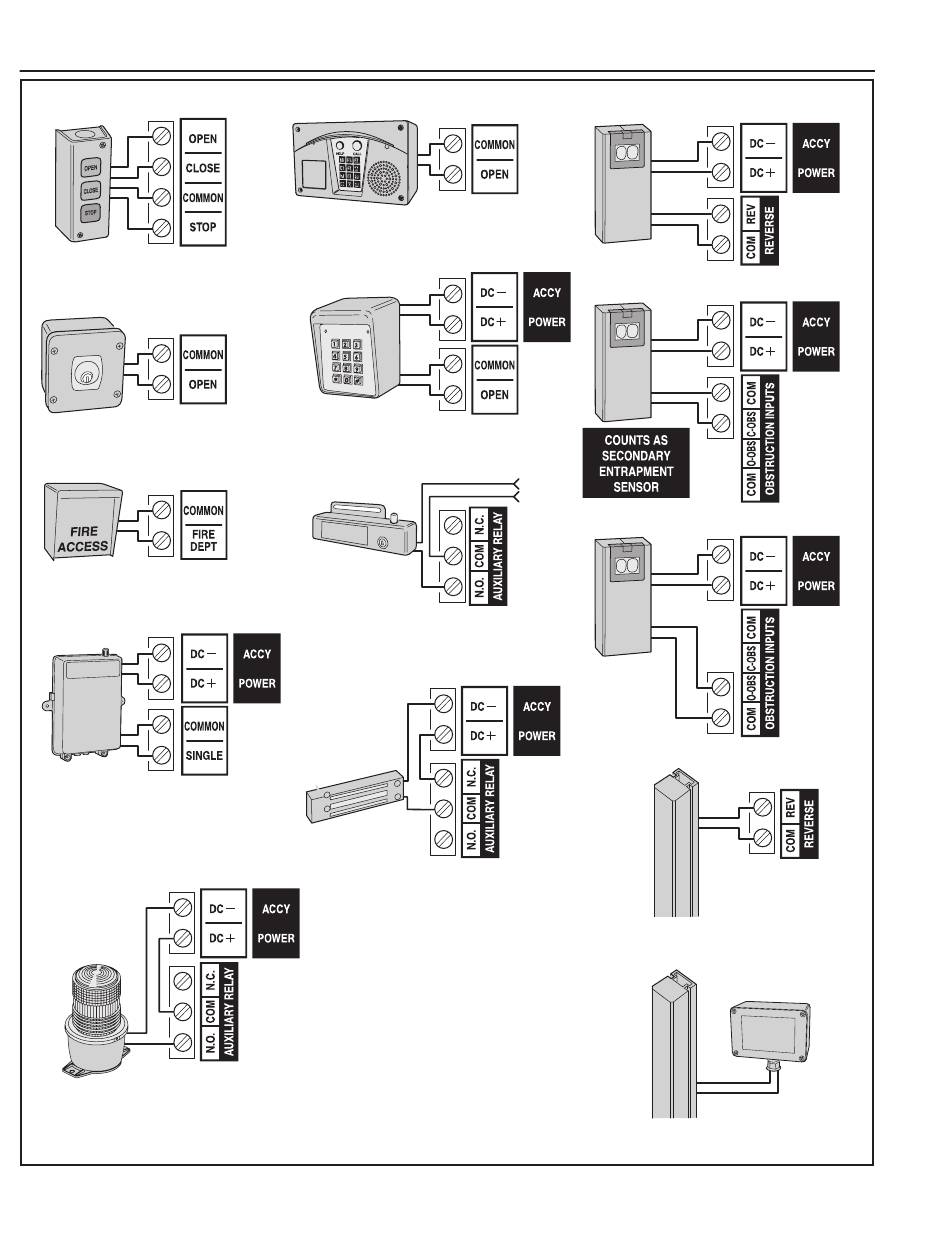

Figure 13. Operator Accessory Connections
