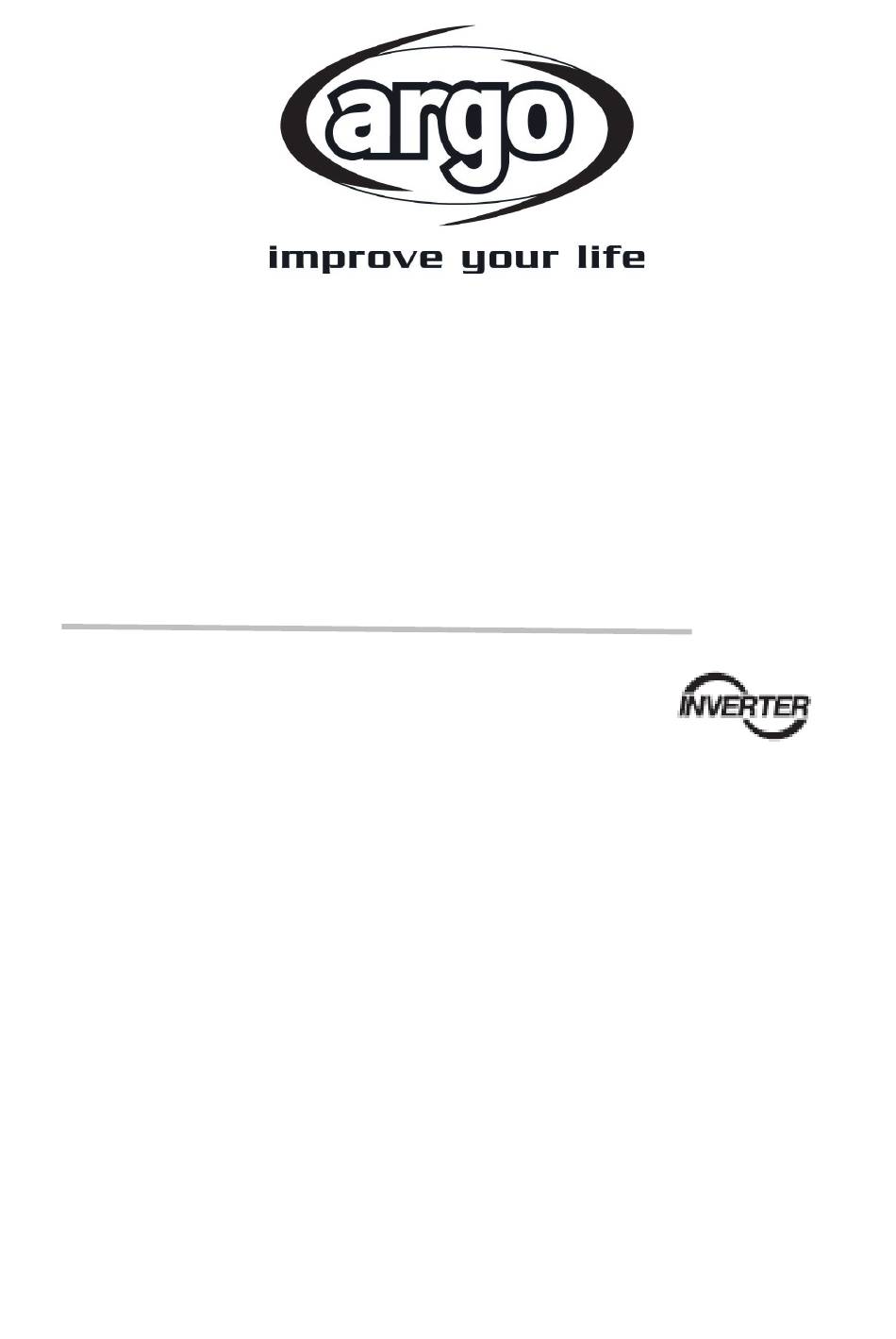

CONDITIONERS – R32
USER AND INSTALLATION MANUAL
OUTDOOR UNITS
ECOLIGHT DUAL 14000 UE N
ECOLIGHT DUAL 18000 UE
ECOLIGHT TRIAL 21000 UE
ECOLIGHT QUADRI 28000 UE
Please read this manual carefully before installing and using the air conditioner, and
retain for future reference.
ECOLIGHT
MULTI SPLIT AIR
INDOOR UNITS
ECOLIGHT 9000 UI (WIFI)
ECOLIGHT 12000 UI (WIFI)
ECOLIGHT 18000 UI (WIFI)
V 10/19
Advertisement
Table of Contents
Related Manuals for Argo ECOLIGHT DUAL 18000 UE
Summary of Contents for Argo ECOLIGHT DUAL 18000 UE
- Page 1 OUTDOOR UNITS ECOLIGHT DUAL 14000 UE N ECOLIGHT 9000 UI (WIFI) ECOLIGHT 12000 UI (WIFI) ECOLIGHT DUAL 18000 UE ECOLIGHT 18000 UI (WIFI) ECOLIGHT TRIAL 21000 UE ECOLIGHT QUADRI 28000 UE Please read this manual carefully before installing and using the air conditioner, and retain for future reference.
-
Page 2: Table Of Contents
Contents Information for use The Refrigerant Precautions for use Description of components Guide to the remote control and display Remote control buttons Getting to know the display icons Getting to know the remote control buttons Getting to know the button combination functions Operating guide Replacing the remote control batteries WiFi guide... -
Page 3: The Refrigerant
Appliance filled with flammable gas R32. Before using the appliance, read the owner’s manual. Before installing the appliance, read the installation manual. Before repairing the appliance, read the service manual. Exception clauses of manufacturer responsibility Manufacturer will bear no responsibilities when personal injury or property loss is caused by the following reasons. -
Page 4: Precautions For Use
INFORMATION FOR USE Precautions for use WARNING • This product is not a toy. Children of less than 3 years should be kept away unless continuously supervised. • This device is not intended for persons (including children aged from 8 years and above) with reduced physical, sensory or mental capabilities, or without the necessary experience and knowledge, unless they have received the necessary supervision or instruction concerning use of the appliance by a person responsible for their... - Page 5 • The unit must be installed and serviced by a qualified technician. Otherwise, there is a risk of damage or personal injury. WARNING In case of smoke or burning It is necessary that power supply Do not cut or damage the power ...
-
Page 6: Description Of Components
Description of components Indoor unit ingresso aria air inlet pannellino panel filtro filter Tasto ausiliario auxiliary button Deflettore orizzontale horizontal flap uscitadell’aria air outlet Spia alimentazione power indicator Finestrella ricevitore receiver window Spia temperatura temperature indicator telecomando remote control The display may vary from the graphic above. Please refer to the purchased product for the actual display content and positions) V 10/19... -
Page 7: Guide To The Remote Control And Display Remote Control Buttons
Outdoor unit Unitàesterna Outdoor unit ingresso aria air inlet impugnatura handle uscita aria air outlet GUIDE TO THE REMOTE CONTROL AND DISPLAY Remote control buttons V 10/19... -
Page 8: Getting To Know The Display Icons
Getting to know the display icons Temp. display type :Set temp. :Indoor ambient temp. :Outdoor ambient temp. Turbo mode Set fan speed Send signal Operation mode Child lock health function Auto mode ventilation operation Cool mode 8℃ heating function Dry mode Set temperature Sleep mode Fan mode... - Page 9 N.B. When several indoor units are connected to the same outdoor unit, do not select the AUTO mode, unless only one indoor unit is used and the others are switched off. All the units must in fact operate in the same mode: if the mode selected or automatically defined is different for the units connected to the same outdoor unit, the system goes into error and the error E7 appears on the display of the indoor unit.
- Page 10 nessuna visualizzazione (il deflettore orizzontale si arresta nella no display (the horizontal flap stops in the current position) posizione corrente) 6. SLEEP button In cool, heat or dry mode, press this button to start the SLEEP function. The icon will appear on the remote control display.
-
Page 11: Getting To Know The Button Combination Functions
The remote control should be positioned near the user when this function is selected. The remote control should not be placed anywhere high or low temperatures may occur to avoid inaccurate ambient temperature detection. 10. TIMER ON/OFF button On a working unit, press this button to set the unit's power off time. When the unit is off, press this button to set the unit's power-up time. -
Page 12: Operating Guide
Remote control button lock function Press "▲" and "▼" simultaneously to enable or disable the remote control button lock function. When this function is enabled, will appear on the remote control display. If you attempt to operate the remote control, the icon will flash three times and no signal will be sent to the unit. -
Page 13: Wifi Guide
When the remote control is not used for a month or more, remove the batteries. • Use batteries of the same type when replacing the batteries, as necessary. • • If the icons on the remote control display are blurred or not visible, replace the batteries. INFORMATION FOR THE CORRECT DISPOSAL OF BATTERIES IN ACCORDANCE WITH EUROPEAN DIRECTIVE 2006/66/EC and MODIFICATIONS INTRODUCED BY DIRECTIVE 2013/56/UE Replace batteries when they are depleted. - Page 14 Before starting any procedure, disconnect the power supply from the product, allow a few minutes to pass and reconnect it. 2. Registration and access. After installing the application, open "EWPE SMART" and click Sign up to register. PLEASE NOTE: • USERNAME: must be UNIQUE, composed of name + number, without spaces (eg Rossi57) •...
- Page 15 A menu appears with all the categories of devices that can be connected. Select the relevant type: In case of residential air conditioner: the fist box on left After choosing the category of interest, proceed with the reset of the unit. Different unit reset systems can be chosen depending on the type of unit / system and remote control (with or without wifi key).
- Page 16 After performing the reset following the instructions, click on Next to automatically add the unit (it’s necessary to enter Wi-Fi password). WIRE CONTROL OR REMOTE CONTROL WITH WIFI REMOTE CONTROL WITHOUT WIFI PORTABLE AIR BUTTON BUTTON (MODE and TURBO) CONDITIONER (CONTROL Direct the remote control towards Direct the remote control towards PANEL RESET)
- Page 17 Select the desired network and continue the configuration. After performing the electrical reset of the unit and entering the information, perform a search for the unit (Search appliance) and continue the configuration. V 10/19...
- Page 18 Configuration of the main functions In the Homepage click on the device you wish to control and access the operating interface of it. 1. Select, operating mode, temperature and fan speed. Mode 2. Temperature for each mode: just slide your finger on the indicated temperature 3.
- Page 19 4. Set advanced functions Click Function (Func) in the lower left corner of the interface to enter the advanced settings. X-FAN fucntion Vertical flap swinging Horizontal flap swinging (if available) Sleep function Light on indoor unit display Temperature unit conversion V 10/19...
- Page 20 Swing setting Click Up & down swing to turn the swing function on or off. Click the arrow in the lower right corner of the icon to go to the next screen and set the swing level. List of Preselections Click Timer.
- Page 21 2. Group Control Click Group Control to use the present devices (Ex. Change the group name to "hhh" and set up the devices in the group list). When this group is working you can change the settings of the whole group. 3.
- Page 22 4. Help Press Help to view the instructions for EWPE SMART APP. 5. Feedback Click Feedback to send a feedback on the product. V 10/19...
-
Page 23: Emergency Operation
6. How to reset the air conditioner WiFi module: Turn off the unit with the remote control and disconnect the air conditioner power for at least 10 seconds. Reconnect the power supply. After 1 minute, press the "WiFi" and "Mode" buttons simultaneously. -
Page 24: Troubleshooting Possible Faults And Solutions
Cleaning the filters Open the panel Remove the filters Lift the front panel of the indoor unit, as shown. Remove the filters by lifting one of the bottom corners pulling them downwards, as shown. Refit the filters Clean the filters Refit the filters and close the front panel. - Page 25 Fault Check Solution Is there noticeable interference (e.g. static Pull out the plug. After about 3 minutes electricity, stable voltage)? reinsert the plug and restart the unit. Is the remote control within the signal The maximum signal reception distance reception range? is 8 m.
-
Page 26: Analysing Faults And Solutions
Has the air conditioner recently been The noise is produced by the refrigerant Sound of running turned on or off? flowing inside the unit (normal water phenomenon). Has the air conditioner recently been It is the sound of the friction caused by turned on or off? the expansion and/or contraction of the Creaking/cracking... -
Page 27: Installation Instructions Installation Diagrams
INSTALLATION INSTRUCTIONS Installation diagrams Space to the wall At least 15cm At least 15cm Space to the wall Drainage pipe V 10/19... -
Page 28: Choosing A Location For Installation
INSTALLATION WARNINGS WARNING: Make sure that the power supply is disconnected before carrying out any work on the unit. WARNING: Wear appropriate personal protective equipment before carrying out any work on the unit. WARNING: The appliance must be reinstalled in accordance with national system regulations. WARNING: Wiring and installation must only be performed by a qualified technician trained to install, modify, extend and service the unit and perform safety and functionality tests. -
Page 29: Electrical Connection Requirements
Electrical connection requirements Safety precautions 1. Electrical safety standards must be met when installing the unit. 2. Use a power supply circuit and circuit breaker that comply with local safety regulations. 3. Make sure that the power supply matches the requirements of the air conditioner. An unstable power supply or incorrect wiring may result in a fault. - Page 30 hose. The hose must be connected to a pipe with a suitable gradient, ensuring no unnecessary bends are created. Do not run siphons and do not immerse in water. Step two: mount the wall-installation plate 1. Position the installation plate on the wall. Use a level to position it horizontally and mark the holes for the bolts on the wall.
- Page 31 Step five: connect the indoor unit pipe Position the pipe joint in the corresponding bellmouth. Pre-tighten the union nut by hand. giunto pipe tubo joint dado union raccordo Adjust the torque according to the following table. Position the open-end spanner on the pipe joint position the torque wrench on the union nut.
- Page 32 Step seven: connect the indoor unit electrical cable 1. Open the panel. Remove the screw that secures the small panel covering the terminal board. 2. Insert the indoor and outdoor unit connecting cable into the rear hole corresponding to the terminal block.
-
Page 33: Outdoor Unit Installation
tubo di collegamento connecting pipe unità interna indoor unit tubo di scarico drain pipe cavo di alimentazione interno indoor and outdoor power cable fascetta binding tape ed esterno cavo di alimentazione interno Indoor powercable tubo gas gas pipe fascetta binding tape tubo di scarico drain pipe tubo del liquido... - Page 34 brackets appropriately sized to support the weight of the unit. Condensation produced due to the operation in heating can be piped to a drain using the appropriate predisposition. Handling the unit The handling of the product must be After unpacking make sure that the made qualified prepared...
- Page 35 Refrigerating connections Use equipment and connecting pipes suitable for R32 refrigerator. MODELS Keep sealed all open • Standard refrigerant extremities of the pipes charge piping length with a cap until the Maximum length of pipes connection is completed. with additional charge Be sure not to let anything in the pipes or Maximum length piping...
-
Page 36: Vacuum Pump
Vacuum pump Humid air left inside the refrigerant circuit can cause com- pressor malfunction. After having connected the indoor and outdoor units, bleed the air and humidity from the refrigerant circuit using a vacuum pump. (1) Unscrew and remove the caps from the 2-way and 3- way valves. - Page 37 Electrical connections 1. Remove the cover of the terminal block on the right side of the outdoor unit. (one screw) 2. Connect the wires to the unit as shown in the figure, make sure that each cable is properly connected to the terminal boards of the two units. 3.
- Page 38 ECOLIGHT DUAL 18000 UE Handle To unit A To unit B connecting Power cord connecting cable cable To the power supply ECOLIGHT TRIAL 21000 UE Handle To unit A To unit B To unit C connecting Power cord connecting connecting...
- Page 39 ECOLIGHT QUADRI 28000 UE Handle To unit B To unit C To unit A Power cord connecting connecting connecting connecting cable cable cable cable To the power supply V 10/19...
-
Page 40: Safety Operation Of Flammable Refrigerant
V 10/19... -
Page 41: Post-Installation Checks
Post-installation checks Checks Possible fault Has the unit been installed securely? The unit could fall, move or produce excessive noise. Is the thermal insulation of the pipes sufficient? Risk of condensation and dripping water. Has the check for gas leaks been executed? Risk of cooling (heating) not satisfactory. -
Page 42: Procedure For Extending The Piping
Procedure for extending the piping N.B.: Improper extension of piping is the main cause of refrigerant leaks. Proceed as shown below: 1. Cut the pipe 5. Expand the port • Check the length of the pipe based on the Expand the port using a pipe expander. distance between the indoor unit and outdoor unit. - Page 43 Do not release R32 into the atmosphere. ECOLIGHT DUAL 14000 UE N - Kg. 0,9 = 0,608 Tonn CO equiv. ECOLIGHT DUAL 18000 UE - Kg. 1,00 = 0,675 Tonn CO equiv. ECOLIGHT TRIAL 21000 UE - Kg. 1,60 = 1,080 Tonn CO equiv.
