MULTI SPLIT AIR
CONDITIONERS – R32 - WIFI
USER and INSTALLATION MANUAL
OUTDOOR UNITS

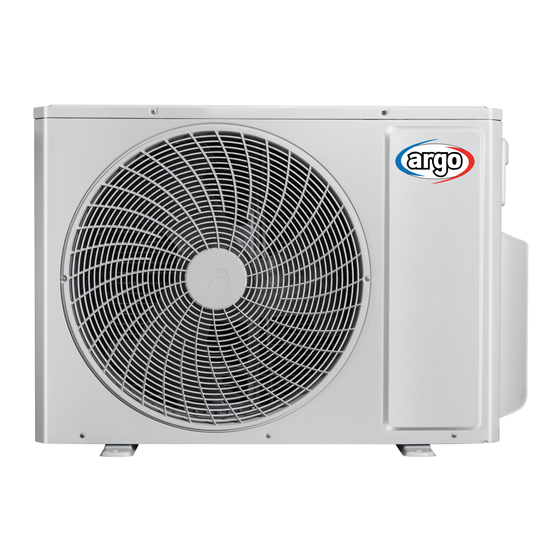

ARGO DUAL 14 DCI R32
ARGO DUAL 18 DCI R32
ARGO TRIAL 21 DCI R32
ARGO TRIAL 24 DCI R32
ARGO QUADRI 28 DCI R32
ARGO QUADRI 36 DCI R32
ARGO PENTA 42 DCI R32
Please read this manual carefully before installing and using the air conditioner, and retain
for future reference.
V 09/22
Advertisement
Table of Contents
Related Manuals for Argo DUAL 14 DCI R32
Summary of Contents for Argo DUAL 14 DCI R32
- Page 1 MULTI SPLIT AIR CONDITIONERS – R32 - WIFI USER and INSTALLATION MANUAL OUTDOOR UNITS ARGO DUAL 14 DCI R32 ARGO DUAL 18 DCI R32 ARGO TRIAL 21 DCI R32 ARGO TRIAL 24 DCI R32 ARGO QUADRI 28 DCI R32 ARGO QUADRI 36 DCI R32...
-
Page 2: Table Of Contents
Contents Information for use The Refrigerant Precautions for use Description of components Installation instructions Installation diagrams Choosing a location for installation Electrical connection requirements Installation Outdoor unit installation Vacuum pump Testing and operation Post-installation checks Safety operation of flammable refrigerant Test operation Appendices Piping configuration... - Page 3 This product is not intended for use by persons (including children) with reduced physical, sensory or mental abilities or who do not possess adequate experience and knowledge, unless they are supervised or instructed in the use of the product. by a person responsible for their safety.
- Page 4 Spiegazione dei simboli This symbol indicates the possibility of death or serious injury. WARNING This symbol indicates the possibility of injury or damage to CAUTION property. Indicates important but not hazard-related information, used NOTICE to indicate risk of property damage. Indicates a hazard generally marked with the word WARNING or CAUTION.
-
Page 5: Information For Use The Refrigerant
INFORMATION FOR USE The Refrigerant R32 Appliance is filled with flammable gas R32. Before installing and using the appliance, read the owner manual. Before installing the appliance, read the installation manual. Any repairs you need, contact the nearest authorized Service Centre and strictly follow manufacturer’s Service Manual. -
Page 6: Precautions For Use
INFORMATION FOR USE Precautions for use WARNING This product is not a toy. Children of less than 3 years should be kept away unless continuously supervised. This device is not intended for persons (including children aged from 8 years and above) with reduced physical, sensory or mental capabilities, or without the necessary experience and knowledge, unless they have received the necessary supervision or instruction concerning use of the appliance by a person responsible for their... - Page 7 Frequency band(s) in which the radio equipment operates 2400MHz-2483.5MHz. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates: 20dBm. WARNING In case of smoke or burning It is necessary that power supply ...
-
Page 8: Description Of Components
Description of components Outdoor unit Air inlet Valve Operating temperature range The operating temperature range (outdoor temperature) in cooling : from -15°C~ to +43°C. The operating temperature range (outdoor temperature) in heating : from -15°C~ a +24°C. V 09/22... -
Page 9: Installation Instructions Installation Diagrams
INSTALLATION INSTRUCTIONS Installation diagrams V 09/22... - Page 10 INSTALLATION WARNINGS WARNING: Make sure that the power supply is disconnected before carrying out any work on the unit. WARNING: Wear appropriate personal protective equipment before carrying out any work on the unit. WARNING: The appliance must be reinstalled in accordance with national system regulations. WARNING: Wiring and installation must only be performed by a qualified technician trained to install, modify, extend and service the unit and perform safety and functionality tests.
-
Page 11: Choosing A Location For Installation
Use the specified cable types for electrical connections between indoor and outdoor units. Securely lock the cables so that their terminals do not receive external stress. Electric cables with insufficient capacity, incorrect cable connections and insecure cable terminals may cause electric shock or fire. Choosing a location for installation Essential requirements Indoor unit... - Page 12 (Warning: do not use only the fuse to protect the circuit). Air conditioner Air switch capacity 14-18K 21-24-28K 36K – 42K ARGO DUAL 14 DCI R32 – ARGO DUAL 18 DCI R32 V 09/22...
- Page 13 ARGO TRIAL 21 DCI R32 – ARGO TRIAL 24 DCI R32 ARGO QUADRI 28 DCI R32 – ARGO QUADRI 36 DCI R32 V 09/22...
-
Page 14: Outdoor Unit Installation
ARGO PENTA 42 DCI R32 Outdoor unit installation For all connections refer to the wiring diagrams supplied with the unit. If the outdoor unit was connected to a higher level than the one of the indoor unit, you must make a siphon. The outdoor unit must be installed outdoors, in a perfectly horizontal position, respecting the minimum distances to allow the air to flow and the execution of any maintenance. -
Page 15: Vacuum Pump
Note: Take sufficient protective measures when • installing the outdoor unit. Make sure that the stand can support at least four times the weight of the unit. • The outdoor unit must be placed at least 3cm above the floor in order to install the drain joint. - Page 16 Leakage detection 1. With leakage detector: Check if there is leakage with leakage detector. 2. With soap water: If leakage detector is not available, please use soap water for leakage detection. Apply soap water at the suspected position and keep the soap water for more than 3min. If there are air bubbles coming out of this position, there's a leakage.
-
Page 17: Post-Installation Checks
Post-installation checks Checks Possible fault Has the unit been installed securely? The unit could fall, move or produce excessive noise. Is the thermal insulation of the pipes sufficient? Risk of condensation and dripping water. Has the check for gas leaks been executed? Risk of cooling (heating) not satisfactory. - Page 18 table a - Minimum room area ( m ) Charge amount (kg) ≤1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.1 2.2 2.3 2.4 floor location 14.5 16.8 19.3 22 24.8 27.8 31 34.3 37.8 41.5 45.4 49.4 53.6 Minimum room window mounted 5.2 6.1...
-
Page 19: Test Operation
TESTING AND OPERATION Test operation Preparation of test operation The client approves the air conditioner. Specify the important notes for air conditioner to the client. Method of test operation Put through the power, press ON/OFF button on the remote controller to start operation. Press MODE button to select AUTO, COOL, DRY, FAN and HEAT to check whether the operation is normal or not. -
Page 20: Procedure For Extending The Piping
Procedure for extending the piping N.B.: Improper extension of piping is the main cause of refrigerant leaks. Proceed as shown below: 1. Cut the pipe 5. Expand the port • Check the length of the pipe based on the Expand the port using a pipe expander. distance between the indoor unit and outdoor unit. -
Page 21: Warnings For The Refrigeration System Specialist
superficie danneggiata surface damaged fessurazione cracked spessore irregolare uneven thickness tubo di raccordo union pipe tubo pipe Warnings for the refrigeration system specialist Here are warnings and safety instructions for the maintenance of systems containing flammable refrigerant (repairs should only be carried out by specialists). a) Any person involved in the work or in the interruption of a refrigeration circuit must be equipped with PEF (European Refrigerators License) as required by the D.P.R. - Page 22 (percentage) of the refrigerant. Calibrate and adjust to the correct gas concentration (no more than 25%) with the refrigerant used. The fluid used in leak detection is applicable to most refrigerants. But do not use chloride based solvents to prevent the reaction between chlorine and refrigerants and corrosion of copper piping.
- Page 23 k) Deactivation Before carrying out this procedure, it is essential that the technician is fully familiar with the equipment and all its details. Good practice is recommended that all refrigerants be recovered safely. Before the task is performed, a sample of the oil and refrigerant must be taken in case an analysis is required before reuse of the recovered refrigerant.
- Page 24 No person carrying out work in relation to a refrigeration system involving exposure to piping must use sources of ignition in a way that creates the risk of fire or explosion. All possible sources of ignition, including cigarette smoke, must be kept sufficiently far from the place of installation, repair, removal and disposal, during which the refrigerant may possibly be released into the surrounding space.
- Page 25 The unit contains R32, a fluorinated greenhouse gas with global warming potential (GWP) = 675. Do not release R32 into the atmosphere. DUAL 14 DCI R32 - Kg. 0,75 = Tonn CO equiv. 0,51 DUAL 18 DCI R32 - Kg. 0,90 = Tonn CO equiv.
