Summary of Contents for Chauvet DJ EZLink Par Q4BT ILS
- Page 1 EZLink Par Q4BT ILS User Manual...
- Page 2 Edition Notes The EZLink Par Q4BT ILS User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the EZLink Par Q4BT ILS as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and EZLink are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
IRC-6 Infrared Remote Control ..............IRC-6 Operation ......................13 Bluetooth Control ..................Master/Slave Mode ..................D-Fi USB Master/Slave Mode ............... ILS Mode....................... 5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................EZLink Par Q4BT ILS User Manual... -
Page 4: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. EZLink Par Q4BT ILS User Manual Rev. 2... -
Page 5: Safety Notes
Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. EZLink Par Q4BT ILS User Manual Rev. 2... -
Page 6: Rf Exposure Warning For North America And Australia
This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. EZLink Par Q4BT ILS User Manual Rev. 2... -
Page 7: Introduction

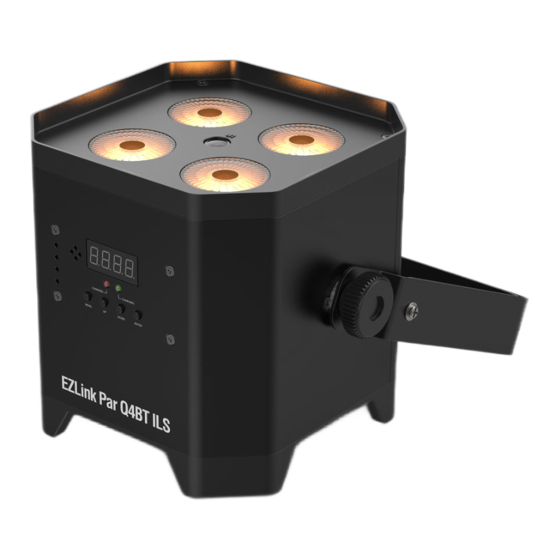

2. I NTRODUCTION Product Overview Name Mounting bracket Power on/off Fuse holder Battery Power in/out Safety loop D-Fi USB port Bracket adjustment knob 3-pin DMX in/out Menu buttons Display screen Battery status indicator EZLink Par Q4BT ILS User Manual Rev. 2... -
Page 8: Product Dimensions
Introduction Product Dimensions 9.3 in 236 mm 5.7 in 145 mm 5.7 in 145 mm 5.7 in 7.2 in 145 mm 183 mm EZLink Par Q4BT ILS User Manual Rev. 2... -
Page 9: Setup
3. Setup AC Power The EZLink Par Q4BT ILS has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel or refer to the... -
Page 10: Power Linking
Additional EZLink Par Q4BT ILS It is possible to power link up to 16 EZLink Par Q4BT ILS products on 120 VAC or up to 29 EZLink Par Q4BT ILS products on 230 VAC. The power-linking diagram corresponds to the North American version of the product ONLY! If using the product in other markets, consult with the local Chauvet distributor, as power-linking connectors and requirements may differ by country or region. -
Page 11: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The EZLink Par Q4BT ILS may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 12: Operation
If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The EZLink Par Q4BT ILS uses up to 8 DMX channels in a 8Ch DMX mode, which defines the highest configurable address to 505. -
Page 13: D-Fi Usb Connectivity
D-Fi USB Connectivity The EZLink Par Q4BT ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D- Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 14: Dmx Values
DMX signals from the controller. Preset Color Mode To run the EZLink Par Q4BT ILS on a static color, follow the instructions below: 1. Press <MENU> repeatedly until C-- shows on the display. 2. Press <ENTER>. -
Page 15: Sound-Active Programs
Operation Sound-Active Programs To run the EZLink Par Q4BT ILS with a sound-active program, follow the instructions below. 1. Press <MENU> repeatedly until Snd shows on the display. 2. Use <UP> or <DOWN> to set the Sound-Active program, from Snd1 to Snd5. -
Page 16: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The EZLink Par Q4BT ILS can be operated with the CHAUVET IRC-6. To enable IR wireless control, follow the instructions below. 1. Press <MENU> repeatedly until SEt shows on the display. 2. Press <ENTER>. 3. Press <UP> repeatedly until ir shows on the display. -
Page 17: Master/Slave Mode
D-Fi USB Master/Slave Mode The D-Fi USB allows a single EZLink Par Q4BT ILS product (the “master”) to control the actions of one or more EZLink Par Q4BT ILS products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in DMX mode. -
Page 18: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. EZLink Par Q4BT ILS User Manual Rev. 2... -
Page 19: Technical Specifications
Maximum External Temperature Cooling System 104 °F (40 °C) Convection I/O Connector Channel Range 3-pin XLR 4 or 8 Ordering Product Name Item Code UPC Number EZLink Par Q4BT ILS 10032011 781462223595 EZLink Par Q4BT ILS User Manual Rev. 2... -
Page 20: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. EZLink Par Q4BT ILS User Manual Rev. 2...
