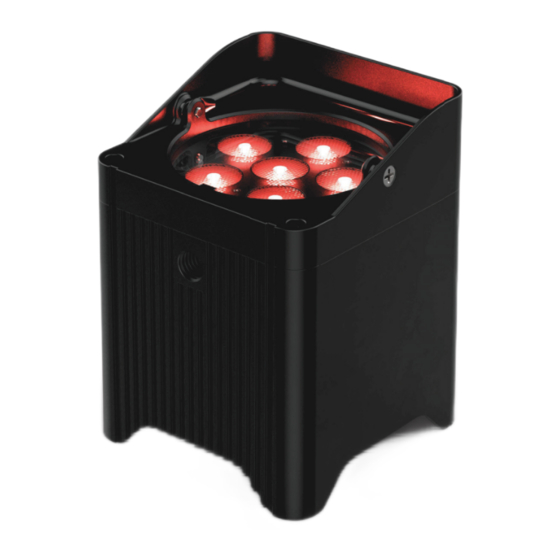

Summary of Contents for Chauvet DJ Freedom Par T6
- Page 1 User Manual...
-
Page 2: Table Of Contents
Display Back Light......................15 Password ........................15 Product Information......................15 Factory Reset......................... 16 Master/Slave Mode ..................RFC-XL Remote Control ................RFC-XL Remote Control Operation ................17 6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Freedom Par T6 User Manual Rev. 1... -
Page 3: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. Freedom Par T6 User Manual Rev. 1... -
Page 4: Safety Notes
Continue charging if the battery becomes hot, smokes, swells, or gives off an odor during charging. ♦ Leave the product unattended while charging. ♦ Deplete the battery below 10%. ♦ Charge the battery in a closed container. ♦ Charge for more than 24 hours. Freedom Par T6 User Manual Rev. 1... -
Page 5: Fcc Compliance
Electronically published by Chauvet in the United States of America. Chauvet, the Chauvet logo, and Freedom Par T6 are registered trademarks or trademarks of Chauvet & Sons LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 6: Introduction
Product Overview Power button Microphone Display screen Carry handle Menu button Kensington security slot power in Kickstand Magnetic Kickstand diffuser release Product Dimensions 3.9 in 3.9 in 98 mm 98 mm 5.1 in 130mm Freedom Par T6 User Manual Rev. 1... -
Page 7: Setup
3. Setup AC Power The Freedom Par T6 has an external power supply and can work with an input voltage of 24 VDC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel or refer to the product’s specifications chart. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Freedom Par T6 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Accessories
Setup Accessories The Freedom Par T9 comes with a removable magnetic diffuser. To attach or remove the magnetic diffuser, see the diagram below: Magnetic diffuser Freedom Par T6 User Manual Rev. 1... -
Page 10: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Freedom Par T6 User Manual Rev. 1... -
Page 11: Operation
<DOWN> Navigates downwards through the menu list and decreases the numeric value when in a function <ENTER> Enables the currently displayed menu or sets the currently selected value into the selected function Menu Map Refer to the Freedom Par T6 product page on www.chauvetdj.com for the latest menu map. - Page 12 Selects the foreground and background colors, and adjusts the speed of auto programs Auto Show FG Color Auto 5–9 Note: Foreground and background colors BG Color are available only for auto programs 5–9. Freedom Par T6 User Manual Rev. 1...
-
Page 13: Configuration (Dmx)
Choosing a starting address that is too high could restrict access to some of the product’s channels. The Freedom Par T6 uses up to 13 DMX channels in a 13Ch DMX mode, which defines the highest configurable address to 500. - Page 14 052 101 Dimmer speed mode off Dimmer speed – – 102 152 Dimmer speed mode 1 (fastest) mode 153 203 Dimmer speed mode 2 204 255 Dimmer speed mode 3 (slowest) Freedom Par T6 User Manual Rev. 1...
-
Page 15: Configuration (Standalone)
Ambient, 2700K, 3500K, 4000K, 5000K, or 6000K. 6. Press <ENTER>. Fixed Color Mode To run the Freedom Par T6 on a single static color or a combination of static colors, do the following: 1. Press <MENU> repeatedly until Static shows on the display. 2. Press <ENTER>. -
Page 16: Automatic Programs
1. Press <MENU> repeatedly until D-Fi Setting shows on the display. 2. Press <ENTER>. To activate or deactivate the D-Fi mode on the Freedom Par T6, follow the instructions below: 1. Access the D-Fi Setting menu to select the D-Fi On/Off option. -
Page 17: Rf Setting
Operation RF Setting To set how the Freedom Par T6 will receive RF signal and work with RF remotes, do the following: 1. Press <MENU> repeatedly until RF Setting shows on the display. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to select from the following: Link (to link the product to a single RF remote), Public (to allow the fixture to respond to all RF signals), Group (to set which group of fixture the RFC/RFC-XL remote will control), or Off (to turn off RF reception). -
Page 18: Factory Reset
RFC-XL Remote Control The Freedom Par T6 can be operated with an RFC remote or an RFC-XL remote (sold separately). To enable RF control, follow the instructions below: Press <MENU>... -
Page 19: Rfc-Xl Remote Control Operation
The RFC and RFC-XL remotes will not respond to any inputs when Freeze or Black Out is activated. If the remote does not respond when a button is pressed, try pressing <FREEZE> or <BLACK OUT>. You may have inadvertently activated Freeze or Black Out. Freedom Par T6 User Manual Rev. 1... -
Page 20: Technical Specifications
1,876 lux Thermal Maximum External Temperature Cooling System 104 °F (40 °C) Convection Input/Output Channel Range D-Fi 3, 5, or 13 Ordering Product Name Item Code UPC Number Freedom Par T6 03032067 781462224158 Freedom Par T6 User Manual Rev. 1... -
Page 21: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Freedom Par T6 User Manual Rev. 1...
