Summary of Contents for Chauvet DJ Shocker P2

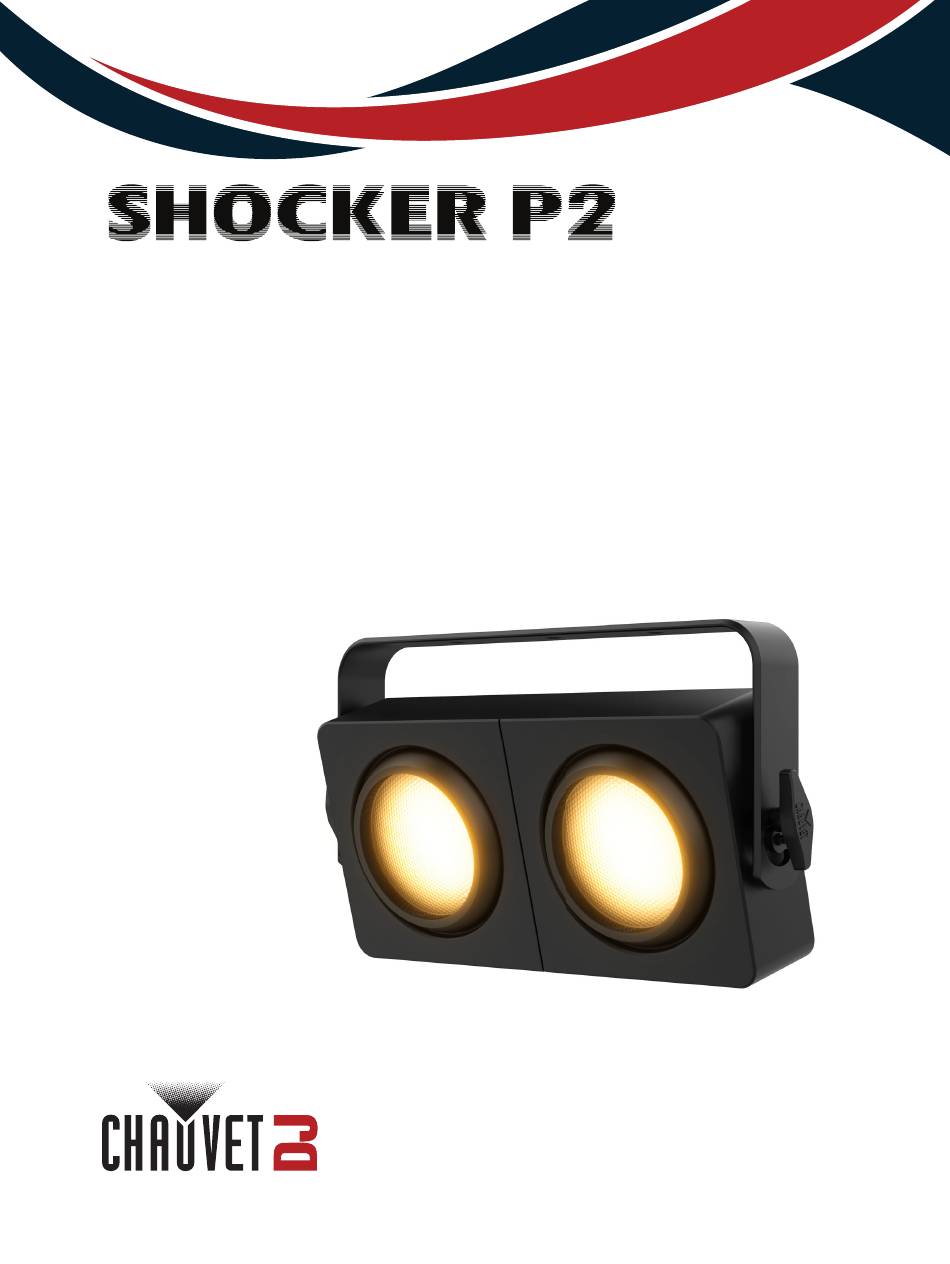

- Page 1 User Manual...
-
Page 2: Edition Notes
Edition Notes The Shocker P2 User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Shocker P2 as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and Shocker are registered trademarks or trademarks of Chauvet &... -
Page 3: Table Of Contents
Auto Program Dimmer ..................... 15 Auto Program Speed ....................16 Sound Show....................... Sound Sensitivity....................Dimmer Mode..................... White Balance ....................Back Light ......................Information ......................Temperature....................... Upgrade Firmware ..................... Factory Reset..................... Master/Slave Mode ..................Wired Master/Slave Mode .................. Shocker P2 User Manual Rev. 1... - Page 4 D-Fi USB Master/Slave Mode ................5. Maintenance..................Product Maintenance ..................6. Technical Specifications..............Contact Us....................Warranty & Returns..................Shocker P2 User Manual Rev. 1...
-
Page 5: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. Shocker P2 User Manual Rev. 1... -
Page 6: Safety Notes
♦ Set this product on a flammable surface. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Shocker P2 User Manual Rev. 1... -
Page 7: Introduction
LCD display Power in/out Menu buttons Fuse holder Safety cable loop WARNING! DO NOT plug anything other than a D-Fi USB into the USB type A port. Doing so may cause damage to the product. Shocker P2 User Manual Rev. 1... -
Page 8: Product Dimensions
Introduction Product Dimensions 15 in 380 mm 9.1 in 7.2 in 232mm 184 mm 14.3 in 364 mm 16.6 in 422 mm 3.7 in 94 mm Shocker P2 User Manual Rev. 1... -
Page 9: Setup
3. Setup AC Power The Shocker P2 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 10: Power Linking
Additional products It is possible to link up to 12 Shocker P2 products on 120 VAC or up to 22 products on 230 VAC. The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, consult with the local Chauvet distributor as power linking connectors and requirements may differ by country or region. -
Page 11: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Shocker P2 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming. -
Page 12: Operation
Press to scroll down the list of options or to find a lower value <ENTER> Press to activate a menu option or a selected value Menu Map Refer to the Shocker P2 product page on www.chauvetdj.com for the latest menu map and software. Main Menu... - Page 13 Slave1 Slave2 Sets which slave unit(s) will mimic the master Slave Mode unit Slave3 Slave4 Linear dimmer Dimmer 1 Dimmer Dimming curves: Dimmer 1 (fast) to Dimmer Mode Dimmer 2 3 (slow) Dimmer 3 Shocker P2 User Manual Rev. 1...
-
Page 14: Dmx Configuration
Chauvet website chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf. Personality and Starting Address The Shocker P2 uses up to 20 DMX channels in the 20 Ch DMX mode, which defines the highest configurable address to 493. When selecting a starting DMX address, always consider the number of DMX channels the DMX mode uses. -
Page 15: D-Fi Usb Connectivity
Operation D-Fi USB Connectivity The Shocker P2 is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D-Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 16: Dmx Charts
164 180 Auto program 10 181 197 Auto program 11 198 214 Auto program 12 215 231 Auto program 13 232 249 Auto program 14 250 255 Sound show (program 3) Shocker P2 User Manual Rev. 1... - Page 17 000 255 0–100% Color macro 000 255 See Color Macro chart Color temperature 000 255 See Color Temperature chart 000 005 No function Strobe 006 255 Strobe, slow to fast Shocker P2 User Manual Rev. 1...
-
Page 18: Color Macro
4000K 202 215 9000K 076 089 4500K 216 229 9500K 090 103 5000K 230 243 10000K 104 117 5600K 244 255 No function 118 131 6000K Shocker P2 User Manual Rev. 1... -
Page 19: Standalone Configuration
DMX signals from the controller. Color Macros Virtual Color Wheel To run the Shocker P2 with a virtual color wheel, follow the instructions below. 1. Press <MENU> repeatedly until Color Macros shows on the display. 2. Press <ENTER>. -
Page 20: Auto Program Speed
7. Use <UP> or <DOWN> to select a value, from 125–255. 8. Press <ENTER>. To set the Shocker P2 to factory default white setting, do the following: 1. Press <MENU> repeatedly until White Balance shows on the display. 2. Press <ENTER>. -
Page 21: Back Light
3. Use <UP> or <DOWN> to select Only this Fixture (selects an update file for this product, or shows “No such file!”), Multiple Fixture (Selects an update file for this and connected Shocker P2 products, or shows “No such file!”), or Other Fixture Type (selects an update file for other connected products, or shows “No such file!”). -
Page 22: Master/Slave Mode
D-Fi USB Master/Slave Mode The D-Fi USB allows a single Shocker P2 product (the “master”) to control the actions of one or more Shocker P2 products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in either standalone mode or with the footswitch, while the slave (receiver) products will be set to operate in slave mode. -
Page 23: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Shocker P2 User Manual Rev. 1... -
Page 24: Technical Specifications
104 °F (40 °C) Convection I/O Connector Channel Range 3-pin and 5-Pin XLR 4, 7, 12, or 20 Ch Ordering Product Name Item Code UPC Number Shocker P2 03032302 781462226503 UL 1573 CSA C22.2 No. 166 E113093 Shocker P2 User Manual Rev. 1... -
Page 25: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Shocker P2 User Manual Rev. 1...
