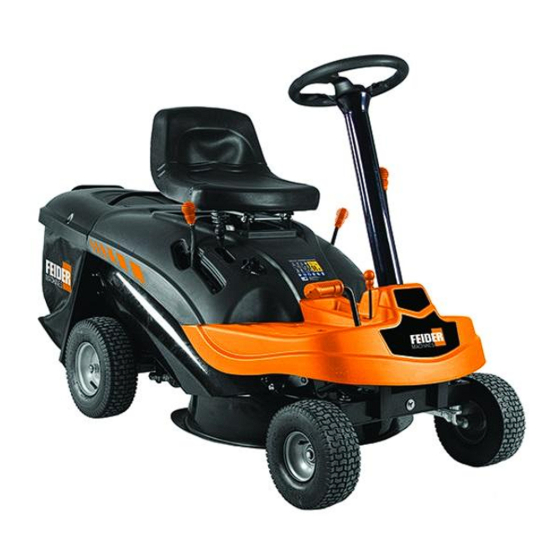

- Page 1 ORIGINAL INSTRUCTIONS RIDE-ON LAWN MOWER FRT6224 USER GUIDE CAUTION: Read this manual before using this machine!
- Page 2 Dear Customer, Thank you for having chosen one of our products. We hope that you will get complete satisfaction from using your new machine and that it will fully meet all your expectations. This manual has been compiled in order that you may get to know your machine and to be able to use it safely and efficiently.
- Page 3 1. SAFETY ........................4 2. IDENTIFICATION OF THE MACHINE AND COMPONENTS........9 3. UNPACKING AND ASSEMBLY .................10 4. CONTROLS AND INSTRUMENTS ................13 5. HOW TO USE THE MACHINE ..................16 6. MAINTENANCE ......................27 7. ENVIRONMENTAL PROTECTION ................30 8. TROUBLESHOOTING....................31 9. ACCESSORIES ON REQUEST ................. 33 10.
-
Page 4: How To Read The Manual
1.1 HOW TO READ THE MANUAL This manual describes various versions of the machine, which mainly differ in: – type of transmission: with either mechanical gear change or continuous speed converter. – the inclusion of components or accessories which may not be available in some areas; –... -
Page 5: Operation
A) TRAINING 1) Read the instructions carefully. Be familiar with the controls and how to use the equipment properly. 2) Never let children or people unfamiliar with these instructions use the machine. Local regulations can restrict the age of the user. 3) Never mow while people, especially children, or pets are nearby. -
Page 6: Maintenance And Storage
2) Mow only in daylight or good artificial light. 3) Before starting the engine, disengage the blades and shift into neutral. 4) Do not use on slopes of more than 10° (17%). 5) Remember there is no such thing as a “safe” slope. Travelling on grass slopes requires particular care. - Page 7 7) If the fuel tank has to be drained, this should be done outdoors. 8) When the machine is to be stored or left unattended, lower the cutting deck. Improper maintenance can reduce life of the tool and create accident and damages. Always bring maintenance.
-
Page 8: Safety Labels
It is suitable only for private use in a garden or plot. Lawnmowers designed for private plots or gardens are those used for the maintenance of grassy areas and private lawns and should not be used in public areas, parks, sports, agricultural or forest areas. 1.3 SAFETY LABELS Your machine must be used with care. -
Page 9: Identification Of The Machine
Danger! Do not near the operational machine WARNING! Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet. Danger ! Electrical shock ! This symbol indicates the surface is very hot and not touching Guaranteed sound power level 2.1 IDENTIFICATION OF THE MACHINE The identification label located under the seat has the essential... -
Page 10: Fitting The Steering Wheel
18. Labels for regulations and safety: give reminders on the main provisions for working safely, each of which is explained in chapter 1. 19. Engine cover: for access to the engine For storage and transport purposes, some components of the machine are not installed in the factory and have to be assembled after unpacking. -
Page 11: Fitting The Seat
3.3 FITTING THE SEAT Fit the seat (1) onto the plate (2) using the screws (3) 3.4 FITTING THE BLADE ENGAGEMENT LEVER Fit the end of the lever (1) on the projecting part of the pin (2) and fix it all by tightening the screw (3) and nut (4) 3.5 CONNECTING THE BATTERY 1. - Page 12 3.6 FITTING THE GRASS-CATCHER Identify the screws to be used by following the drawing that shows them in their actual Size Fit the two tie rods (1) and fasten them by using the screws (2) 3.7 FITTING THE DEFLECTOR...
-
Page 13: Steering Wheel
4.6.1 4.11 4.12 4.1 STEERING WHEEL Turns the front wheels. 4.2 CLUTCH / BRAKE PEDAL This pedal has a double function: during the first part of its travel it acts as a clutch, engaging and disengaging drive to the wheels, and in the second part it works the brake. Do not keep the pedal half way of clutch engagement or disengagement, as this can cause overheating and damage the... -
Page 14: Parking Brake Lever
4.3 PARKING BRAKE LEVER This lever stops the machine from moving when it has been parked. There are two positions: 4.3 PARKING BRAKE LEVER This lever stops the machine from moving when it has been parked. There are two positions: –The brake is engaged by pressing the pedal (☛4.2) right down and moving the lever to position «B». -
Page 15: Key Ignition Switch
4.6 LEVER ENGAGEMENT AND BRAKE OF BLADE The lever has two positions, as shown on the plate: –If the blade is engaged when safety conditions have not been complied with, the engine shuts down and cannot be restarted ( ☛5.2). –... -
Page 16: Safety Recommendations
«CHOKE» (if fitted) = cold starting «FAST» for maximum engine speed «SLOW» for minimum engine speed –The «CHOKE» position (if fitted) enriches the mixture so must only be used for the necessary time for cold starting. – When moving from one area to another, put the lever in a position between «SLOW» and «FAST». -
Page 17: Why The Safety Devices Cut In
his own safety and that of others, particularly on slopes or rough, slippery and unstable ground. Do not leave the machine stopped on high grass with the engine running to avoid the risk of starting a fire. Always lower the speed when changing direction, especially on tight turns. -
Page 18: Tire Pressure
5.3.2 Tire pressure Having the correct tire pressure is essential for ensuring that the cutting deck is perfectly horizontal and thus mows evenly. 1. Unscrew the valve caps; 2. Connect a compressed air line with a gauge to the valves and adjust the pressure to the indicated values. - Page 19 To refuel (to be done when the machine has stopped): 1. unscrew the plug (4) from the tank located behind the seat; 2. refuel using a funnel, but do not completely fill the tank. The tank's capacity is about 1.1 liters; 3.
-
Page 20: Using The Machine
5.4 USING THE MACHINE 5.4.1 Starting the engine all starting operations have to be effected in an open or well-ventilated area! ALWAYS REMEMBER THAT EXHAUST GASES ARE TOXIC! To start the engine: 1. sit on the seat and press the brake pedal right down(☛4.3); 2. -
Page 21: Starting And Moving Without Mowing
5.4.2 Starting and moving without mowing this machine has not been approved for use on public roads. It has to be used (as indicated by the Highway Code) in private areas closed to traffic. When moving the machine, the blade must be disengaged and the cutting deck put at its highest position. -
Page 22: Grass Cutting
5.4.5 Grass cutting The machine is not designed for heavy duty use or for mowing large quantities of grass. The blade is engaged by means of a clutch device. To avoid damage or premature wear of the friction elements, strictly observe the following instructions. -
Page 23: Emptying The Grass-Catcher
5.4.6 Emptying the grass-catcher The grass-catcher is full when the grass cuttings remain on the lawn. If you continue mowing with the grass-catcher full, it may block the collector channel. To empty the grass-catcher: 1. lower the engine speed; 2. go into neutral (N) (☛4.4) and stop the machine’s forward movement;... - Page 24 To keep the battery charged, do not leave the key in the «ON» position when the engine is not running. 5.4.10 cleaning the machine After each mowing, clean the outside of the machine, empty the grass-catcher and shake it to remove residual grass and earth. Always empty the grass-catcher and do not leave containers full of cut grass inside a room.
-
Page 25: Using On Slopes
5.4.11 Storage and inactivity for long periods If the machine is likely to be unused for a long period (more than 1 month),，follow the instructions in the engine manual. Empty the fuel tank by removing the screw situated at the bottom of the fuel filter (1), and collects the fuel in a suitable container. -
Page 26: Advice On How To Obtain A Good Cut
SLOW DOWN BEFORE CHANGING DIRECTION ON SLOPES. Never use reverse to reduce speed going downhill: you may lose control of the machine, particularly on slippery surfaces. Never ride the machine on slopes in neutral or with the clutch out! Always engage a low gear and the parking brake before leaving the machine at a stopped and unattended. - Page 27 4. The engine must run at full speed, both to ensure a sharp cut of the grass and to get the necessary thrust to push the cuttings through the collector channel. 5. The frequency of mowing should be in relation to the rate of growth of the grass, which should not be left to grow too much between one cut and the next.
-
Page 28: Routine Maintenance
– the brake; – the engagement and stop of the blade; – the drive engagement in forward and in reverse gears. 6.2 ROUTINE MAINTENANCE 6.2.1 Engine Follow all the instructions in the engine manual. To drain the engine oil: 1. unscrew the topping up cap (1); 2. -
Page 29: Interventions On The Machine
Recharging must be done using a battery charger at constant voltage. Other recharging systems can irreversibly damage the battery. The machine comes with a connector (1) for recharging, near the battery, to be connected to the connector for the battery-charger supplied (if included) or available on request (☛ 9.2). -
Page 30: Replacing A Fuse
6.3.3 Replacing and repairing tires All puncture repairs or replacements will have to be carried out by a tire repair expert in accordance with the methods for the kind of tire used. 6.3.4 Replacing a fuse The electric system and the electronic card are protected by a fuse. When it blows the machine stops, so in this case: 1. - Page 31 – Scrupulously comply with local regulations and provisions for the disposal of waste – Scrupulously comply with local regulations and provisions for the disposal of oils, petrol, damaged parts or any elements which have a strong impact on the environment; this waste must not be disposed of as normal waste, it must be separated and taken to specified waste disposal centers where the material will be recycled.
- Page 32 3. The engine stops Electronic card blocked due to: Turn the key to pos. «OFF» and look for cause of the problem: –earth connections of the micros witches –check connections disconnected –flat battery –recharge battery (☛6.2.3) –badly connected battery (poor contact) –check connections (☛3.5) –engine badly earthed –check engine earth connection...
-
Page 33: Battery Charger
Do not take on complicated repair work if you don't knowledge. The warranty is have the necessary equipment or the technical automatically voided and the manufacturer is not held responsible if repairs are done badly. 1. BATTERY-CHARGER Battery charger charges the battery when the machine is in storage. Note: The motor can be started manual (without battery) and the Battery will be charged automatically if the motor is working. - Page 34 Maximum noise and vibration levels Operator ear noise pressure level (according to regulation ISO 5395-1:2013, Annex F) ......80.4dB(A) – Measurement uncertainty (2000/14/EC) ...........3.0dB(A) Measured acoustic output level (according to directive ISO 5395-1:2013, Annex F) ….....…95.4dB(A) – Measurement uncertainty (2000/14/EC) ...........1.23 dB(A) Guaranteed acoustic output level (according to directive ISO 5395-1:2013, Annex F) …......98 dB(A) Vibration level...
- Page 35 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 declares that the machines: RIDE-ON LAWN MOWER FRT6224 20221215155-20221215202 Serial No.: the people name holding the technical file：Mr. Olivier Patriarca...
-
Page 36: Warranty
1 2 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. - Page 37 1 3 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
-
Page 38: Warranty Exclusions
14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 39 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Made in PRC 2022...
