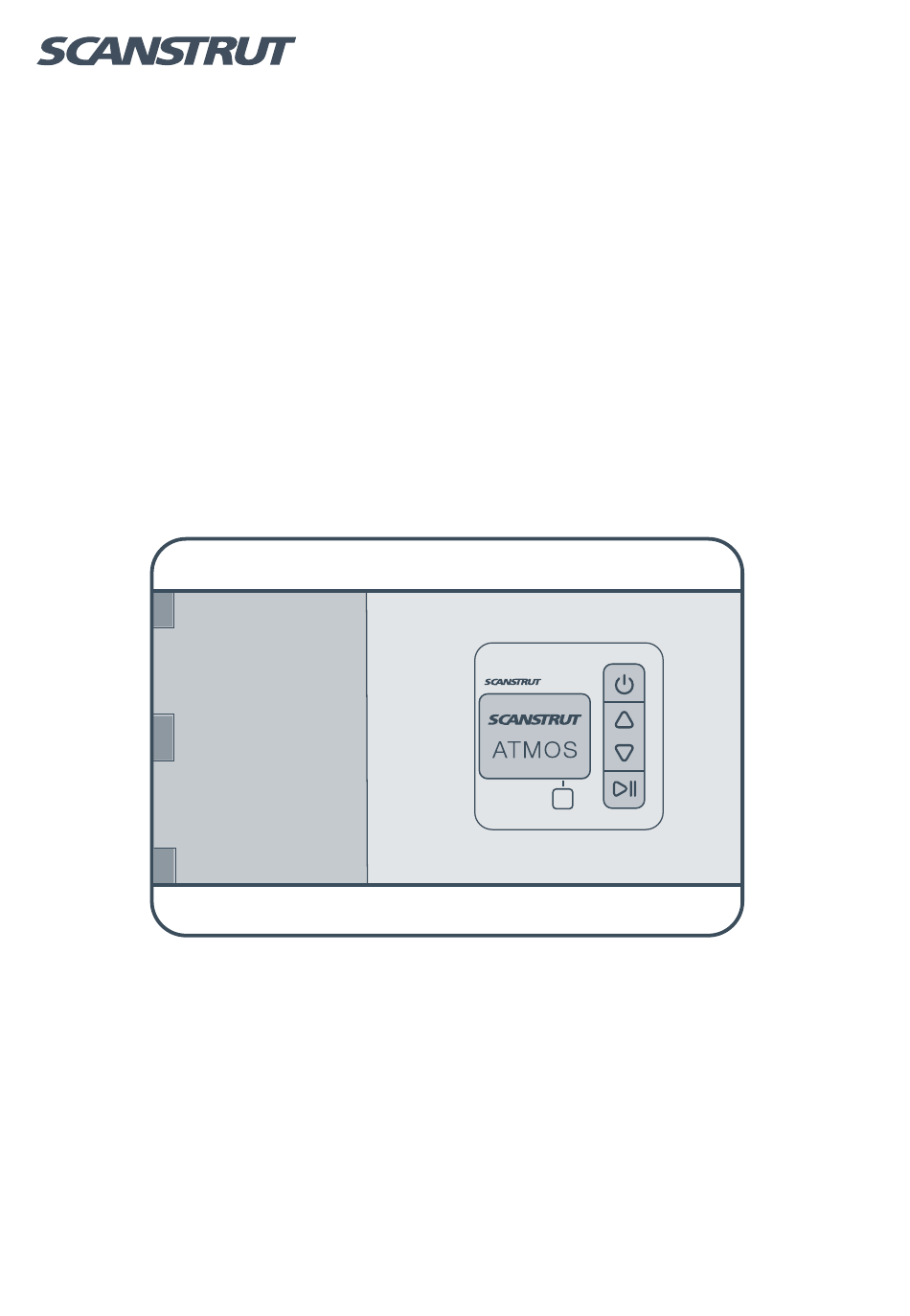

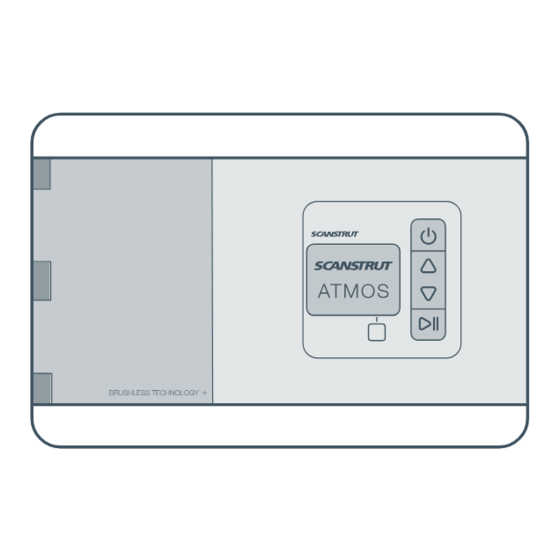

- Page 1 AT M O S BRUSHLESS TECHNOLOGY USER MANUAL Patent Pending. SC-AOB-A2 www.scanstrut.com PCT/US23/25780...
- Page 2 Register your or scan ATMOS ownership. please visit: scanstrut.com/air/atmos/register For translations or scan of this manual. please visit: scanstrut.com/air/atmos/manuals-v2...
-
Page 3: Table Of Contents
Table of Contents Safety Information Product Contents Technical Information Cutting Template Mounting Guide Location Requirements Tools Required Installion Instructions Power connections Screen Display Button Functions Operating Instructions Inflate Steps Deflate Steps Door Operation Diagnostics Key Technical Data Troubleshooting Rectifying Faults Care Instructions Frequently Asked Questions Warranty Information... -
Page 4: Safety Information
• Do not submerge the hose in any liquid. • Keep the ATMOS door closed when not in use. • When installing this product ensure the power source is adequately protected by means of a suitably-rated fuse. The product should be powered by a battery with short-circuit protection. - Page 5 Warning: Switch Off Power Supply Ensure the vessel/vehicle power supply is switched OFF before starting to install this product. Do NOT connect or disconnect ATMOS with the power switched on. Warning: Use 12V DC Power supply ONLY This product must ONLY be connected to a 12V DC power source.
-
Page 6: Product Contents
Product Contents Part List Description ATMOS Snap Covers Suncover Hose Hose Bag Quick Start Guide Mounting Template Fixings (see tools required) Valve Holder Product Contents... - Page 7 Valve Connector Types Rubber seals are preloaded onto valves and can be interchanged between different valve types to achieve an airtight seal. Product Contents...
-
Page 8: Technical Information
Technical Information Sun cover 17mm (0.67") 13mm (0.51") 110mm (4.33") BRUSHLESS TECHNOLOGY 88mm (3.46") 297mm (11.69") 385mm (15.16") Sun cover 203mm (8.0") Inflate INFLATE DEFLATE Deflate Suncover 308mm (12.13") Technical Information... -
Page 9: Cutting Template
Cutting Template Included within the box, you will find the cutting template necessary for your ATMOS installation. Alternatively, you can access the template on our website (www.scanstrut.com). To further streamline the process, we offer the option to download the DXF file by simply scanning the QR code provided below. -
Page 10: Mounting Guide
+10° -30° ATMOS must ONLY be installted at an angle ranging from +10º to -30º from vertical. This is essential to prevent the accumulation of water in the door chamber or inside the pump housing. -
Page 11: Location Requirements
Location Requirements To allow door to open fully, carefully chose an installation location with sufficient clearance. This will ensure that the product can be used with ease and convenience. < 90° Door Opening Makes hose use very difficult. 180° Door Opening. >15mm (0.59") 190°... -
Page 12: Tools Required
Tools Required Tools Pencil Pozi Screwdriver Drill Bit (see table) (Size: PZ1) ø44mm (1-3/4”) Jigsaw Power Drill Hole Saw Drill Size Table Material Drill Fixing Soft Material 2mm (5/64") e.g. plywood No.4 Screw (Included) Hard Material 2.5mm (3/32") e.g Fiberglass, acrylic, hardwood. -
Page 13: Installion Instructions
Installation Instructions Drill pilot holes (see table). Mark cutting profile. Hole Saw corners. Saw between corners. Screw ATMOS in place. Fix covers in place. Installion Instructions | 13... -
Page 14: Power Connections
Power Connections Min Bend Radius BRUSHLESS TECHNOLOGY Cable Information Cable AWG ø 8.75 ± 0.25mm Cable Jacket Cable Cross Sectional Area 2x 1.5mm Input Voltage 11.5-14.5V Max Current Draw 12A (140W) Cable Length 500mm (20") Min Bend Radius (R) 54mm (2.12") Positive Cable (+) Negative Cable (-) BLACK... -
Page 15: Screen Display
Screen Display Display Item Description Pressure / warning ATMOS features an LCD display with a wide viewing display angle, ensuring a clear view of read-out. ATMOS features a Live Voltage readout, enabling Voltage display you to conveniently monitor your battery level. -
Page 16: Button Functions
Button Functions Button Function Power On / Off Increase Target Pressure Decrease Target Pressure Confirm / Start / Stop PSI / BAR Selector Button Functions | 16... -
Page 17: Operating Instructions
NOTICE. • If not getting to target pressure, check connector seal connection with inflatable. • To pause ATMOS inflatating or deflating, press confirm / start / stop button. • Please find more information on our troubleshooting page 24. Operating Instructions... -
Page 18: Inflate Steps
Press and hold INFLATE port. adaptor for inflatable. to turn on. INFLATE DEFLATE Check recommended Select PSI or BAR Set target pressure. inflatable pressure. and confirm. Confirm INFLATE pressure. Start INFLATING! ATMOS stops when target pressure reached. | 18 Inflate Steps... -
Page 19: Deflate Steps
How to Deflate Connect hose to Press and hold to turn on. Attach correct hose DEFLATE port. adaptor for inflatable. INFLATE DEFLATE Press to confirm DEFLATE. Select PSI or BAR Confirm low pressure and confirm. at 1.0 PSI/ 0.7 BAR. Start DEFLATING! Need more information? Scan QR code. -
Page 20: Door Operation
NOTICE. When not in use, remove the hose from ATMOS and inflatable, then store it in the net storage bag provided in a cool, dry place. Pressure Conversion 0.068... -
Page 21: Diagnostics
Diagnostics Name of Description Symbol Action Fault of Fault Input voltage is too Ensure voltage is Input Voltage high or low. between 11.5-14.5V. Thermal shut off Wait for product to Over reached, internal return to operating Temperature temperature is too temperature. -
Page 22: Key Technical Data
Key Technical Data Performance Time to inflate 10ft 6” SUP to 20 PSI 6 to 8 mins > 3 mins ≈ Time to inflate towable to 1.5 PSI > 1 min ≈ Time to deflate 10ft 6” SUP > 1 min ≈ Time to deflate towable Time to inflate a swim platform to 5 >... - Page 23 Min cavity depth 110mm (4.33") Installation angle? + 10º to - 30º from vertical Service? No end-user serviceable parts Yes, ATMOS SC-AOB-A2 meets the ISO 8846 and SAE Ignition protected? J1171 test standard for Ignition Protection. Environment Reverse polarity, short-circuit, under voltage, overload, over Protection temp.
-
Page 24: Troubleshooting
Inflatable not connectors. reaching required Air leak pressure Check inflatable for punctures. Check ATMOS hose for punctures. Check valve seals are present in each end of the hose. Confirm Power supply is Current ATMOS does not stable, ensure ATMOS inflatable Input Voltage too low. -
Page 25: Rectifying Faults
Rectifying Faults In the rare event that you encounter a fault with your ATMOS that cannot be resolved through troubleshooting or the instructions provided in this manual, we recommend getting in touch with the authorized reseller or dealer where you purchased ATMOS. -
Page 26: Care Instructions
Care Instructions Suncovers To protect your product from the harmful effects of ultraviolet (UV) light, always use the supplied suncover when the product is not in use. However, it is important to remove the suncover when traveling at high speeds to prevent potential loss. Routine Checks •... -
Page 27: Frequently Asked Questions
A. ATMOS is supplied with a 2.5m/8ft hose. Q. Is ATMOS waterproof? A. Yes, ATMOS is IPX6 waterproof with the door closed. It has been designed to use onboard a boat or RV. Q. What power supply does ATMOS require? A. -
Page 28: Warranty Information
SCANSTRUT INC. LIMITED WARRANTY This Limited Warranty of Product applies to each product category Scanstrut Inc., a Private limited Company with principal address as defined and available on Scanstrut website (https://www. at Scanstrut Inc., a Delaware Corporation with principal address scanstrut.com/) (the “Product Category”) for the periods defined in... - Page 29 INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND SCANSTRUT LTD. LIMITED WARRANTY FITNESS FOR A PARTICULAR PURPOSE. Scanstrut Ltd., a Private limited Company with principal address Implied warranties in jurisdictions where they may not be disclaimed at Dart Business Park, Clyst St George, Exeter, Devon, UK (the shall be in effect only for the duration of the express warranty set “SELLER”), warrants that the equipment and equipment parts...
- Page 30 Scanstrut website (https://www. forth herein. scanstrut.com/) (the “Product Category”) for the periods defined in the table below If BUYER has a claim under this Limited Warranty or under any...
-
Page 31: Compliance Information
To the best of our knowledge, the information in this document was correct at the time it was produced. However, Scanstrut cannot accept liability for any inaccuracies or omissions it may contain. In addition, our policy of continuous product improvement may change specifications without notice. As a result, Scanstrut cannot accept liability for any differences between the product and this document. - Page 32 Don’t forget to tag us @scanstrut to showcase how you’re using ATMOS. Installation Date Copyright ©2023 Scanstrut Ltd. All rights reserved. No part of this material may be copied, translated or transmitted (in any medium) without the prior written permission of Scanstrut Ltd and Scanstrut Inc.
