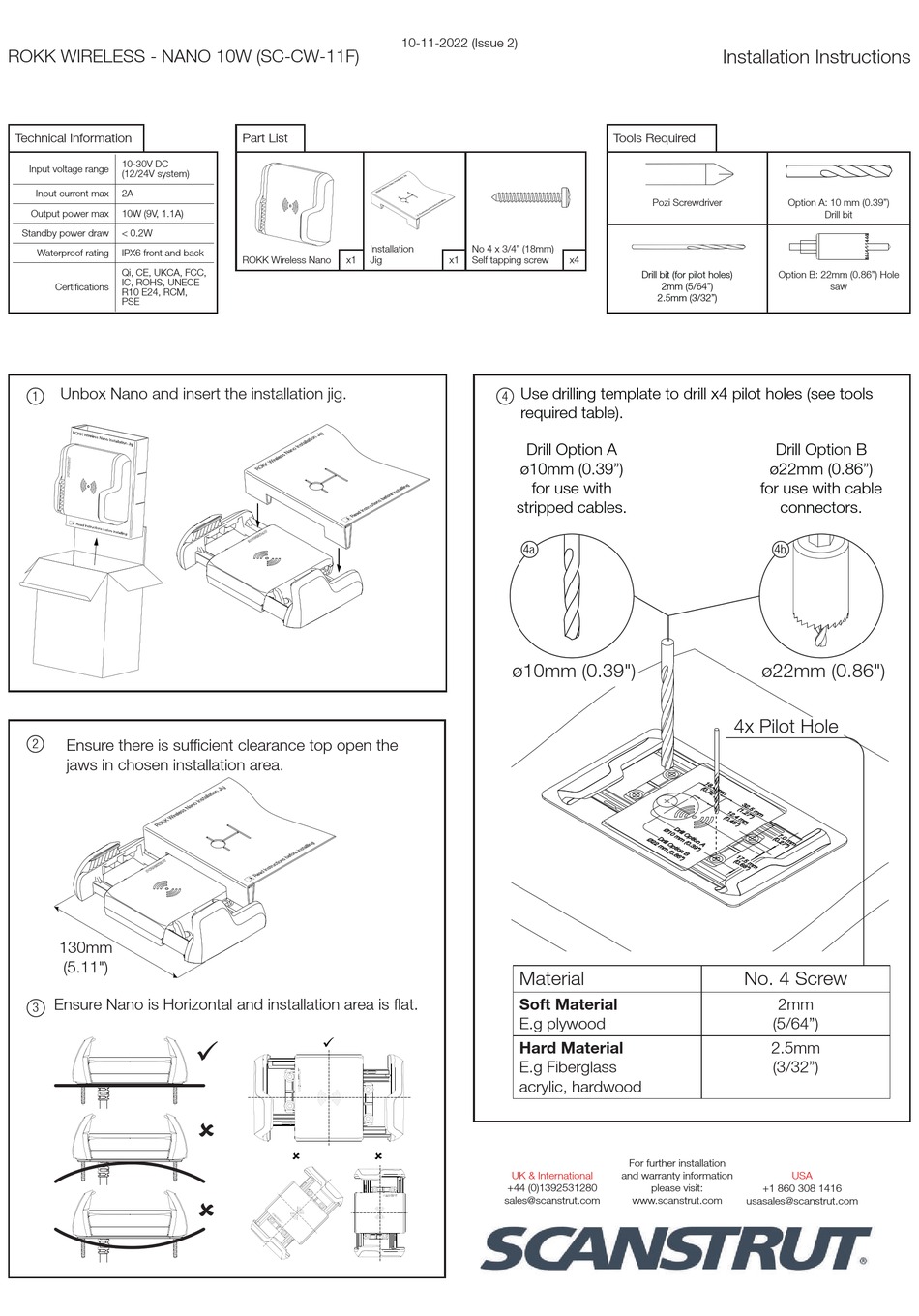

Scanstrut ROKK Wireless Nano Installation Instructions

ROKK WIRELESS - NANO 10W (SC-CW-11F)
Technical Information
10-30V DC
Input voltage range
(12/24V system)
Input current max 2A
Output power max 10W (9V, 1.1A)
Standby power draw < 0.2W
Waterproof rating IPX6 front and back
Qi, CE, UKCA, FCC,
IC, ROHS, UNECE
Certifications
R10 E24, RCM,
PSE
Unbox Nano and insert the installation jig.
1
Ensure there is sufficient clearance top open the
2
jaws in chosen installation area.
130mm
(5.11")
Ensure Nano is Horizontal and installation area is flat.
3
Part List
ROKK Wireless Nano x1





10-11-2022 (Issue 2)
Installation No 4 x 3/4" (18mm)
Jig x1 Self tapping screw
Use drilling template to drill x4 pilot holes (see tools
4
required table).
Drill Option A
ø10mm (0.39")
for use with
stripped cables.
4a
ø10mm (0.39")
Material
Soft Material
E.g plywood
Hard Material
E.g Fiberglass
acrylic, hardwood

UK & International
+44 (0)1392531280
sales@scanstrut.com
Installation Instructions
Tools Required
Pozi Screwdriver
x4
Drill bit (for pilot holes)
2mm (5/64")
2.5mm (3/32")
4x Pilot Hole
For further installation
and warranty information
please visit:
www.scanstrut.com
Option A: 10 mm (0.39")
Drill bit
Option B: 22mm (0.86") Hole
saw
Drill Option B
ø22mm (0.86")
for use with cable
connectors.
4b
ø22mm (0.86")
No. 4 Screw
2mm
(5/64")
2.5mm
(3/32")
USA
+1 860 308 1416
usasales@scanstrut.com
