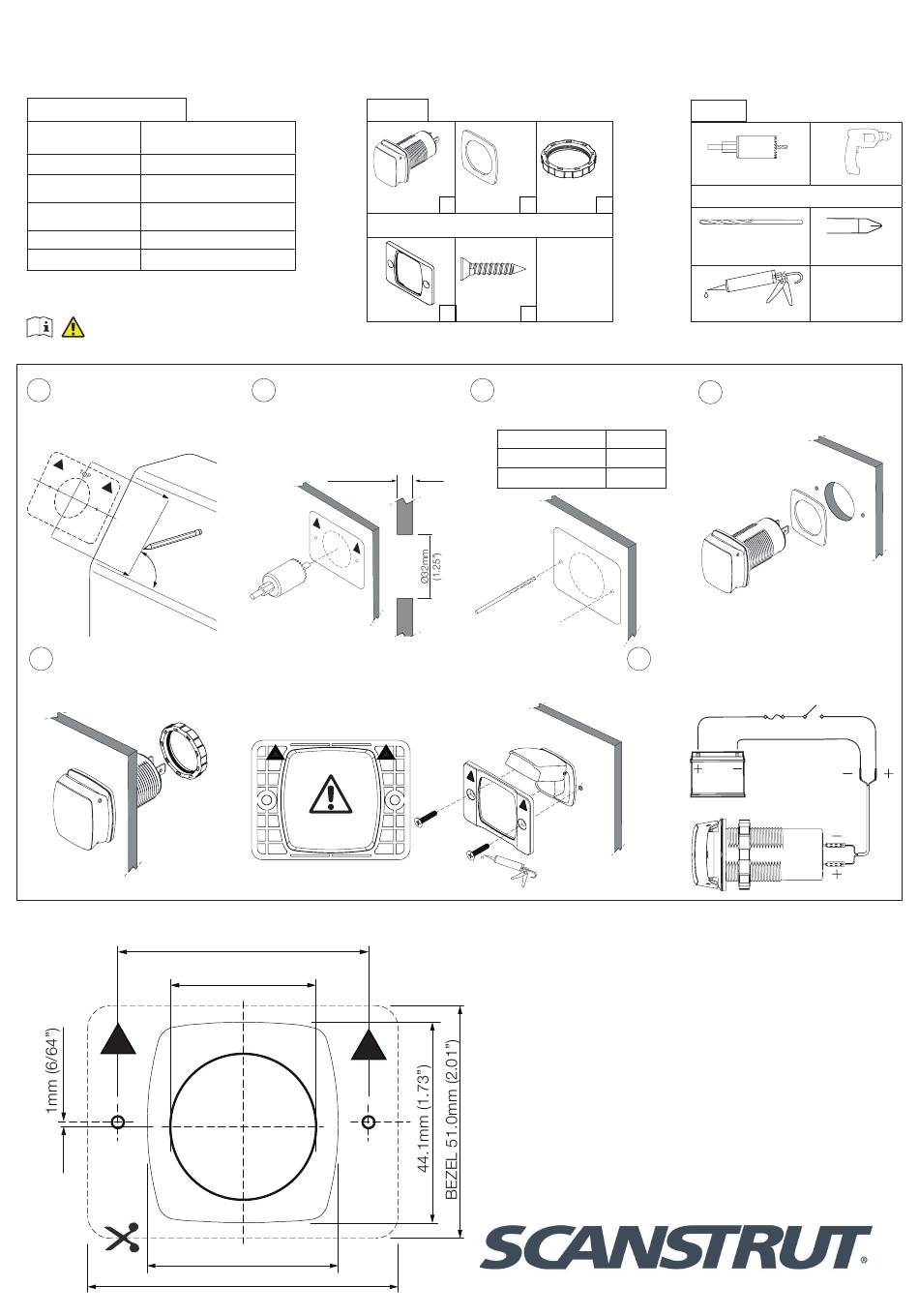

Scanstrut FLIP PRO MAX-DUAL Installation Instructions

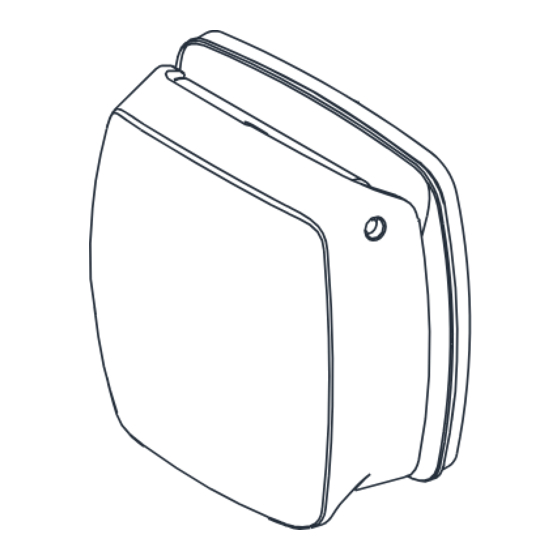

FLIP PRO MAX- DUAL USB-C CHARGER - (SC-USB-F3)

Technical information:

Input voltage
12/24V System
Input current Max
Output Type C
5V⎓3A, 9V⎓3A, 12V⎓3A MAX
(12V System)
Output Type C 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A,
(24V System)
Standby draw
Waterproof rating
For latest tech info visit:
www.scanstrut.com/USB
READ IMPORTANT SAFETY INFORMATION BEFORE
INSTALLING.
1
FRONT INSTALL ONLY
Draw a centre line to align template,
ensure line is square on surface and
correct orientation.
90°
5
REAR INSTALL ONLY
Tighten lock ring onto product until secure.

Drilling template:

Warning CHECK SCALE 1:1
ø32.0mm (ø1.26 ")
BEZEL 68.1mm (2.68")
10-32V DC
6 A
20V⎓3A MAX
<0.1W
IPX4 Front
2
Use drilling template to drill ø32mm
(1 1/4") hole.
3mm (0.11") Min
25mm (1") Max
FRONT INSTALL ONLY
Apply silicone seal on fixings and pilot holes. Place the
front fit bezel over charger and fix bezel in place. Make
sure the orientation bezel is correct.
TOP
55.0mm (2.17")
TOP
42.0mm (1.65")
04-04-2023 (Issue 1)

Parts list:

12V Socket Gasket Lock Ring
x1 x1
Front install only
No.6x20mm
Front Fit Bezel Screws
x1
x4
3
FRONT INSTALL ONLY
Drill 2 pilot holes for front fit bezel.
Pilot Hole Size
Material
Soft Material e.g Plywood
Hard Material e.g Fiberglass
UK & International
+44 (0)1392531280
sales@scanstrut.com
Installation Instructions

Tool list:

32mm (1 1/4") Hole saw
Front install only
x1
Drill bit 2.5mm (3/32") or
3mm (1/8")
Silicone
4 Feed Barrel through the gasket and
hole.
No. 6 Screw
2.5mm (3/32")
3mm (1/8")
6
Connect to 12/24V supply, ensuring a waterproof
connection. Fuse and select cable diameter according to
input voltage and current for your specific installation.
For further installation
and warranty information
please visit: +1 860 308 1416
www.scanstrut.com usasales@scanstrut.com
