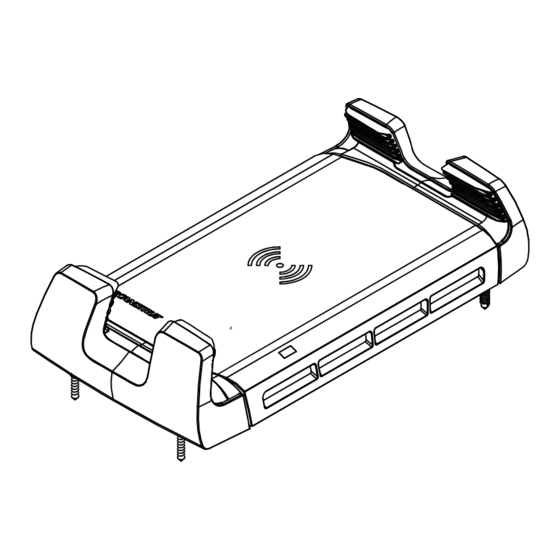

ROKK Wireless - Active (SC-CW-04E)
Technical information.
Input voltage range :
Input current max:
Output power:
Standby current draw:
Waterproof rating:
Certifications:
For latest tech info visit: www.scanstrut.com/rokk-wireless
READ IMPORTANT SAFETY INFORMATION
LEAFLET BEFORE INSTALLING.
Parts list.
ROKK Wireless
Active
Installation jig
No 4
No. 4 x 3/4" (18mm)
self-tapping screw
DRILLING TEMPLATE
SCALE 1:1
37mm
(1.5")
31mm
(1.2")
10-30V DC (12/24V system)
1.5A
5W (5V, 1A)
< 0.03W
IPX6 front and back
Qi, CE, FCC, ROHS,
UNECE R10 E24
Tools required.
Pozi screwdriver
6mm (0.24") drill bit
x1
Drill bit (for pilot hole)
Material
No. 4 Screw
Soft Material
2mm
E.g plywood
(5/64")
x1
Hard Material
2.5mm
E.g Fiberglass
(3/32")
acrylic, hardwood
x4
37mm
(1.5")

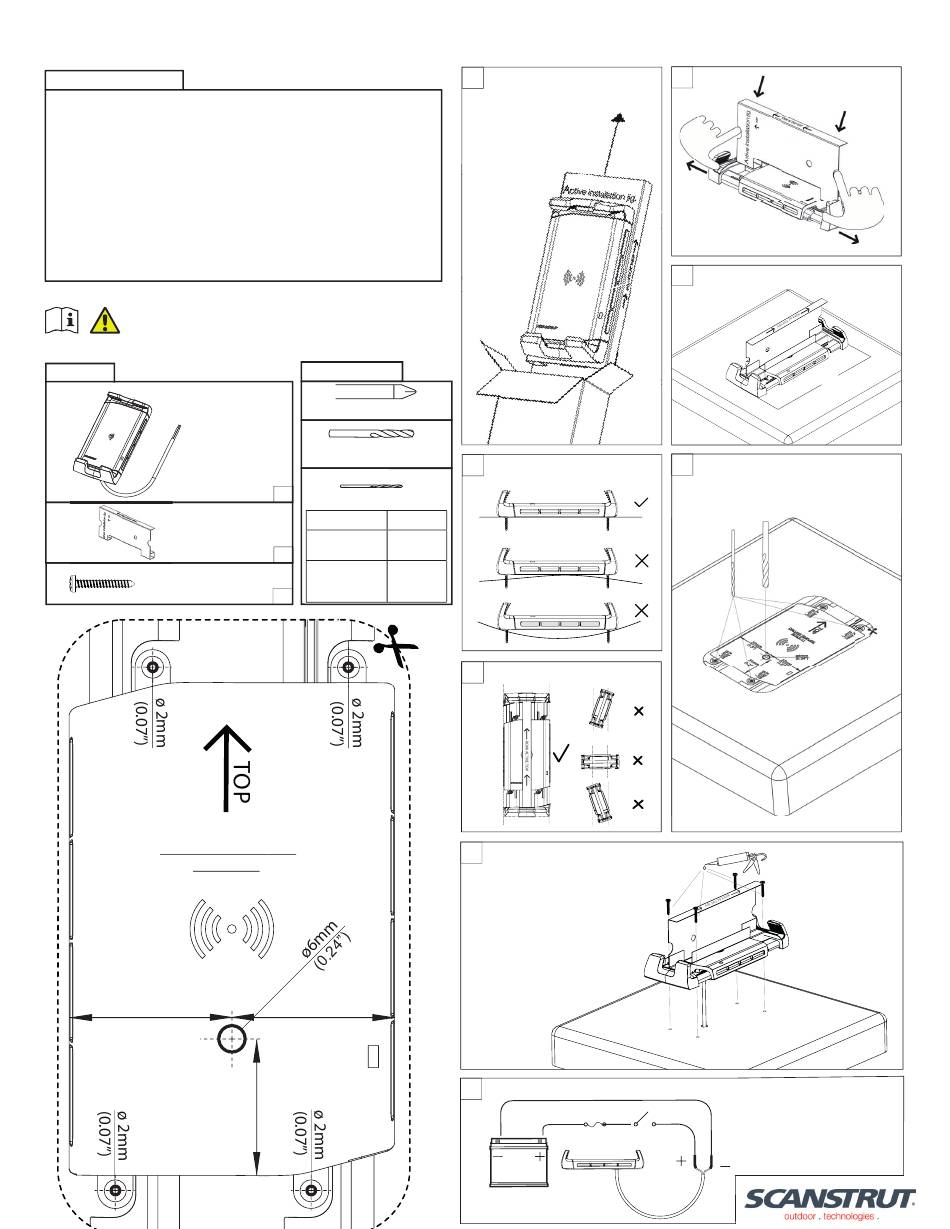

26-06-2020 (Issue 7)
1
Retain installation jig to use in step 2.
4a
Ensure installation area is flat.
4b
Ensure ROKK Active is vertical.
6
- Feed cable through the hole.
- Apply sealant to x4 screws.
- Screw product in place.
- Remove installation jig.
7
Installation instructions.
2
Insert the installation jig.
Insert the installation jig.
3
Ensure there is sufficient clearance in chosen
installation area.
205mm
(8")
5
Use drilling template to drill ø6mm (0.24")
cable hole and x4 pilot holes
(see tools required table).
Connect wires to 12/24V supply,
ensuring a waterproof connection. Fuse
according to input voltage and current.
