Scanstrut SC-CW-09F Installation Instructions

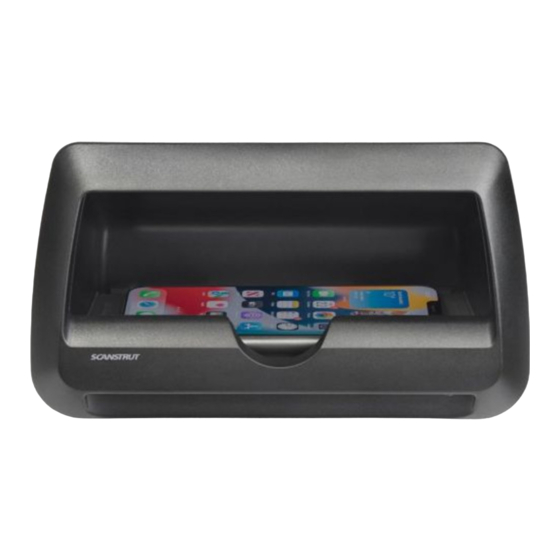

Cove. 10W (SC-CW-9F)
Cove with LED. 10W (SC-CW-10F)
Technical Information
Max phone size: 176mm (6.92") x 92mm (3.62")
(Including case)
Wireless Charger.
SC-CW-09F and SC-CW-10F
10-30V DC
Input voltage range
(12/24V system)
Input current max 2A
Output power 10W (9.1V, 1A)
Standby power draw < 0.2W
Waterproof rating
SC-CW-09F
IPX6
SC-CW-10F IPX5
Qi, CE, FCC,
ROHS, C-Tick,
Certification
UNECE R10 E24,
UKCA, IC, PSE
Tools Required
Philips No. 2
screwdriver
Drill bits
2.5mm (3/32")
Silicone Sealant
3mm (1/8")
READ THE IMPORTANT INFORMATION LEAFLET BEFORE INSTALLING
1
Choose a mounting location, ensuring there is adequate
space behind the mounting surface.
17mm
(0.67")
3-18mm
(0.12- 0.71)
Max panel thinkness
3
Screw wireless charger into place.
LED.
SC-CW-10F Only
Input voltage 12V DC 9-15V
Input current max 0.2A
Standby power draw 0.0W
TYPE RGB
Input 12 or 24V
Optional Driver
Output 12V
Specification
As required for
Power
LED harness
Jigsaw
Powerdrill
Drill bits
5mm (3/16")
Optional
100.8mm
(4")
**Caution**
Do not over tighten.
09-06-2022 Issue 2
Parts List
Pocket
SC-CW-09F
SC-CW-10F with LED x1
Front bezel
x1
Extras Not Supplied
LED Driver
Optional
2
Cut the mounting hole and drill pilot holes using the
paper template.
4
Optional Drain Pipe:
Carefully drill drain holes using a 5mm (3/16") drill bit. Attach
drain pipe 8mm (5/16") ID pipe, not included.

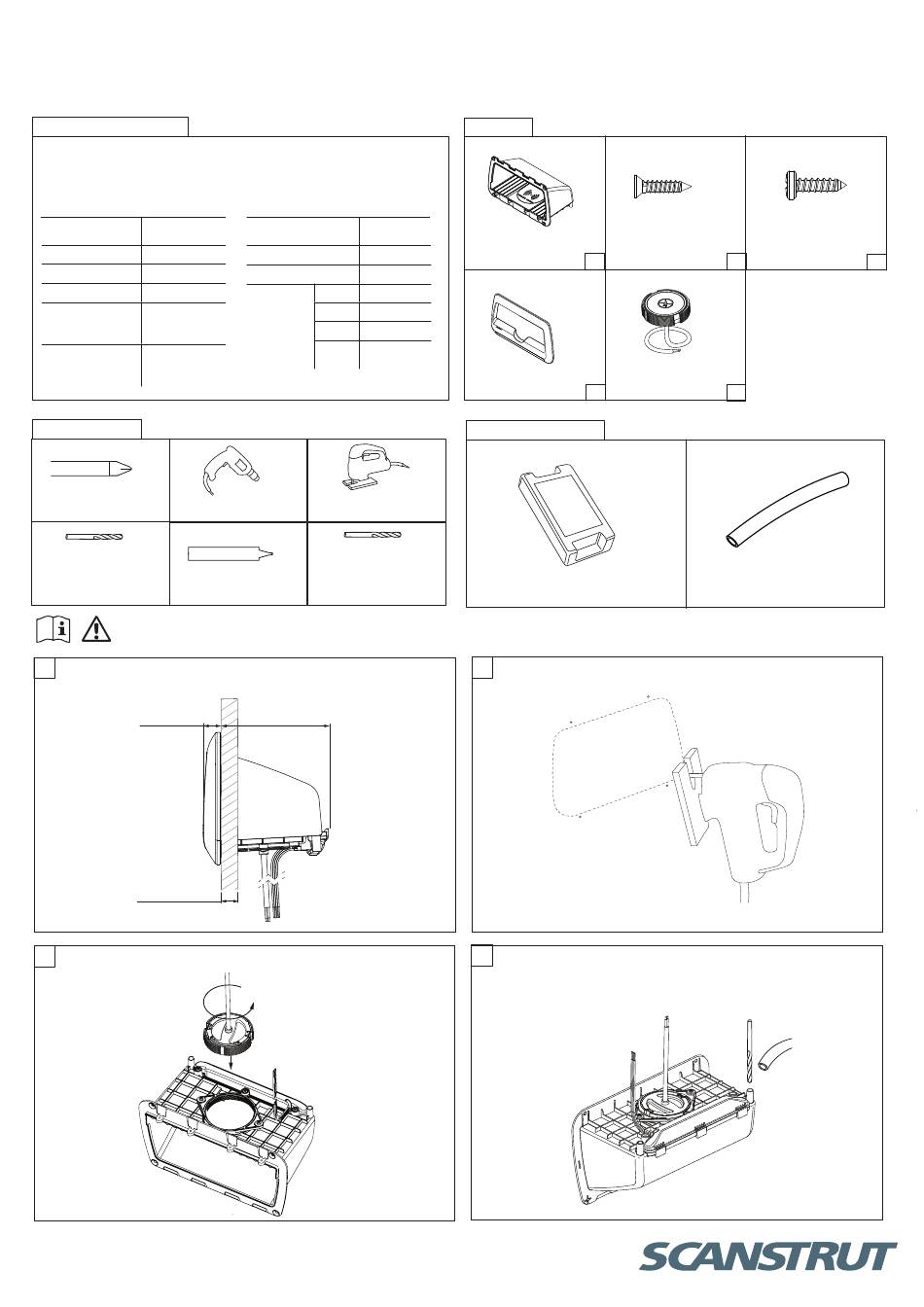

Installation Instructions
3 x 10mm Pan head
No6 x 3/4" (19mm)
Philips Thread forming
self-tapping CSK
x4 screw
Philips screw
SC-CW-01F
Wireless Charger
x1
Drain Pipe 8mm (5/16")
internal diameter
Optional
x1
