Scanstrut ROKK Wireless Edge Installation Instructions

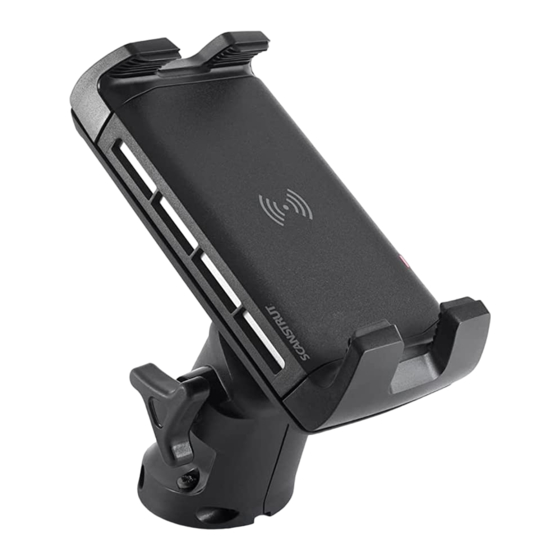

ROKK Wireless - Edge (SC-CW-05E)
Technical information.
Input voltage range :
Input current max:
Output power:
Standby current draw:
Waterproof rating:
Certifi cations:
For latest tech info visit: www.scanstrut.com/rokk-wireless
READ IMPORTANT SAFETY INFORMATION
LEAFLET BEFORE INSTALLING.
Part List:
ROKK Wireless Edge
No 6 x 1 1/4" (32mm)
self tapping screw
Select optimum mounting location.
1
Cut out drill template, check
3
alignment and stick down.
10-30V DC (12/24V system)
1.5A
5W (5V, 1A)
< 0.03W
IPX6 front and back
Qi, CE, FCC, ROHS,
UNECE R10 E24
Tools Required:
ø6mm (0.24') drill bit
Material
x1
Soft Material
E.g plywood
Hard Material
Pozi screwdriver
E.g Fiberglass
acrylic, hardwood
x3
Check viewing angle (a), full jaw extension (b) and 90° adjustability (c).
2
a.
- Drill Ø6mm (0.24") hole in the centre.
4
- Drill 3 pilot holes
(see tools required table
- page 1).
15-01-2021 (Issue 2)

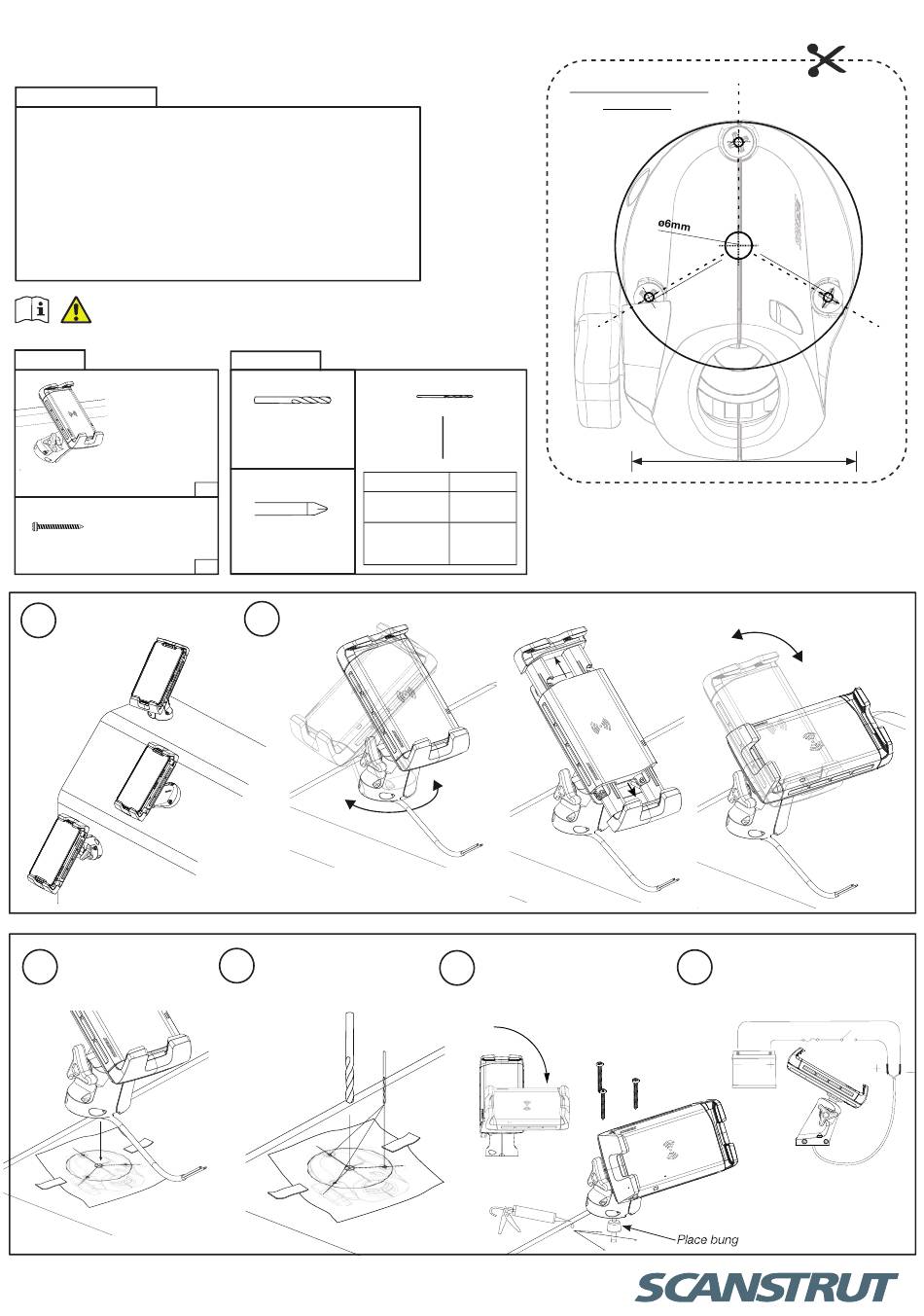

DRILLING TEMPLATE
Drill bit (for pilot holes)
No. 6 Screw
2.5mm
(3/32")
3mm
(1/8")
- Lightly de-burr 6mm (0.24") hole.
5
- Feed wire through hole.
- Rotate to Landscape
- Apply sealant to 3 x holes.
- Evenly screw the mount into place.
SCALE 1:1
3 x ø2.5mm (3/32")
to ø3mm (1/8")
Check Scale 50mm
b.
Connect wires to 12/24V supply, ensuring a
6
waterproof connection. Fuse according
to input voltage and current.
c.
