Item #633 688
Model #FCS80198-2PK
USE AND CARE GUIDE

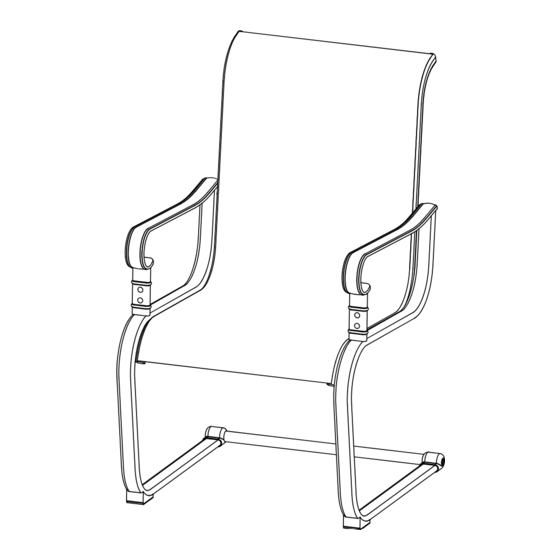

BELLEVILLE C-SPRING DINING CHAIR – 2 PACK
Questions, problems, missing parts? Before returning to the store call
Hampton Bay Customer Service.
8 a.m. - 6 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
ay through the purchase of these dining chairs. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY BELLEVILLE FCS80198-2PK
Summary of Contents for HAMPTON BAY BELLEVILLE FCS80198-2PK
- Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
- Page 2 Table of Contents Chair of Contents ............2 Package Contents ..............3 Warranty ................ 2 Assembly ............... 4 What is Covered ..............2 Care and Cleaning ............7 What is Not Covered ..............2 Pre-Assembly ..............2 Planning Assembly ..............2 Hardware Included ..............
- Page 3 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Chair back Right arm Left arm support bar HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 4 Assembly Connecting the left arm to the chair back Place the chair back (A) on a soft surface. Align the three holes under the seat of the chair back (A) to the holes on the left arm (C). Attach the left arm (C) to the seat of the chair back (A) by inserting M6x18 bolts (AA) and M6 washers (DD). Insert an M6x30 bolt (BB) and M6 washer (DD) into the last aligned hole on the backside of the chair back (A).
- Page 5 Assembly (continued) Connecting the right arm and the support bar Align the three holes under the seat of the chair back (A) to the holes on the right arm (B). Attach the right arm (B) to the seat of the chair back (A) by inserting M6x18 bolts (AA) and M6 washers (DD). Insert an M6x30 bolt (BB) and M6 washer (DD) into the last aligned hole on the backside of the chair back (A).
- Page 6 Assembly (continued) Securing the support bar Turn the chair right side up. Secure the support bar (D) to the two legs (B and C) using M6x25 countersunk bolts (CC). NOTE: Loosely tighten all bolts using the hex wrench (EE).
- Page 7 Assembly (continued) Tightening all bolts Once all bolts are in place, fully tighten all bolts. Ensure all connections are secure before use. Care and Cleaning For best results, clean the frame with damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
- Page 8 Questions, problems, missing parts? Before returning to the store call Hampton Bay Customer Service. 8 a.m. - 6 p.m., EST, Monday-Friday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
