Item # 1006 300 228
1006 325 686
Model # FCS80433-STC
FCS80433-STAC

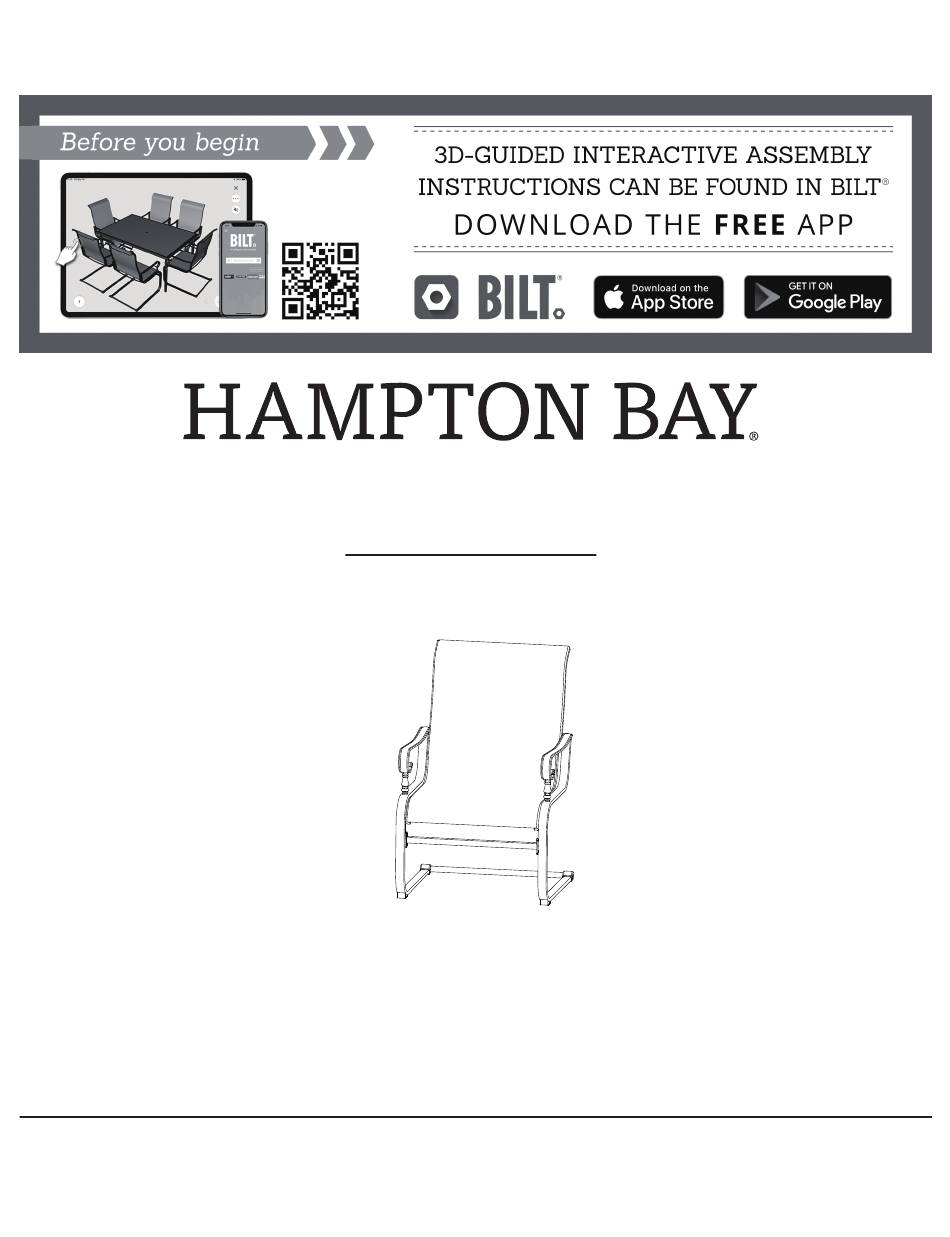

USE AND CARE GUIDE

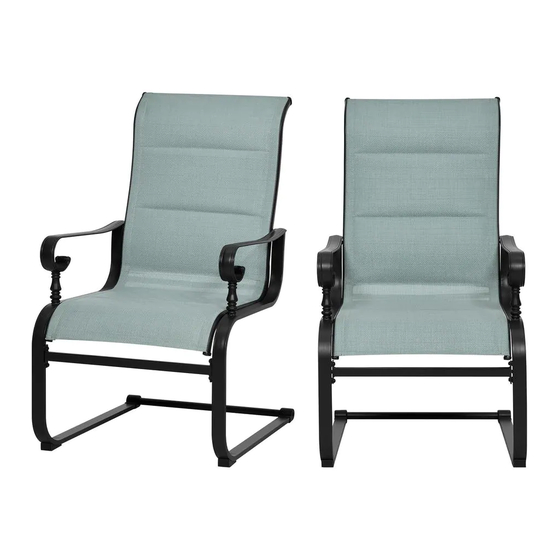

GLENRIDGE FALLS 6PK SLING DINING CHAIR
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive continually to create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY GLENRIDGE FALLS FCS80433-STC
Summary of Contents for HAMPTON BAY GLENRIDGE FALLS FCS80433-STC
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive continually to create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents........2 Pre-Assembly. -
Page 3: Warranty
Warranty 3 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED Its remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Hardware Included
Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt 24+1 M6x30 Combination Bolt 48+1 M6x25 Bolt 12+1 Hex Wrench PACKAGE CONTENTS Part Description Quantity Left Arm Right Arm Sling Bucket Connector Bar Support Bar... -
Page 5: Assembly
Assembly Connecting the Sling Bucket and the Connector Bar to the Right Arm Place the right arm (B) on a soft surface. Attach the sling bucket (C) to the right arm (B) using M6x30 combination bolts (BB). Attach the connector bar (D) to the right arm (B) using M6x15 combination bolts (AA). Do not tighten all bolts at this step. - Page 6 Assembly (continued) Securing the Support Bar Turn the chair right side up. Tighten the support bar (E) to the left arm (A) and the right arm (B) using M6x25 bolts (CC). Do not tighten all bolts at this step. Tightening All the Bolts Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (DD).
-
Page 7: Care And Cleaning
Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach or solvents. Store the chair in a dry sheltered place when not in use. chair away wind. - Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...
- Page 9 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this table. We strive continually to create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 10: Important Safety Instructions
Table of Contents Table of Contents........2 Pre-Assembly. -
Page 11: Warranty
Warranty 3-YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three (3) years. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty. -
Page 12: Hardware Included
Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x20 Combination Bolt 16+1 Hex Wrench PACKAGE CONTENTS Part Description Quantity Table Top Table Leg Umbrella ring cover... -
Page 13: Assembly
Assembly Attaching the Table Legs to the Table Top Place the table top (A) upside down on a soft surface. Attach the table legs (B) to the table top (A) using M6x20 combination bolts (AA). Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (BB). Checking the Table Turn the table right side up. -
Page 14: Care And Cleaning
Care Care and Cleaning For best results, clean the table with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach or solvents. Store the table in a dry sheltered place when not in use. table away wind. - Page 15 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...
