HAMPTON BAY FCS80382AS-ST Use And Care Manual

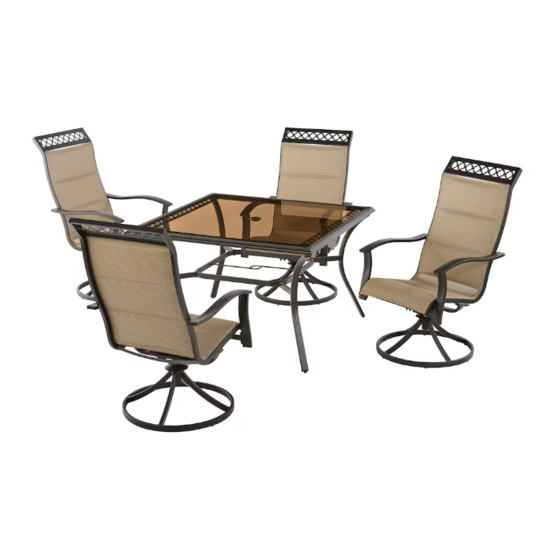

Statesville scroll 5pc padded sling swivel dining set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item # 1004 487 436
1004 487 438
Model # FCS80382AS-ST
USE AND CARE GUIDE
STATESVILLE SCROLL 5PC PADDED SLING SWIVEL DINING SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCS80382AS-ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY FCS80382AS-ST

Summary of Contents for HAMPTON BAY FCS80382AS-ST

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents........2 Pre-Assembly.

  • Page 3: Warranty

    Warranty 3 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center.

  • Page 4: Hardware Included

    Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x30 Combination Bolt 16+1 M6x25 Combination Bolt M6x15 Combination Bolt 24+2 M8x20 Combination Hex Bolt 16+1 Hex Wrench Wrench CHAIR PACKAGE CONTENTS Part Description Quantity Chair Bucket Left Arm Right Arm Support Bar...
  • Page 5 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table Top Table Leg Leg Connector HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 6: Chair Assembly

    Chair Assembly Attaching The Left Arm To The Chair Bucket Place the left arm (B) upside down on a soft surface. Attach the left arm (B) to the chair bucket (A) using M6x30 combination bolts (AA). NOTE: Loosely tighten all the bolts using the hex wrench (EE). Attaching The Right Arm To The Chair Bucket Attach the right arm (C) to the chair bucket (A) using M6x30 combination bolts (AA).
  • Page 7 Chair Assembly (continued) Attaching The Connection Bar To The Arms Attach the connection bar (E) to the left arm (B) and right arm (C) using M6x15 combination bolts (CC). NOTE: Loosely tighten all the bolts using the hex wrench (EE). Attaching The Support Bar To The Chair Bucket Attach the support bar (D) to the chair bucket (A) using M8x20 combination hex bolts (DD).
  • Page 8 Chair Assembly (continued) Tightening All Bolts Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (EE) and wrench (FF). Insert the support bar (D) to the swivel base (F). Turn the chair right side up. Ensure all connections are secure before use.
  • Page 9 Table Assembly Connecting The Table Legs To The Table Top Place the table top (G) upside down on a soft surface. Attach the table legs (H) to the table top (G) using M6x15 combination bolts (CC). NOTE: Loosely tighten all the bolts using the hex wrench (EE). Connecting The Leg Connector The Table Legs Connect the leg connector (I) to the table legs (H) using M6 x25 combination bolts (BB).

  • Page 10: Care And Cleaning

    Table Assembly (continued) Tightening The Bolts Once all of the bolts are in place, fully tighten the bolts using the hex wrench (EE). Ensure all connections are secure before use. Care Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 11 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...

This manual is also suitable for:

1004 487 4361004 487 438
