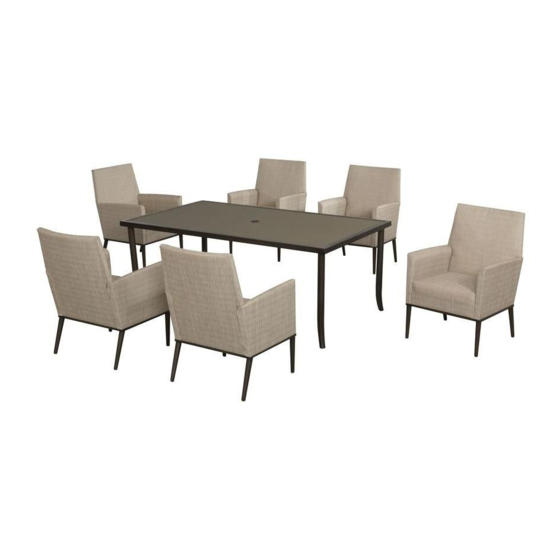

7-piece dining set

Advertisement

Quick Links

Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
u q
l a
y t i
r p
d o
c u
s t
e d
i s
n g
d e
o t
e
h n
USE AND CARE GUIDE
ARIA 7-PIECE DINING SET
call Hampton Bay Customer Service.
-
1-855-HD-HAMPTON
HAMPTONBAY.COM
mpton Bay through the purchase of this dining set. We strive to continually create
n a
e c
o y
r u
o h
m
. e
i V
t i s
s u
o
i l n
e n
Thank you for choosing Hampton Bay!
THANK YOU
o t
s
e e
o
r u
l u f
i l l
e n
f o
r p
d o
c u
s t
667 179
Item #
667 180
Model # FCS80233-ST
a
a v
a l i
l b
f e
r o
o y
r u
o h
m
e
m i
p
o r
e v
m
e
t n
e n
d e
. s

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARIA FCS80233-ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HAMPTON BAY ARIA FCS80233-ST

  • Page 1 THANK YOU mpton Bay through the purchase of this dining set. We strive to continually create y t i t i s i l n l u f i l l a l i Thank you for choosing Hampton Bay!
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Safety Warnings ..............2 Chair Package Contents ............4 Table Package Contents ......
  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...
  • Page 4: Chair Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Chair back Right arm t f e Chair seat Chair leg...
  • Page 5 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table top Table leg Umbrella rim Hole cover HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 6: Chair Assembly

    Chair Assembly Connecting the chair back to the right arm Place the right arm (B) on a soft surface. Insert the joint of the chair back (A) into the hole of the right arm (B) as shown below. Secure the chair back (A) to the right arm (B) with an an M6x30 combination bolt (BB). NOTE : Loosely tighten all the bolts using the hex wrench (DD).
  • Page 7 Chair Assembly (continued) Connecting the chair back to the left arm Place the left arm (C) on a soft surface. Insert the joint of the chair back (A) into the hole of the left arm (C) as shown below. Secure the chair back (A) to the left arm (C) with an an M6x30 combination bolt (BB). NOTE : Loosely tighten all the bolts using the hex wrench (DD).
  • Page 8 Chair Assembly (continued) Connecting the chair seat to the right arm Attach the chair seat (D) to the right arm (B) using M6x35 combination bolts (AA) and an M6x30 combination bolt (BB). NOTE : Loosely tighten all the bolts using the hex wrench (DD).
  • Page 9 Chair Assembly (continued) Connecting the chair seat to the left arm Attach the chair seat (D) to the left arm (C) using M6x35 combination bolts (AA) and an M6x30 combination bolt (BB). NOTE : Loosely tighten all the bolts using the hex wrench (DD). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Chair Assembly (continued) Connecting the chair leg to the chair seat Attach the chair leg (E) to the chair seat (D) using M6x30 combination bolts (BB). NOTE : Loosely tighten all the bolts using the hex wrench (DD).
  • Page 11 Chair Assembly (continued) Tightening the bolts Once all bolts are in place, fully tighten all the bolts. Turn the chair right side up. Ensure that all connections are secure before use. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 12 Table Assembly Attach the table legs to the table top Place the table top (F) upside down on a soft surface. Attach the table legs (G) to the table top (F) using M8x20 combination bolts (CC). Once all the bolts are in place, fully tighten all bolts with the hex wrench (DD).
  • Page 13 Adding the umbrella rim and hole cover Turn the table right side up. Ensure that all connections are secure before use. Place the hole cover (I) in the umbrella rim (H).  Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 14 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
