JAZZY1107
32 Wedgwood Road • Bicester, Oxon OX26 4UL

Advertisement

Table of Contents
loading

Related Manuals for Pride JAZZY1107

Summary of Contents for Pride JAZZY1107

  • Page 1 JAZZY1107 32 Wedgwood Road • Bicester, Oxon OX26 4UL...
  • Page 2 S A F E T Y G U I D E L I N E S WARNING! An authorised Pride Dealer or a qualified technician must perform the initial setup of this power chair and must perform all of the procedures in this manual.

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION..........................4 SAFETY ..............................5 III. YOUR POWER CHAIR ........................17 IV. ASSEMBLY/DISASSEMBLY ......................21 COMFORT ADJUSTMENTS......................25 VI. BATTERIES AND CHARGING ....................31 VII. CARE AND MAINTENANCE ......................35 VIII. WARRANTY............................40 APPENDIX I - SPECIFICATIONS .......................

  • Page 4: Introduction

    Pride to enhance or preserve the safe use of this product.

  • Page 5: Safety

    I I . S A F E T Y PRODUCT SAFETY SYMBOLS The symbols below are used on the power chair to identify warnings, mandatory actions and prohibited actions. It is very important for you to read and understand them completely. Read and follow the information in the owner’s manual.
  • Page 6 I I . S A F E T Y Removal of grounding prong can create electrical hazard. If necessary, properly install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug access. Do not remove anti-tip wheels. Do not place your power chair in freewheel mode while on a decline. Do not place your power chair in freewheel mode while on an incline.
  • Page 7 I I . S A F E T Y EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m. Explosive conditions exist! Corrosive chemicals contained in battery. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Do not connect an extension lead to the AC/DC converter or the battery charger.
  • Page 8 S A F E T Y Battery charger for indoor use only. Disposal and recycling - Contact your authorised Pride Dealer for information on proper disposal and recycling of your Pride product and its packaging. Locked and in drive mode.
  • Page 9 Pride products. Pre-Ride Safety Check Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check before each use to make sure your power chair operates smoothly and safely.
  • Page 10 Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty. Pride will not be held responsible for injuries and/or property damage resulting from failure to observe weight limitations.
  • Page 11 Doing so could cause instability in your power chair. Pride recommends that the maximum slope of an incline you attempt to safely ascend or descend on your power chair does not exceed 8.7% (5°). See figure 1.
  • Page 12 Your power chair is designed to provide optimum stability under normal driving conditions—dry, level surfaces composed of concrete, blacktop or tarmac. However, Pride recognises that there will be times when you will encounter other surface types. For this reason, your power chair is designed to perform admirably on packed soil, grass and gravel. Feel free to use your power chair safely on lawns and in park areas.
  • Page 13 Motor Vehicle Transport Pride recommends that you do not remain seated in your power chair while traveling in a motor vehicle. The power chair should be stowed in the boot of a car or in the back of a truck or van with batteries removed and properly secured.
  • Page 14 Never reach, lean or bend while driving your power chair. If it is absolutely necessary to reach, lean or bend while seated on your power chair, it is important to maintain a stable centre of gravity and keep the power chair from tipping. Pride recommends that the power chair user determine his/her personal limitations and practice bending and reaching in the presence of a qualified healthcare professional.
  • Page 15 User Positioning Pride recommends that all users be seated in an upright position with their pelvis positioned as far rearward as possible in the power chair seat. All users need to discuss pelvic positioning with their authorised Pride Dealer, therapist(s) or healthcare profes- sional to determine appropriate pelvic position when seated on the power chair based on the user’s individual medical needs.
  • Page 16 I I . S A F E T Y WARNING! Pride strongly recommends that you do not smoke cigarettes while seated in your power chair, although the power chair has passed the necessary testing requirements for cigarette smoking. You must adhere to the following safety guidelines if you decide to smoke cigarettes while seated in your power chair.

  • Page 17: Your Power Chair

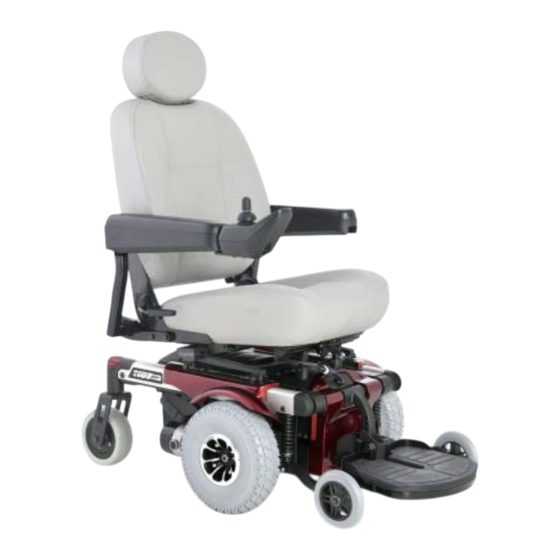

    I I I . Y O U R P O W E R C H A I R THE JAZZY 1107 The Jazzy has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat assembly includes the armrests, seatback and seat base.
  • Page 18 I I I . Y O U R P O W E R C H A I R FRONT TRAPEZE BAR SIDE TRAPEZE BARS BATTERY BOX CONTROLLER CONNECTOR BATTERY BOX MANUAL FREEWHEEL LEVER MOTOR/BRAKE ASSEMBLY Figure 6. The Jazzy 1107 Power Base Electrical Components The electrical components consist of the controller assembly, the batteries and the motors.
  • Page 19 Next, push in the circuit breaker button, turn on the controller, and continue normal operation. If the main circuit breaker continues to trip repeatedly, contact your authorised Pride Dealer. Controller Power Module: The controller power module enables the controller to communicate with the batteries and the motors.
  • Page 20 I I I . Y O U R P O W E R C H A I R Manual Freewheel Levers Your power chair has a manual freewheel lever on each motor. See figure 6. Manual freewheel levers enable you to disengage the drive motors from the gearboxes and manoeuvre the chair manually.

  • Page 21: Assembly/Disassembly

    Nylon insert lock nuts should not be reused as it may cause damage to the nylon insert, resulting in a less secure fit. Replacement nylon insert lock nuts are available at local hardware stores or through your authorised Pride Dealer. ARMREST WIDTH ADJUSTMENT...
  • Page 22 I V . A S S E M B L Y / D I S A S S E M B L Y Seat Installation It may be necessary to install the seat either prior to initial operation or after transporting your power chair. Most seats are attached to the power base with the Universal Mounting REAR EXTRUSION REAR SEAT INTERFACE...
  • Page 23 I V . A S S E M B L Y / D I S A S S E M B L Y To remove the seat: 1. Flip up the seat latch safety. 2. Squeeze the seat latch together. See figure 12. 3.
  • Page 24 I V . A S S E M B L Y / D I S A S S E M B L Y BATTERY BOX LATCH BATTERY BOX LATCH CENTRE SECTION LATCH (UNLOCKED) (LOCKED) Figure 14. Battery Box Removal and Frame Separation www.pridemobility.com Jazzy 1107...

  • Page 25: Comfort Adjustments

    If your power chair is equipped with a contoured seat, refer to the following information. WARNING! If your power chair was configured by your authorised Pride Dealer, please consult your healthcare professional before changing the seat position or making any other adjustment. Some adjustments may degrade your power chair’s performance and safety by changing its centre of gravity.
  • Page 26 C O M F O R T A D J U S T M E N T S Seat Position Adjustment You can move the seat forward or rearward by changing the extrusion mounting position. To change the position: 1. Turn off the power to the controller. 2.
  • Page 27 C O M F O R T A D J U S T M E N T S Armrest Width Adjustment You can change each armrest’s width independently of the other. SETSCREW NOTE: Changing the armrest width may increase the overall width of your power chair.
  • Page 28 C O M F O R T A D J U S T M E N T S Foot Platform Height Adjustment The foot platform height is easily adjusted to different heights in 1.27 cm. (0.50 in.) increments. To raise or lower the foot platform: 1.
  • Page 29 You can compensate for this by having your authorised Pride Dealer make a small adjustment to the pre-programmed deceleration setting in the controller or by moving the seat assembly farther to the back NUT A of your power chair.
  • Page 30 MANDATORY! Inspect the positioning belt for loose or damaged parts before each use of the power chair. If you discover a problem, contact your authorised Pride Dealer for maintenance and repair. www.pridemobility.com Jazzy 1107...

  • Page 31: Batteries And Charging

    PROHIBITED! Do not allow unsupervised children to play near the power chair while the batteries are charging. Pride recommends that you do not charge the batteries while the power chair is occupied. MANDATORY! Read the battery charging instructions in this manual and in the manual supplied with the battery charger before charging the batteries.
  • Page 32 The red light indicates that power to the off-board charger is on. The green light indicates that the batteries are fully charged. If it is not a Pride off-board charger, then follow the instructions supplied by the manufacturer.
  • Page 33 We work closely with our battery manufacturer to provide a battery that best suits your power chair’s specific demands. Fresh batteries arrive regularly at Pride and are promptly shipped with a full charge. During shipping, the batteries encoun- ter temperature extremes that may influence initial performance. Heat robs the charge from the battery, and cold slows the power available and extends the time needed to recharge the battery (just as with a car battery).
  • Page 34 V I . B A T T E R I E S A N D C H A R G I N G It might take a few days for the temperature of the battery to stabilise and adjust to its new ambient temperature. More importantly, it will take a few “charging cycles”...

  • Page 35: Care And Maintenance

    3. Check the joystick operation and the brakes before using your power chair again. 4. If any inconsistencies are found, take your power chair to your authorised Pride Dealer. Power chairs that are fre- quently exposed to sources of water, such as incontinence, should be inspected often for corrosion and electronic components may need to be replaced frequently.
  • Page 36 Pride Dealer if there is a problem. ! Check for flat spots on solid tyres. Flat spots could adversely affect stability. ! Inspect the armrests for loose hardware, stress points or damage. See your authorised Pride Dealer if there is a problem.
  • Page 37 Yearly Checks Take your power chair to your authorised Pride Dealer for yearly maintenance, especially if you use your power chair on a regular basis. This helps ensure that your power chair is functioning properly and helps prevent future complications.
  • Page 38 WARNING! Do not replace battery when seat is occupied. WARNING! The batteries on your power chair should only be serviced or replaced by an authorised Pride Dealer or a qualified technician. WARNING! Power chair batteries are heavy. See specifications table. If you are unable to lift that much weight, be sure to get help.
  • Page 39 Service FRONT BOX The following symptoms could indicate a serious problem with your power chair. If necessary, contact your authorised Pride Figure 28. Battery Boxes Dealer. When calling, have the model number, serial number, nature of the problem and the error code if available.

  • Page 40: Warranty

    Pride Mobility Products Ltd. cannot be deemed responsible. NOTE: Pride Mobility Products Ltd. provides parts only under warranty. Your authorised Pride Dealer is re- sponsible for labour and service. Please contact your authorised Pride Dealer for information about these ser- vices and for any applicable charges.

  • Page 41: Appendix I - Specifications

    A P P E N D I X S P E C I F I C A T I O N S SPECIFICATIONS Suspension: Active Trac Drive Wheels: 25.4 cm (10 in.), pneumatic or solid available Castor Wheels: 15.25 cm (6 in.), solid, rear-mounted Anti-tip Wheels: 12.7 cm (5 in.), solid, front-mounted Maximum Speed:¹...
  • Page 42 A P P E N D I X S P E C I F I C A T I O N S LENGTH 102.24 cm (40.25”) with foot platform 92.39 cm (36.375”) TURNING RADIUS 55.56 cm (21.875”) WIDTH 59.37 cm (23.375”) 7.62 cm (2.75”) (3”)
  • Page 43 Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected Inspector *INFMANU2846* Product Serial Number...
