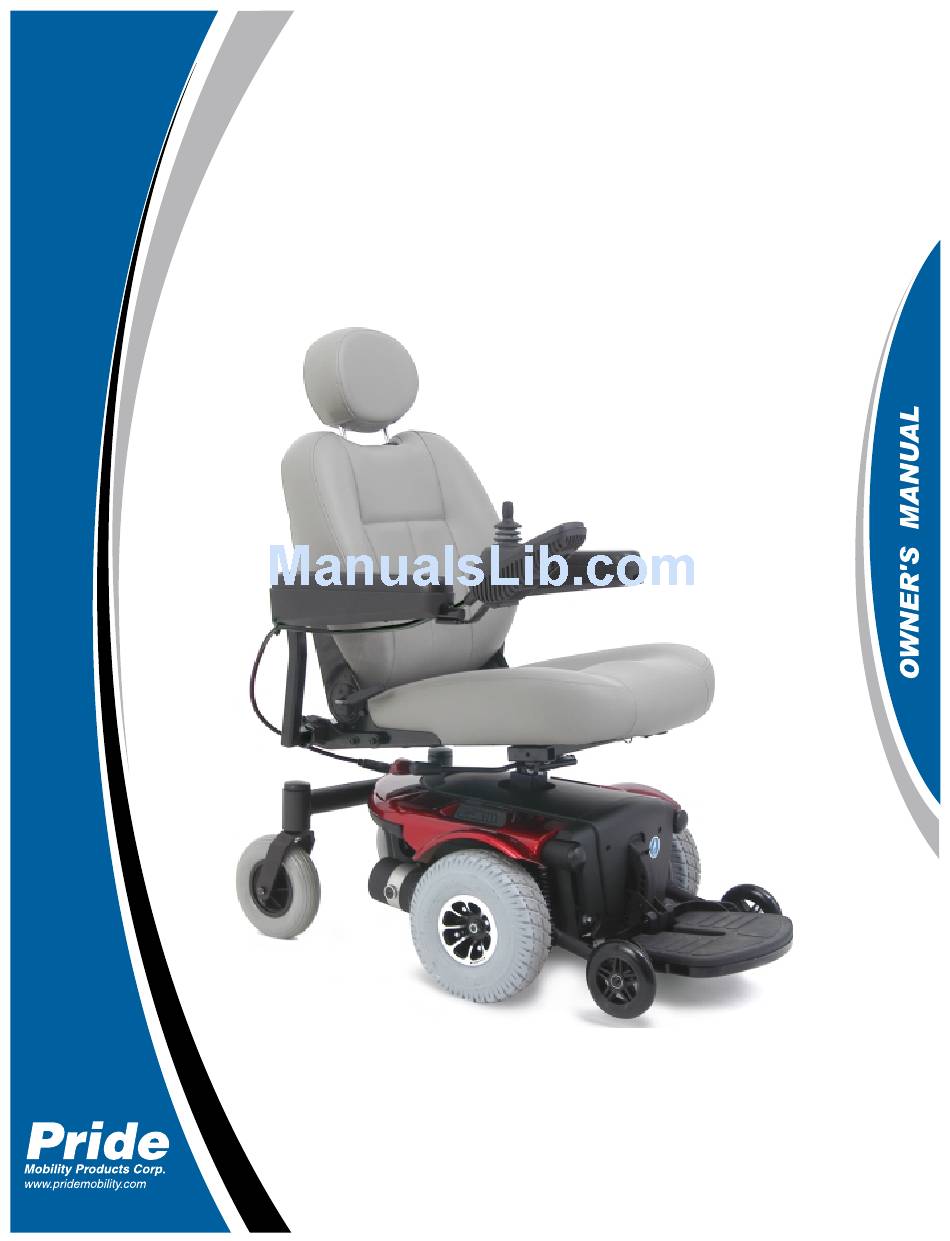

- Page 1 JAZZY S E R I E S How a Power Chair should FEEL! ™ Including Model: Jazzy 1103 Ultra 1-800-800-8586 (US) 1-888-570-1113 (Canada)
-
Page 2: Safety Guidelines
The latest/current version of this manual is available on our website. 088 609 661 Copyright © 2007 Pride Mobility Products Corp. INFMANU2429/Rev D/June 2007 G U I D E L I N E S... -
Page 3: Table Of Contents
SAFETY ... 6 III. YOUR POWER CHAIR ... 18 IV. ASSEMBLY... 23 COMFORT ADJUSTMENTS... 25 VI. BATTERIES AND CHARGING ... 35 VII. CARE AND MAINTENANCE ... 39 VIII. WARRANTY... 45 Jazzy 1103 Ultra C O N T E N T S www.pridemobility.com... -
Page 4: Introduction
SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of- the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities. Once you understand how to safely operate and care for your power chair, it should give you years of trouble free operation and service. -
Page 5: Pride Owners Club
These message boards invite you to communicate with other Pride customers as well as Pride represen- tatives who are available to assist you with any questions or concerns you may have. Jazzy 1103 Ultra www.pridemobility.com... -
Page 6: I I . S A F E T Y
Do not place power chair in freewheel mode on a decline. Do not place power chair in freewheel mode on an incline. Pinch/Crush points created during assembly. I I . S A F E T Y www.pridemobility.com Jazzy 1103 Ultra... - Page 7 Wear safety goggles. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Jazzy 1103 Ultra I I . S A F E T Y...
- Page 8 Do not connect an extension cord to the AC/DC converter or the battery charger. Removal of grounding prong can create electrical hazard. If necessary, properly install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug access. Keep tools and other metal objects away from battery terminals. www.pridemobility.com Jazzy 1103 Ultra...
- Page 9 + + + + + = Positive (Red) Terminal Post - = Negative (Black) Terminal Post Connect Red wire to Red Positive (+) Terminal Post Connect Black wire to Black Negative (–) Terminal Post Jazzy 1103 Ultra I I . S A F E T Y www.pridemobility.com...
-
Page 10: General Guidelines
! Check the brakes. See VII. “Care and Maintenance.” ! Check battery charge. See VI. “Batteries and Charging.” NOTE: If you discover a problem, contact your authorized Pride Provider for assistance. I I . S A F E T Y www.pridemobility.com Jazzy 1103 Ultra... -
Page 11: Weight Limitations
WARNING! Never travel down an incline backward. Doing so may cause the power chair to tip. Always exercise extreme caution when negotiating an incline. Jazzy 1103 Ultra I I . S A F E T Y... -
Page 12: Freewheel Mode
(i.e., lessen the sharpness of the turn) to prevent your power chair from tipping. WARNING! When cornering sharply, reduce your speed and maintain a stable center of gravity. This greatly reduces the possibility of a tip or fall. I I . S A F E T Y 5 (8.7%) www.pridemobility.com Jazzy 1103 Ultra... -
Page 13: Public Streets And Roadways
WARNING! Do not attempt to have your power chair proceed backward down any step, curb, or other obstacle. This may cause the power chair to tip. Figure 2. Correct Curb Approach Jazzy 1103 Ultra I I . S A F E T Y Figure 3. - Page 14 Anyone traveling in a vehicle should be properly belted into seats approved by the vehicle manufacturer. I I . S A F E T Y www.pridemobility.com Jazzy 1103 Ultra...
-
Page 15: Removable Parts
This may cause your power chair to tip. WARNING! Keep your hands away from the tires when driving. Be aware that loose fitting clothing can become caught in drive tires. Jazzy 1103 Ultra I I . S A F E T Y... -
Page 16: Prescription Drugs/Physical Limitations
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this may impair your ability to operate your power chair in a safe manner. I I . S A F E T Y Figure 4. Ideal Transfer Position www.pridemobility.com Jazzy 1103 Ultra... - Page 17 Call Pride at 800-424-8205 to report the incident. Jazzy 1103 Ultra I I . S A F E T Y...
-
Page 18: Iii. "Your Power Chair
THE JAZZY 1103 ULTRA The Jazzy 1103 Ultra has two main assemblies: the seat and the power base. See figures 5 and 6. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake assemblies, two drive wheels, two anti-tip wheels, two caster wheels, two batteries, and the electrical components. - Page 19 (+ or – ) 3%. ³ AGM or Gel-Cell type required. See VI. “Batteries and Charging.” NOTE: All specifications subject to change without notice. Jazzy 1103 Ultra P O W E R JAZZY 1103 ULTRA SPECIFICATIONS www.pridemobility.com C H A I R...
-
Page 20: Electrical Components
Y O U R ARTICULATING BEAM MOTOR/BRAKE ASSEMBLY Figure 6. The Jazzy 1103 Ultra Power Base ELECTRICAL COMPONENTS The electrical components are located on the power base. The ammeter and the charger power cord receptacle are located on the right side of the power base. The main circuit breaker is located on the front of the battery tray. The controller connector and the motor connectors are located on the power pod, inside the power base. -
Page 21: Connectors
CONNECTOR MOTOR CONNECTOR POWER POD CHARGER POWER CORD RECEPTACLE AMMETER ONBOARD BATTERY CHARGER Figure 7. Jazzy 1103 Ultra Electrical Components Jazzy 1103 Ultra P O W E R BATTERY CONNECTOR MOTOR CONNECTOR CIRCUIT BREAKER www.pridemobility.com C H A I R... -
Page 22: Manual Freewheel Levers
WARNING! Do not use the freewheel lever handles as tie-down points to secure this product. Figure 8. Drive Mode (Drive Engaged) P O W E R MANUAL FREEWHEEL LEVER Figure 9. Freewheel Mode (Drive Disengaged) www.pridemobility.com C H A I R MANUAL FREEWHEEL LEVER Jazzy 1103 Ultra... -
Page 23: Assembly
Replacement nylon insert lock nuts are available at local hardware stores or through your authorized Pride Provider. SEATBACK ANGLE ADJUSTMENT CONTROLLER POSITION Figure 10. Jazzy 1103 Ultra Assembly View Jazzy 1103 Ultra I V . A S S E M B L Y ANTI-TIP WHEEL ADJUSTMENT www.pridemobility.com... -
Page 24: Seat Installation
A S S E M B L Y SEAT LATCH SAFETY FRICTION LOCK LEVER Figure 11. UMS - Power Elevating Seat System FRONT EXTRUSION FRONT TRAPEZE BAR Figure 12. UMS - Optional Seating System www.pridemobility.com POWER SEAT FRAME REAR TRAPEZE BAR REAR EXTRUSION Jazzy 1103 Ultra... -
Page 25: Comfort Adjustments
See figure 14. 9. Move the trapeze bars up or down to the desired height. Jazzy 1103 Ultra A D J U S T M E N T S Figure 13. Seat Height Adjustment - Seat Latch Safety... -
Page 26: Seat Position
1. Pull up on the seatback release lever. 2. Lean forward or backward to the desired position. 3. Release the lever. A D J U S T M E N T S Figure 15. Seat Mounting Holes www.pridemobility.com SEAT MOUNTING HOLES Jazzy 1103 Ultra... -
Page 27: Seatback Angle Adjustment
1. Loosen the two setscrews located on the armrest receiver. 2. Raise or lower the armrest to the desired height. 3. Tighten the setscrews to secure the armrest. Jazzy 1103 Ultra A D J U S T M E N T S JAM NUT... -
Page 28: Controller Position
NOTE: If your power chair is equipped with a Syn- ergy or TRU-Balance Seating System, refer to the controller adjustment information contained in separate manuals. A D J U S T M E N T S Figure 17. Underside of Armrest www.pridemobility.com CONTROLLER BRACKET SETSCREW Jazzy 1103 Ultra... - Page 29 NOTE: If the lever will not rotate to the fully closed position, then turn the nut counterclockwise one- quarter or one-half turn. Jazzy 1103 Ultra A D J U S T M E N T S QUICK RELEASE FASTENERS FOOT PLATFORM BRACKET Figure 18.
-
Page 30: Swing-Away Footrests
2. Slide the foot rest up or down to the desired length. 3. Reinstall the two adjustment screws. A D J U S T M E N T S Figure 20. Bottom View of Footrest FOOTREST EXTENSION Figure 21. Swing-Away Footrests www.pridemobility.com SETSCREW SFR RELEASE LEVER ADJUSTMENT SCREWS Jazzy 1103 Ultra... -
Page 31: Elevating Leg Rests
2. Slide the leg rest up or down to the desired length. 3. Align the adjustment holes in the leg rest extension and reinstall the adjustment screws. Jazzy 1103 Ultra A D J U S T M E N T S LEG REST EXTENSION Figure 22. -
Page 32: Anti-Tip Wheels
5. Tighten bolt A. 6. Raise or lower the other anti-tip wheel so that it is at the same height. A D J U S T M E N T S ANTI-TIP WHEEL Figure 24. Anti-Tip Wheel Assembly www.pridemobility.com Jazzy 1103 Ultra... - Page 33 1–2 inches (2.5–5 cm). Always check to be sure this system is operating properly before using your power chair Jazzy 1103 Ultra A D J U S T M E N T S Figure 25.
- Page 34 WARNING! Do not attempt to drive the power chair with the seat facing to the side. Always return the seat to the forward facing position before operating the power chair. A D J U S T M E N T S TOGGLE SWITCH Figure 26. Power Seat Toggle Switch www.pridemobility.com Jazzy 1103 Ultra...
-
Page 35: Batteries And Charging
Pride Provider. WARNING! If the battery charger is equipped with cooling slots, then do not attempt to insert objects through these slots. Jazzy 1103 Ultra A N D C H A R G I N G... -
Page 36: Battery Break-In
90% of their potential. 4. After four or five charging cycles, the batteries will top off at 100% charge and last for an extended period. A N D C H A R G I N G www.pridemobility.com Jazzy 1103 Ultra... -
Page 37: Daily Use
WARNING! Corrosive chemicals contained in batteries. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Jazzy 1103 Ultra A N D C H A R G I N G... - Page 38 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. www.pridemobility.com Jazzy 1103 Ultra...
-
Page 39: Care And Maintenance
C A R E CARE AND MAINTENANCE Your Jazzy 1103 Ultra is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from your authorized Pride Provider. Preventive maintenance is very important. -
Page 40: Daily Checks
See your authorized Pride Provider for repair. ! Keep your power chair clean and free of foreign material, such as mud, dirt, hair, food, drink, etc. A N D M A I N T E N A N C E www.pridemobility.com Jazzy 1103 Ultra... - Page 41 WARNING! Be sure that the power to the controller is turned off and the power chair is not in freewheel mode before performing this procedure. Jazzy 1103 Ultra A N D M A I N T E N A N C E...
-
Page 42: Battery Replacement
A N D M A I N T E N A N C E FRONT RIM HALF AXLE SLOT WASHERS NUTS Figure 28. Jazzy 1103 Ultra Drive Wheel Disassembled www.pridemobility.com TIRE TUBE WHEEL HUB REAR RIM HALF Jazzy 1103 Ultra... - Page 43 25. Reconnect the controller to the power pad. 26. Reinstall the rear shroud and tighten the fasteners. 27. Charge the batteries. See VI. “Batteries and Charging.” Jazzy 1103 Ultra A N D M A I N T E N A N C E...
-
Page 44: When To See Your Authorized Pride Provider For Service
QUICK DISCONNECT THERMAL FUSES BATTERY WIRING DIAGRAM Figure 29. Jazzy 1103 Ultra Battery Connections When to See Your Authorized Pride Provider for Service The following symptoms could indicate a serious problem with your power chair. If necessary, contact your authorized Pride Provider. -
Page 45: Warranty
! Bearings and bushings The battery is covered by a separate six-month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride. Jazzy 1103 Ultra W A R R A N T Y ! Fixed-position seat post... -
Page 46: Warranty Exclusions
! Circumstances beyond the control of Pride ! Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products Corporation ! Repairs and/or modifications made to any part without specific consent from Pride... - Page 47 Quality Control - Jazzy 1103 Ultra Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected...
