π
H-3130U-12, H-3131U-12
H-3132U-12
5-7 STEP SAFETY ANGLE
ROLLING LADDERS
12" DEEP TOP STEP

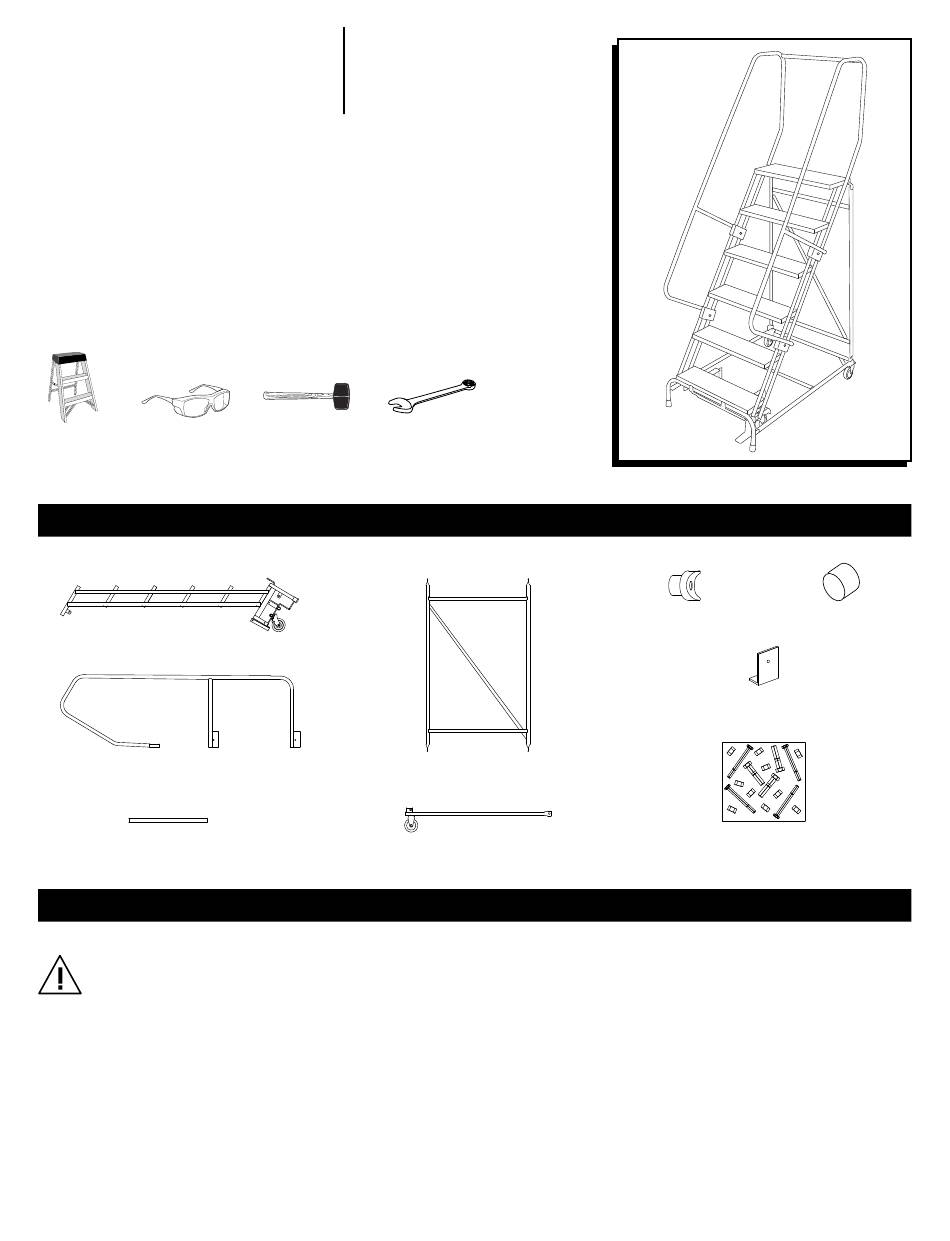

TOOLS NEEDED
Step Ladder
Safety Glasses
(D) Stile x 1
(A) Left Handrail x 1
(B) Right Handrail x 1
(C) Rear Handrail Bar x 1
(shipped taped to handrail)
WARNING! Assembly of these types of ladders
can be inherently dangerous. Please take all
necessary precautions during the assembly
process.
• Always use a separate ladder to finish assembly in
high places.
• Never climb a ladder that is not completely
assembled.
PAGE 1 OF 9
1-800-295-5510
uline.com
Rubber Mallet
7/16" Wrench
9/16" Wrench x 2
PARTS
(F) Back Panel x 1
(E) Base Panel x 2
SAFETY
Pour le français, consulter les pages 5-6.
Notched Bushing x 4)
(shipped attached to handrails)
• Do not assemble or use a ladder with missing or
damaged parts.
• Use proper lifting mechanics when assembling a
ladder.
• Watch for overhead electrical hazards and
obstructions.
Para Español, vea páginas 3-4.
Gray Bushings x 2
Handrail Bracket x 2
Hardware Kit x 1
(misc. hardware included)
1223 IH-3130U-12
Advertisement
Related Manuals for U-Line H-3130U-12
Summary of Contents for U-Line H-3130U-12
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. π H-3130U-12, H-3131U-12 1-800-295-5510 H-3132U-12 uline.com 5-7 STEP SAFETY ANGLE ROLLING LADDERS 12" DEEP TOP STEP TOOLS NEEDED Step Ladder Safety Glasses Rubber Mallet 7/16" Wrench 9/16" Wrench x 2...
- Page 2 ASSEMBLY Diagram 1 Single Hole Model Single Hole Model Double Hole Model Double Hole Model 2. Using six 3/8-16 x 1¼" hex head cap screws and FRAME self-locking nuts, bolt the top of back panel (F) to NOTE: DO NOT tighten bolts until instructed to. the insides of L1.
- Page 3 ASSEMBLY CONTINUED 1/4-20 x 2¾" Handrail Tube Cap H.H.C.S. Handrail Stairway Handrail Side Bracket Tubes Handrail 3/8-16 Self-locking Rear Stile Tube Notched Gray Step 3 Step 1 Step 2 A, B Bushing Bushing Rear Handrail 3/8-16 x 2" H.H.C.S. Trip Bar Diagram 2 HANDRAILS LEVELING...
-
Page 4: Herramientas Necesarias
π H-3130U-12, H-3131U-12 800-295-5510 H-3132U-12 uline.mx ESCALERAS DE 5-7 ESCALONES CON ÁNGULO DE SEGURIDAD Y RUEDAS ESCALÓN SUPERIOR DE 12" DE PROFUNDIDAD HERRAMIENTAS NECESARIAS Escalera Lentes de Seguridad Mazo de Hule Llave o Dado de 7/16" 2 Llaves o Dados de 9/16"... - Page 5 ENSAMBLE Diagrama 1 Modelo de un Orificio Modelo de un Orificio Modelo de Doble Orificio Modelo de Doble Orificio MARCO 2. Utilizando seis tornillos de cabeza hexagonal de 3/8-16 x 1⁄" y contratuercas, atornille la parte NOTA: NO apriete los pernos hasta que se le superior del panel trasero (F) en el interior de L1.
- Page 6 CONTINUACIÓN DE ENSAMBLE Tornillo de Cabeza Hexagonal de Pasamanos 1/4-20 x 2¾" Tapa del Tubo Soporte del Tubos de Pasamanos Pasamanos Pasamanos Escalera Lateral Contratuerca Tubo Posterior de 3/8-16 del Larguero Buje Buje Paso 3 Paso 1 Paso 2 A, B Ranurado Gris Barra...
-
Page 7: Outils Requis
π H-3130U-12, H-3131U-12 1-800-295-5510 H-3132U-12 uline.com ÉCHELLES SUR ROULETTES À ANGLE SÉCURITAIRE DE 5 À 7 MARCHES MARCHE SUPÉRIEURE DE 12 PO DE PROFONDEUR OUTILS REQUIS Escabeau Lunettes de sécurité Maillet en caoutchouc Clé ou douille de 7⁄16 poh Clé ou douille de 9⁄16 po x2 PIÈCES... -
Page 8: Montage
MONTAGE Figure 1 Modèle à un Trou Modèle à un Trou Modèle à Deux Trous Modèle à Deux Trous CADRE 2. À l'aide de six vis d'assemblage à tête hexagonale 3/8 -16 x 1 ¼ po et des écrous autobloquants, REMARQUE : NE serrez PAS les boulons à moins d'y boulonnez le haut du panneau arrière (F) à... - Page 9 MONTAGE SUITE Vis Hex. Main 1/4-20 x 2 ¾ po Courante Capuchon de Tube Tubes Main d'Escalier Support de Courante Main Main Courante Courante Latérale Écrou Autobloquant Tube du 3/8-16 po Montant Arrière Bague Crantée Bague Étape 3 Étape 1 Étape 2 A, B Grise...
