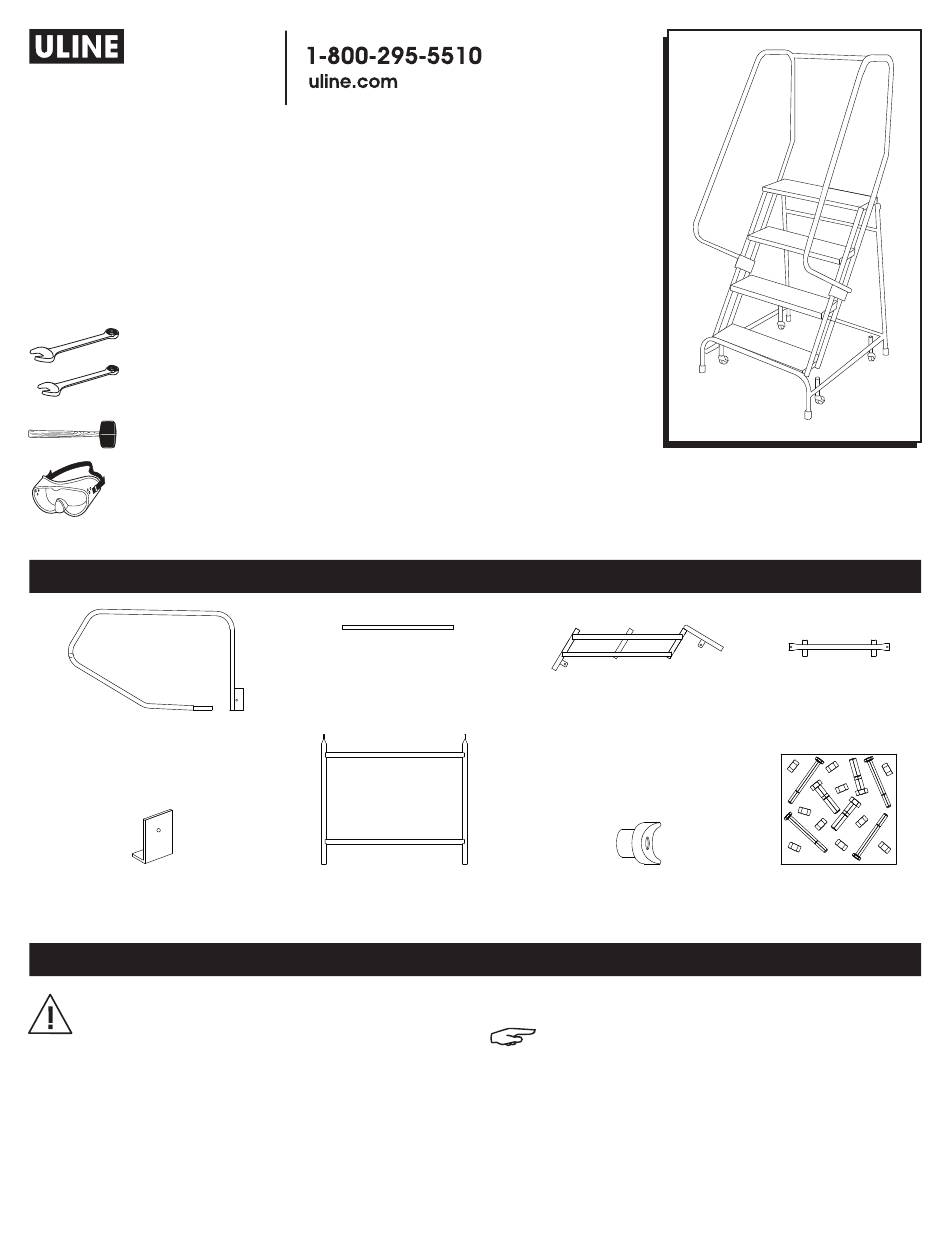

3-4 STEP ROLLING
SAFETY LADDERS
10" DEEP TOP STEP

TOOlS NEEDED

9/16" Wrench (2)
7/16" Wrench or Socket
Rubber mallet
Safety Glasses
A. Side Handrail (1)
B. Side Handrail (1) Opposite
Handrail Brackets (2)
(shipped attached to side of Stile)
WARNING! Assembly of these types of ladders
can be inherently dangerous. Please take all
precautions necessary during the assembly
process. Always use a separate ladder to
finish assembly in high places. Never climb a
ladder that is not completely assembled. Do
not assemble or use a ladder with missing or
damaged parts. Use proper lifting mechanics
when assembling a ladder. Watch for overhead
electrical hazards and obstructions.
PAGE 1 OF 4

PARTS

C. Rear Handrail Bar (1)
(shipped under a step
attached with orange ties)
F. Back Panel (1)

ASSEMBLY

STEP 1 BACK PANEl ASSEmBly

1.
2.
D. Stile (1)
Notched Bushings (4)
NOTE: DO NOT tighten bolts until instructed to.
Place the ladder stile (D) on the floor. Be sure to
assemble on a protective surface so the finish does
not get damaged.
Bolt back panel (F) to the insides of lugs 1 with (2)
3/8-16 x 1¼" hex head cap screws and self-locking
nuts. (See Figure 1)
Para Español, vea páginas 3-4.
E. Bottom Bars (2)
Hardware Kit (1)
(misc. hardware included)
0613 IH-840U-10
