U-Line H-1936 Assembly Instructions Manual

π
ROLLING LADDER –
6-10 STEPS

TOOLS NEEDED

9/16" Wrench 9/16" Socket Wrench
Two people required
for assembly
NOTE: Upon receipt of the unit, check ladder
and bracing for any visible defects or shipping
damage.
CAUTION! Do not set up ladder if there is any
visible damage. Note any damage on waybill
and contact Uline Customer Service.

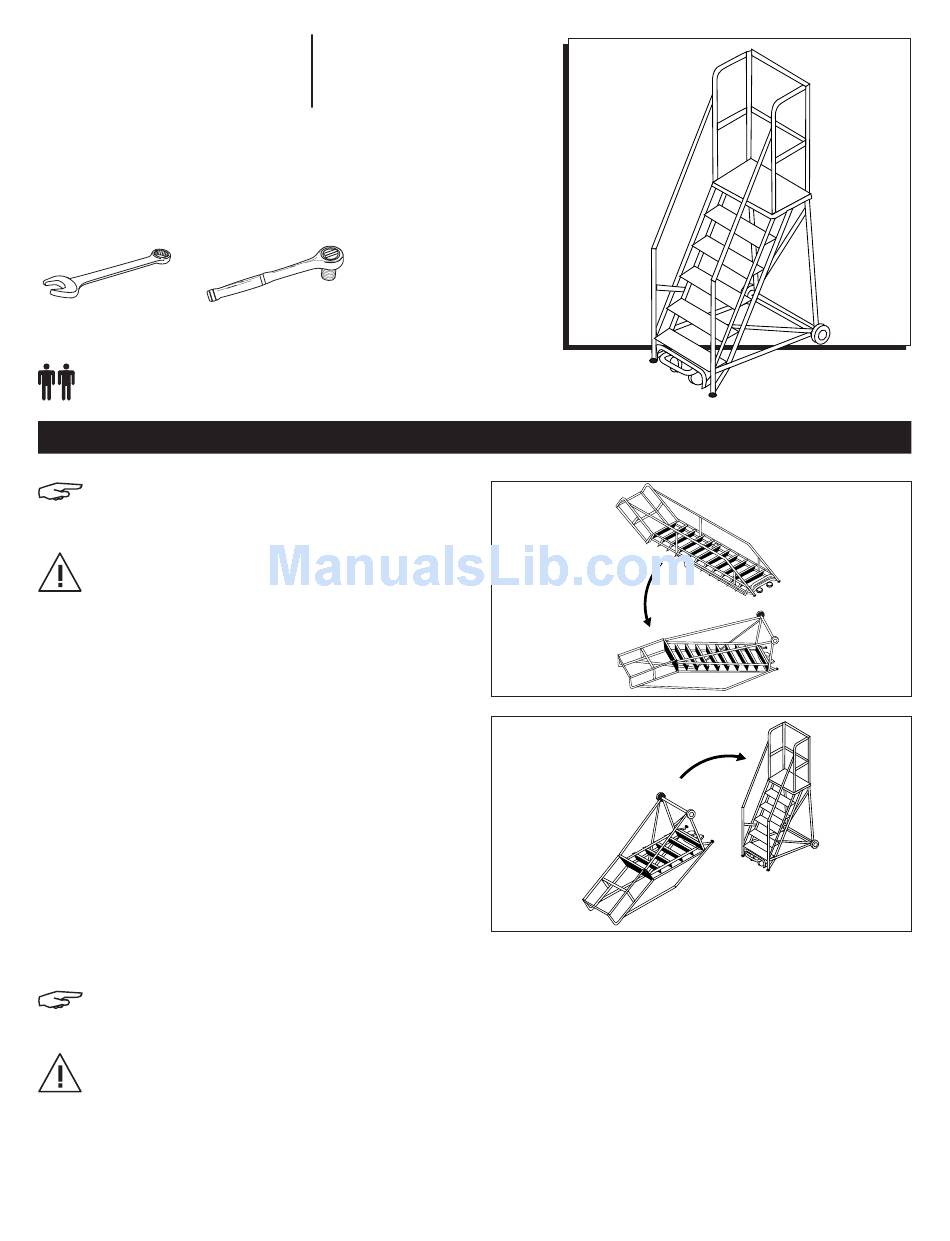

1. Position ladder with the steps and handrail facing the
floor. (See Figure 1)
2. On rear of ladder, you will find two bracing pieces
attached to ladder. One brace is attached below the
top step by two bolts. The other brace is attached at
the front of ladder near swivel casters. These bracing
pieces are to remain fixed at these points.
3. At the opposite end of braces will be a lug. Using
nuts and bolts provided, insert into the lug to join
the two sets of bracing so the wheels face toward
ceiling. (See Figure 2A)
4. Securely fasten bolts.
5. Stand near top of ladder, grab handrails and walk
forward lifting top step end into the air. Continue to
lift until the weight of ladder counters and the rear
wheels are placed on floor. (See Figure 2B)
NOTE: This may require two people.
6. Ensure ladder is level.
CAUTION! If ladder is not level, loosen bolts
slightly, allow ladder to settle and re-tighten bolts.
7. Inspect all bolted connections and wheel
assemblies to ensure proper assembly.
PAGE 1 OF 6
1-800-295-5510
uline.ca
ASSEMBLY INSTRUCTIONS
Figure 1
Figure 2
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
2A
2B
0417 IH-1936
