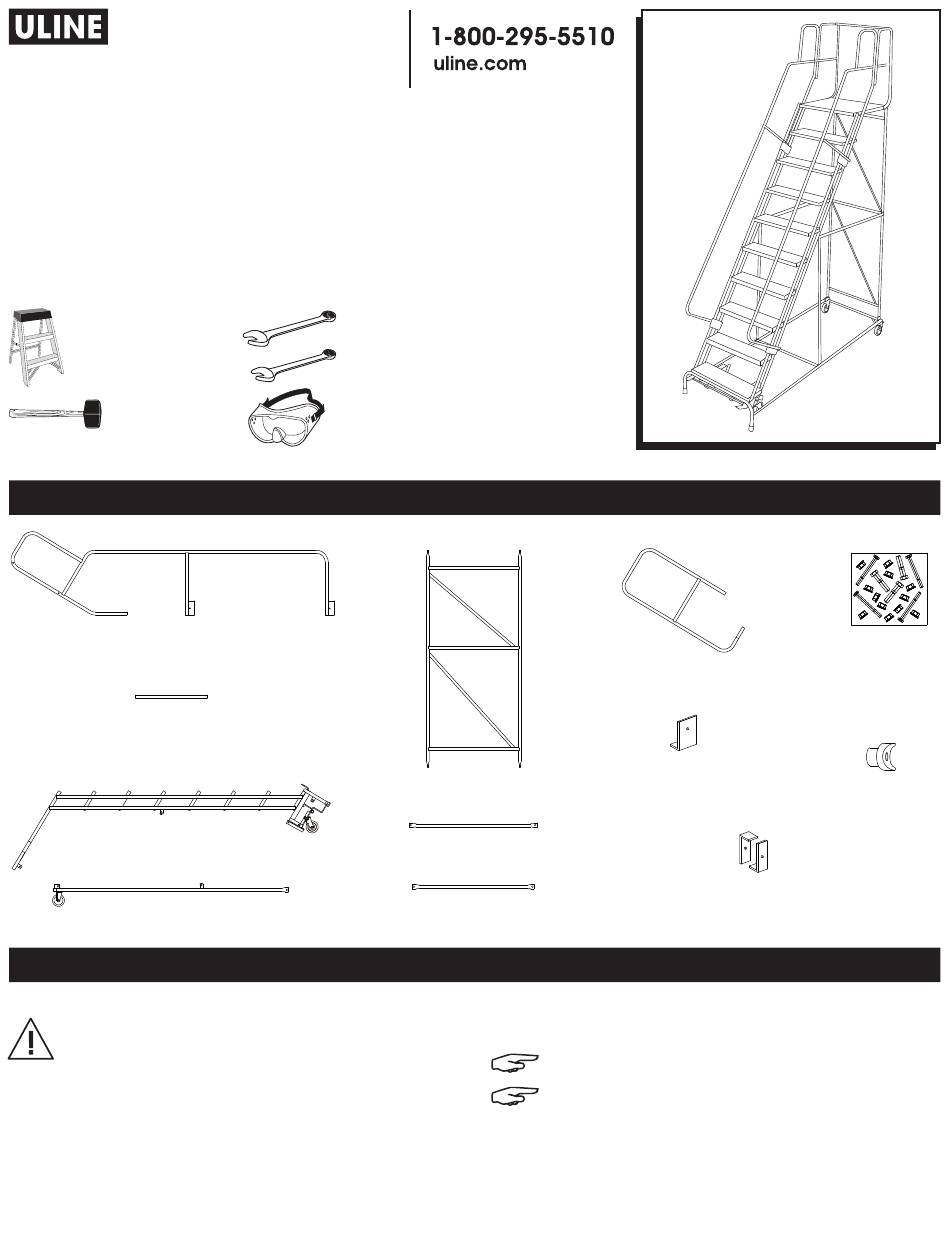

H-1084U-20, H-1084U-30, H-1085U-20
H-1085U-30, H-1554-20, H-842U-20
H-842U-30, H-844-20, H-844-30
8-12 STEP ROLLING
SAFETY LADDERS
20 AND 30" DEEP TOP STEP
TOOLS nEEdEd
Step Ladder
Rubber Mallet
A. Side Handrail (1)
b. Side Handrail (1) (Opposite)
C. Rear Handrail bar (1)
(shipped under a step attached with orange ties)
d. Stile (1)
E. base Panel (1)
WARNING! Assembly of these types of ladders
can be inherently dangerous. Please take all
necessary precautions during the assembly
process. Always use a separate ladder to
finish assembly in high places. Never climb a
ladder that is not completely assembled. Do
not assemble or use a ladder with missing or
damaged parts. Use proper lifting mechanics
when assembling a ladder. Watch for overhead
electrical hazards and obstructions.
PAGE 1 OF 3
⁄
" Wrench or Socket (2)
9
16
⁄
" Wrench or Socket
7
16
Safety Glasses
PARTS
F. back Panel (1)
G. Horizontal brace (2)
H. Vertical brace (2)
ASSEMBLY
STEP 1: FRAME ASSEMbLy
1.
Place the ladder stile (d) on the floor. be sure to
assemble on a protective surface so the finish does
not get damaged. (See Figure 1)
J. Handrail Extension Panel (2)
Handrail bracket (4)
(shipped attached to side of stile)
Handrail bracket (4)
(shipped attached to side of stile)
NOTE: DO NOT tighten bolts until instructed to.
NOTE: Back panel (F) has both round and
slotted holes. The round holes are at the bottom,
and the slotted holes are at the top (L1).
Hardware Kit (1)
(misc. hardware
Included)
notched
bushing (2)
0513 IH-1084U-20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-1084U-20
Summary of Contents for U-Line H-1084U-20
- Page 1 H-1084U-20, H-1084U-30, H-1085U-20 H-1085U-30, H-1554-20, H-842U-20 H-842U-30, H-844-20, H-844-30 8-12 STEP ROLLING SAFETY LADDERS 20 AND 30" DEEP TOP STEP TOOLS nEEdEd ⁄ " Wrench or Socket (2) Step Ladder ⁄ " Wrench or Socket Rubber Mallet Safety Glasses PARTS A.
- Page 2 ASSEMBLY CONTINUED STEP 1: FRAME ASSEMbLy COnTInuEd SINGLE HOLE 2. using (6) ⁄ -16 x 1¼" hex head cap screws & MODEL self-locking nuts, bolt the top (slotted hole) of back panel (F) to the insides of L1. (See Figure 1) SINGLE HOLE MODEL 3.
- Page 3 ASSEMBLY CONTINUED Step 5: INSTALL REAR HANDRAIL BARS detach rear handrail bar (C) from under a step by clipping orange ties. 2. Insert notched bushing into each end of rear handrail bars (C). (See Figure 2, Step 3) 3. Position rear handrail bars between mounting holes on the top part of side handrails using (4) ¼-20 x 2¾"...
