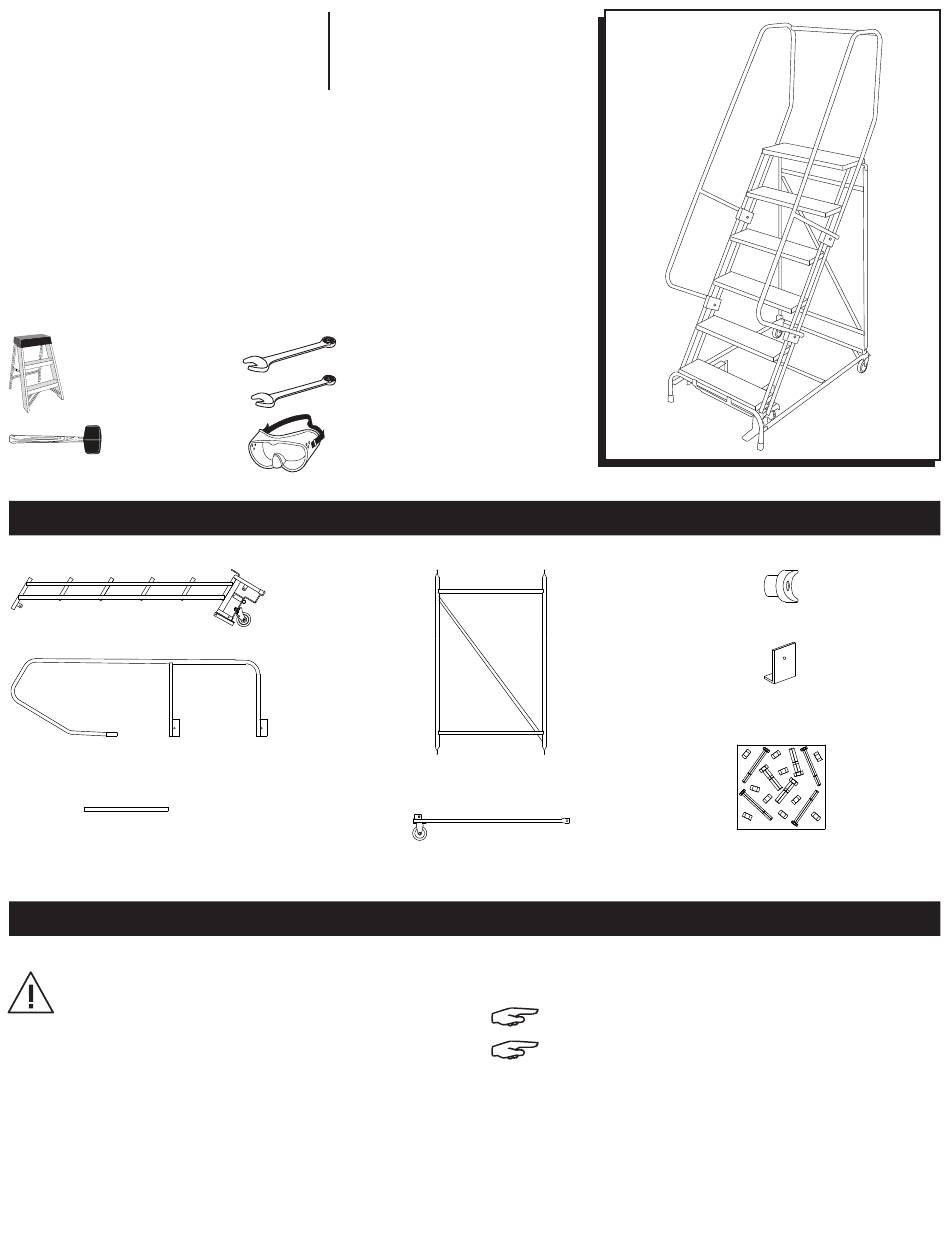

U-Line H-3130U Manual

H-3130U, H-3131U
π
H-3132U
5-7 STEP SAFETY ANGLE
ROLLING LADDERS
12" DEEP TOP STEP
TOOLS NEEDED
Step Ladder
Rubber Mallet
D. Stile (1)
A. Handrail (1)
B. Handrail (1) Opposite
C. Rear Handrail Bar (1)
(shipped under a step
attached with orange ties)
WARNING! Assembly of these types of ladders
can be inherently dangerous. Please take all
necessary precautions during the assembly
process. Always use a separate ladder to
finish assembly in high places. Never climb a
ladder that is not completely assembled. Do
not assemble or use a ladder with missing or
damaged parts. Use proper lifting mechanics
when assembling a ladder. Watch for overhead
electrical hazards and obstructions.
PAGE 1 OF 2
1-800-295-5510
uline.com
⁄ " Wrench or Socket (2)
9
16
⁄ " Wrench or Socket
7
16
Safety Glasses
PARTS
F. Back Panel (1)
E. Base Panel (1)
ASSEMBLY
STEP 1: FRAME ASSEMBLY
1. Place the ladder stile (D) on the floor. Be sure to
assemble on a protective surface so the finish does
not get damaged. (See Figure 1)
Notched Bushing (4)
Handrail Bracket (2)
(shipped attached to side of stile)
Hardware Kit (1)
(misc. hardware included)
NOTE: DO NOT tighten bolts until instructed to.
NOTE: Back panel (F) has both round and
slotted holes. The round holes are at the bottom,
and the slotted holes are at the top.
0213 IH-3130U
