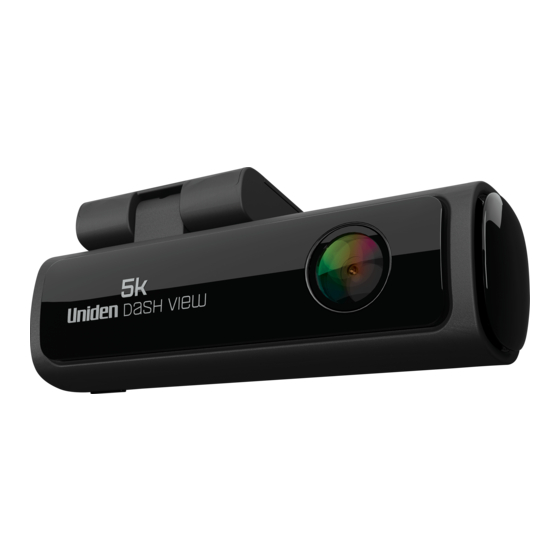

- Page 1 DASH VIEW 60+/60R Dash Cam Vehicle Recorder For more exciting new products please visit our website: Australia: www.uniden.com.au...
-
Page 3: Important Safety Instructions
Important Safety Instructions Uniden does not represent this product to be waterproof. Do not expose this product to Rain or Moisture. NOTE This product is intended for use in a motor vehicle. Don’t install the device where it will block the driver’s view of the road (including the mirrors!) or the deployment of the airbag. -
Page 4: Table Of Contents
Power Off ......................11 Recording ......................12 Set up Date/Time ....................12 Using the App ....................13 Device Settings ....................17 Connecting to PC....................20 Uniden Player ..................... 20 Troubleshooting ....................22 Specification ....................... 23 Warranty ................24 UNIDEN DASH VIEW 60+/60R Vehicle Recorder... -
Page 5: What's In The Box
Endurance Micro with sticker mount SD Card Cigarette Charger Hardwiring Kit Converting Cable for Dash View 60R Rear Camera rear camera (Uniden (Uniden Dash View 60R Dash View 60R Only) Only) • Protection film • Sticker mount bracket • 3M Sticker •... -
Page 6: Controls & Indicators
Controls & Indicators Uniden Dash View 60+ Uniden Dash View 60R UNIDEN DASH VIEW 60+/60R Vehicle Recorder... - Page 7 Press the reset button by using a fine pen or paperclip. Type-C USB Port Type-C USB port for charging and rear camera. Micro SD Card Insert micro SD Card (up to 256GB min Class U3). Slot Sliding Bracket UNIDEN DASH VIEW 60+/60R Vehicle Recorder...
-
Page 8: Installation
Remove the Camera from Sliding Bracket To remove the camera from windscreen. Hold the camera firmly, slide it harder horizontally to the left in OPEN direction. The camera can slide out of the bracket. UNIDEN DASH VIEW 60+/60R Vehicle Recorder... -
Page 9: Installing The Rear Camera
Cigarette Charger or Hardwiring kit (HWK-3) Connect to Rear Camera Connect to Front Camera Converting Cable for Rear Camera You may also refer to the latest Owner’s Manual available on the Uniden website for further information. NOTE UNIDEN DASH VIEW 60+/60R Vehicle Recorder... -
Page 10: Installing The Optional Hardwiring Kit
4. Start your vehicle to see if it works. Arrange and hide the cables to avoid obstruction for the driver’s view. It is advisable to get a car electrician to professionally install the hardwiring kit. UNIDEN DASH VIEW 60+/60R Vehicle Recorder... -
Page 11: Operation
For the first time use, it takes about 15~20 minutes to get GPS signal, and after that, it normally takes about 3 minutes. Please download Uniden Dash View App to check GPS Information. Sticker mount is difficult to remove after it is installed and will not stick well on a curved/textured or wet surface. -
Page 12: Power On
The Dash VIEW 60+/60R has an in-built high quality, long life supercapacitor. It provides enough backup power to ensure any recording in progress is stored safely before shutting the camera off. For the first time use, it is advisable to format the SD Card. NOTE UNIDEN DASH VIEW 60+/60R Vehicle Recorder... -
Page 13: Recording
‘Settings’ and tap ‘Time Sync’ to ensure that the Date and Time is synchronized correctly. Daylight Saving Time If you need to adjust for Daylight Saving Time, you can set up via the Uniden Dash View App. By default, Daylight Saving Time is set to OFF. UNIDEN DASH VIEW 60+/60R... -
Page 14: Using The App
Using the App The Uniden Dash View App allows you to control the Dash View camera via WiFi. You can easily preview, browsing files, playback and download the files in the SD card into your mobile phone. The app also allows you to make changes to the device setting. - Page 15 Downloaded Video Tap the Downloaded Video tab to view or playback downloaded photos or videos even when then the camera is not connected. About Tap to view App information or clear App cache data. UNIDEN DASH VIEW 60+/60R Vehicle Recorder...
- Page 16 Live View Back Device Settings SD Card Full Screen Mode File Recording Timer Snapshot Recording Resolution Recording Switch SD File Microphone Resolution settings Switch Mode Camera View Switch UNIDEN DASH VIEW 60+/60R Vehicle Recorder...
- Page 17 Indicates the selected recording resolution. Full Mode Tap to view live video preview in full screen mode. Device Settings Modify camera settings. You can change WiFi SSID and password in the Camera Settings using the App. NOTE UNIDEN DASH VIEW 60+/60R Vehicle Recorder...
-
Page 18: Device Settings
Use this setting to enable or disable audio recording. Time Stamp Opt to have the date and time displayed on the recordings. G-Sensor This functions helps protect/lock video files in case of a sudden movement/collision. Off/Low/ Mid/High. UNIDEN DASH VIEW 60+/60R Vehicle Recorder... - Page 19 Allow to switch the Speed Unit measurement either as KM/H or MPH. GPS Information To view the GPS signal connection status and strength. Volume Adjust the camera volume level. OFF/Low/Middle/ High Welcome Sound Camera start/shut down sound. UNIDEN DASH VIEW 60+/60R Vehicle Recorder...
- Page 20 Enable or disable this feature to use voice commands to operate the camera Voice Command List of commands recognised by the camera. Switching Recording On/Off: “Uniden, Turn Off recording” | “Uniden, Open Recording” Take a snapshot: “Uniden, take picture” Lock the current recording file: “Uniden, lock the video”...
-
Page 21: Connecting To Pc
The Dash View 60+/60R cannot be directly connected a PC. Uniden Player Uniden Player allows you to view the recordings on the Dash View camera and trace GPS route on a map. The software is supported on Windows 7, Windows 8 Windows 10 and on macOS. - Page 22 Ensure that the PC is connected to the internet to view the map screen. 2. Click on the folder icon or select disk to open the files on to the Uniden Player. Click “Select Folder”. Only folder can be played.
-
Page 23: Troubleshooting
Cool it down and try again. The recorded video Please ensure the PC is connected to internet. doesn’t show mapping information on the Uniden Player. If you still require assistance, visit our website or call our customer service. UNIDEN DASH VIEW 60+/60R Vehicle Recorder... -
Page 24: Specification
5GHz (up to 10m line of sight) Storage microSD (up to 256GB), U3 and above Power Input 5V 2.5A Supercapacitor 5.5V 3.5F Operating Temperature -10°C ~ 60°C Storage Temperature -20°C ~ 70°C Working Humidity 10 ~ 80% UNIDEN DASH VIEW 60+/60R Vehicle Recorder... -
Page 25: Warranty
IMPORTANT: Satisfactory evidence of the original purchase is required for warranty service Please refer to our Uniden website for any details or warranty durations offered in addition to those contained below. Warrantor: The warrantor is Uniden Australia Pty Limited ABN 58 001 865 498 (“Uniden Aust”). - Page 26 Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden. Please refer to the Uniden website for address details. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
- Page 28 © 2024 Uniden Australia Pty Limited. Printed in China V1.4...
