Summary of Contents for Uniden DASH VIEW 40R

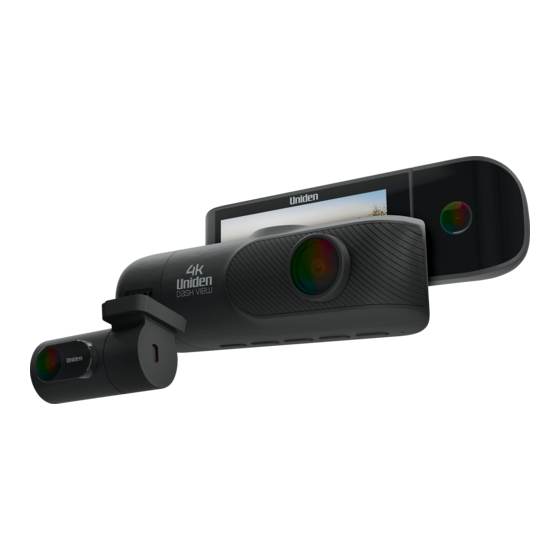

- Page 1 DASH VIEW 40R Dash Cam Vehicle Recorder For more exciting new products please visit our website: Australia: www.uniden.com.au...
-
Page 3: Important Safety Instructions
Important Safety Instructions Uniden does not represent this product to be waterproof. Do not expose this product to Rain or Moisture. NOTE This product is intended for use in a motor vehicle. Don’t install the device where it will block the driver’s view of the road (including the mirrors!) or the deployment of the airbag. -
Page 4: Table Of Contents
Big Speedo ......................12 Go to Record Settings ..................12 Change Settings ....................14 Playback mode ....................15 Using the App ....................16 Device Settings ....................18 Uniden Player ..................... 22 Troubleshooting ....................23 Specification ....................... 24 Warranty ................25 UNIDEN DASH VIEW 40R Vehicle Recorder... -
Page 5: What's In The Box
What’s In The Box Make Sure These Items Arrived in the Box Uniden Dash View 40R 32GB MLC High with sticker mount Endurance Micro bracket attached SD Card Cigarette Charger Hardwiring Kit Micro USB cable • Protection film • Sticker mount bracket •... -
Page 6: Controls & Indicators
Controls & Indicators Uniden Dash View 40R 11 12 13 UNIDEN DASH VIEW 40R Vehicle Recorder... - Page 7 Rear Camera Lens Rear Camera Lens on 1080P resolution Rear/Front Connect to Front Camera. Camera Port You may also refer to the latest Owner’s Manual available on the Uniden website for further information. NOTE UNIDEN DASH VIEW 40R Vehicle Recorder...
-
Page 8: Installation
6. Adjust the viewing angle of the camera by rotating the body of the camera. We recommend the camera should point slightly downwards ~10° below eye level. Do not install the product in a location where it can obstruct the driver’s field of vision. NOTE UNIDEN DASH VIEW 40R Vehicle Recorder... -
Page 9: Installing The Rear Camera
It is advisable to get a car electrician to professionally install the hardwiring kit. Before installing the HWK-1A kit, please ensure there is no SD Card installed on the camera unit. Only install the SD card once the HWK-1A kit is finish installing. NOTE UNIDEN DASH VIEW 40R Vehicle Recorder... -
Page 10: Operation
It is important to format the micro SD card before using it, so as to avoid any damage to the files created on DASH VIEW 40R. Uniden only recommends using good quality MLC/SLC Endurance micro SD cards for dash cam recording. Please check with SD card manufacturer to ensure that the SD card used is rated for Dash Cam recording. -
Page 11: Power On
The device is designed mainly for in-vehicle use, drawing on vehicle power or the vehicle battery when using the hardwing kit (HWK-1A). The Dash VIEW 40R has an in-built high quality, long life supercapacitor. It provides enough backup power to ensure any recording in progress is stored safely before shutting the camera off. -
Page 12: Recording
While the device is recording, you can take a snapshot by pressiing the take photo button If the menu is hidden, press any button at the side of the device to reveal the menu icons. NOTE UNIDEN DASH VIEW 40R Vehicle Recorder... -
Page 13: Big Speedo
PIP Front Full Screen, PIP Inside Full Screen, PIP Rear Full Screen, Front Camera, Inside Camera, Rear Camera. If you want to view videos or photos, simply press button to enter Video Playback mode. For futher details, refer to the Playback Mode instructions. UNIDEN DASH VIEW 40R Vehicle Recorder... - Page 14 Camera Alert Overspeed Alert Volume Setting Sound Recording Headlight Reminder Fatigue Driving Alert Parking Monitor Date/Time Car Plate Stamp Watermark WiFi Format SD Card Format Reminder Restore Default GPS Signal Memory Card Info About UNIDEN DASH VIEW 40R Vehicle Recorder...
-
Page 15: Change Settings
Change Settings In the record menu settings, press the relevant keys to scan through the various settings and then press OK to select or confirm selection. Press the button to return and exit the Menu. UNIDEN DASH VIEW 40R Vehicle Recorder... -
Page 16: Playback Mode
OK button to confirm, then press to play the file. During file playback, press button to play/pause the video file, press the button the delete the selected file or button to toggle to the next file. UNIDEN DASH VIEW 40R Vehicle Recorder... -
Page 17: Using The App
NOTE Using the App The Uniden DV app allows you to control the Dash View camera via WiFi. You can easily preview, browsing files, playback and download the files in the SD card into your mobile phone. The app also allows you to make changes to the device setting. - Page 18 Tap the Downloaded Video tab to view or playback downloaded photos or videos even when then the camera is not connected. You can change WiFi password in the Camera Settings using the app. NOTE UNIDEN DASH VIEW 40R Vehicle Recorder...
-
Page 19: Device Settings
Opt to have the live viewing and Big Speedo. Cabin Camera Turn on/off the Cabin Camera. Turn on/off the Wide Dynamic Range (WDR) feature to improves the overall exposure throughout your entire image. Screen Saver Screen Saver option UNIDEN DASH VIEW 40R Vehicle Recorder... - Page 20 Resets the device to factory settings. Note that Setting restoring defaults will not erase data on the SD card. Memory Card Indicates the remaining capacity of the inserted micro Information SD card. About Display the device firmware, SN and version. UNIDEN DASH VIEW 40R Vehicle Recorder...
- Page 21 However, if motion is detected, the device record 1 frame per second (1FPS) continually for 10mins. If motion is still detected at 9mins50s mark for the second time, the device will contiune record 1FPS for 10mins. UNIDEN DASH VIEW 40R Vehicle Recorder...
- Page 22 Emergency folder. Uniden DV Player Uniden DV Player allows you to view the recordings on the Dash View camera and trace them on a map. The software is supported on Windows 7, Windows 8 Windows 10 and on macOS.
-
Page 23: Uniden Player
Controls Ensure that the PC is connected to the internet to view the map screen. 2. Click on the folder icon or select disk to open the files on to the Uniden Player. 3. Click on the PLAY button (Playback Controls) to start playback. -
Page 24: Troubleshooting
Cool it down and try again. The recorded video Please ensure the PC is connected to internet. doesn’t show mapping information on the Uniden Player. If you still require assistance, visit our website or call our customer service. UNIDEN DASH VIEW 40R Vehicle Recorder... -
Page 25: Specification
2.4GHz (up to 10m line of sight) Storage microSD (up to 512GB), Class 10 and above Power Input 5V 2.4A Supercapacitor Operating Temperature -10°C ~ 60°C Storage Temperature -20°C ~ 70°C Working Humidity 10 ~ 80% UNIDEN DASH VIEW 40R Vehicle Recorder... -
Page 26: Warranty
(“Uniden Aust”). Terms of Warranty: Uniden Aust warrants to the original retail purchaser only that the DASH VIEW 40R (“the Product”), will be free from defects in materials and craftsmanship for the duration of the warranty period, subject to the limitations and exclusions set out below. - Page 27 Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden. Please refer to the Uniden website for address details. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
- Page 28 © 2024 Uniden Australia Pty Limited. Printed in China V1.3...
