Mercia Garden Products 0644CVNE0403HGDD3SW-V1 Manual

44mm log cabin, curved roof, no extras, 4mx3m, half glazed double doors, three short window
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 0644CVNE0403HGDD3SW-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 0644CVNE0403HGDD3SW-V1

Summary of Contents for Mercia Garden Products 0644CVNE0403HGDD3SW-V1

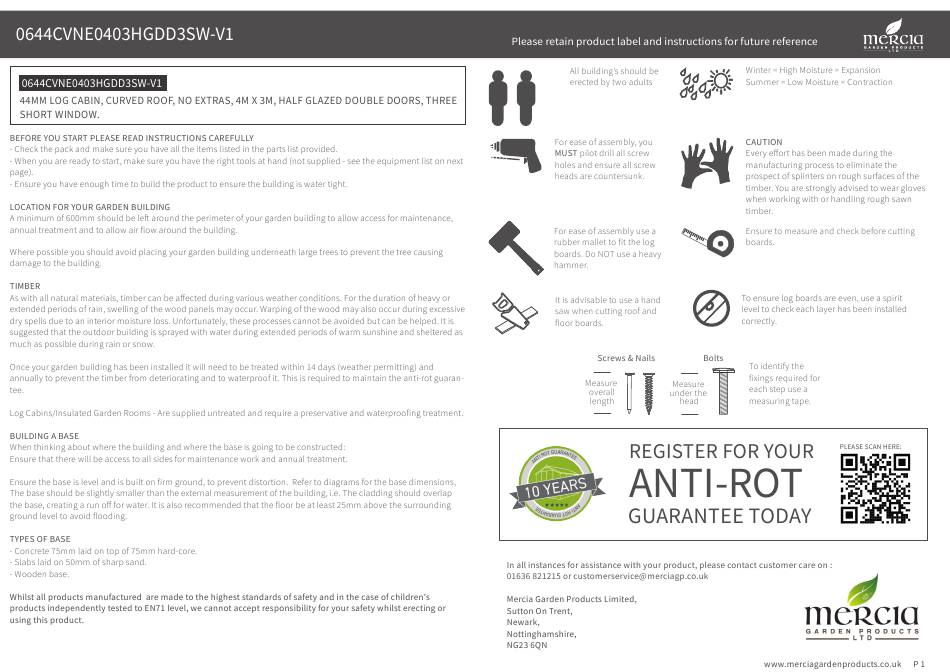

  • Page 1 2mm Drill bit...
  • Page 3 Double Door Contents: Before assembly please make sure you have a suitable base ready to erect your building MADE IN GREAT BRITAIN Overall Dimensions: Base Dimensions: Width = 4064mm Width = 3818mm Depth = 3486mm Depth = 2817mm Height = 2600mm Master Door QTY 1 Secondary DoorQTY 1 AI-06LOGDGSD750X1900-V3...
  • Page 4 Log Board - 44x120x232mm QTY 24 Gable A QTY 1 LB44-B-232mm AI-0644CV3-G-V1 Log Board - 44x120x232mm QTY 24 Gable B QTY 1 LB44-C-232mm AI-0644CV3-G-V1 Log Board - 44x120x4000mm QTY 1 LB44-AD-4000mm Gable C QTY 1 AI-0644CV3-G-V1 Log Board - 44x120x1215mm QTY 12 LB44-B-1215mm Gable D QTY 1 AI-0644CV3-G-V1...

  • Page 5: Pre-Assembly

    Pre-assembly Back Eaves Frame - 27x44x4004mm QTY 1 F2744-4004mm *Please note: Front Eaves Frame - 44x58x3730mm QTY 1 Each board interlocks at either end in a staggered pattern. F4458-3730mm Before securing ensure that the boards are tted properly in their respective Roof Trim - 16x30x3492mm QTY 2 tongues and grooves S1630-3.492mm...
  • Page 6 Step 2 Step 1 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 44 QTY 8 Parts Needed - No. 43 QTY 2 No. 44 QTY 2 Arrange the remaining bearers (No.44) inside the assembled Lay the bearers (No.
  • Page 7 Step 3 Step 4 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 32 QTY 2 Parts needed - No. 33 QTY 11 No. 33 QTY 2 No. 34 QTY 6 No. 38 QTY 12 Place the starter boards (No. 32) on to assembled base frame along the longest No.
  • Page 8 Step 5 IMPORTANT : Pre-drill before xing screws. Step 6 IMPORTANT : Pre-drill before xing screws. Parts Needed - No. 11 QTY 1 Parts Needed - No. 9 QTY 1 No. 12 QTY 1 No. 10 QTY 1 No. 13 QTY 1 No.
  • Page 9 Step 7 Step 9 To adjust and align your doors: Parts needed - No. 33 QTY 6 No. 34 QTY 6 1. Lift up the doors to separate the two parts of No. 35 QTY 12 the hinge. No. 36 QTY 12 No.
  • Page 10 IMPORTANT : Pre-drill before xing screws. Step 10 Step 11 IMPORTANT : Pre-drill before xing screws. Parts Needed - No. 2 QTY 3 Parts Needed - No. 1 QTY 3 No. 3 QTY 3 No. 7 QTY 6 No. 4 QTY 3 No.
  • Page 11 Step 13 Step 15 IMPORTANT : Pre-drill before xing screws. Parts needed - No. 41 QTY 1 Part needed - No. 26 QTY 1 No. 35 QTY 12 No. 31 QTY 1 No. 36 QTY 12 No. 42 QTY 2 No.
  • Page 12 Step 16 Step 17 IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws. Parts needed - No. 48 QTY 5 Parts needed - No. 50 QTY 1 Align the Roof Purlin(s) (No. 48) into Locate the Front Eaves Frame (No.50) the cut out slots on each gable, between the top most Gable boards, ensuring each purlin interlocks the...

  • Page 13: Important Note

    Step 18 IMPORTANT : Pre-drill before xing screws. Parts needed - No. 45 QTY 39 Using a straight edge and a pencil, measure 76mm from the tongue edge of one Roof board (No.45). Cut along the pencil mark, ensuring that the 76mm side has the tongue remaining and remove the excess.
  • Page 14 Step 19 Step 20 IMPORTANT : Pre-drill before xing screws. Parts needed - No. 49 QTY 1 Lift each window onto the already existing Ensuring the roof boards are ush at hooks on the window frame, ensuring the the front and back of the building, hook and bands connect.
  • Page 15 Step 22 Step 23 IMPORTANT : Pre-drill before xing screws. Parts Needed - No. 18 QTY 1 Lift each door onto the already existing No. 19 QTY 1 The Mortice Lock is Reversible No. 20 QTY 1 hooks on the door frame, ensuring the hook and bands connect.
  • Page 16 Step 24 Step 25 IMPORTANT : Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 15 QTY 1 Parts needed - No. 46 QTY 36 No. 21 QTY 2 Place the rst oor board (No. 46) inside Attach the Door Strip (No.
  • Page 17 Step 26 Step 28 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 53 QTY 6 Parts needed - No. 54 Inside the building place the closure Roof Roof Cut the Felt (No. 54) into four strips trim (No. 53) against the boarding measuring: 4170mm (L) X 1000mm (W).
  • Page 18 Step 29 IMPORTANT : Pre-drill before xing screws. Step 30 IMPORTANT : Pre-drill before xing screws. Parts needed - No. 51 QTY 2 Parts needed - No. 47 QTY 4 Locate the Roof Trims (No. 51) on Locate the Fascias (No.47) onto the the underside of the Roof at the front and back of the building as sides, ensuring the trim is ush to...
  • Page 19 Step 32 Step 31 IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws. Parts Needed: No. 6 QTY 3 Parts needed - No. 52 QTY 8 No. 16 QTY 1 Arrange the storm braces (No.52) around Attach the Rain Guards (No.6) to the building (internally).
