Installation and Operating
WARNING: Failure to follow these instructions and comply with all applicable
codes may cause serious bodily injury and/or property damage.
The installation of this product should be carried out by a person knowledgable
in swimming pool plumbing requirements following the installation instructions
provided in this manual.
Please pass these instructions on to the operator of this equipment.

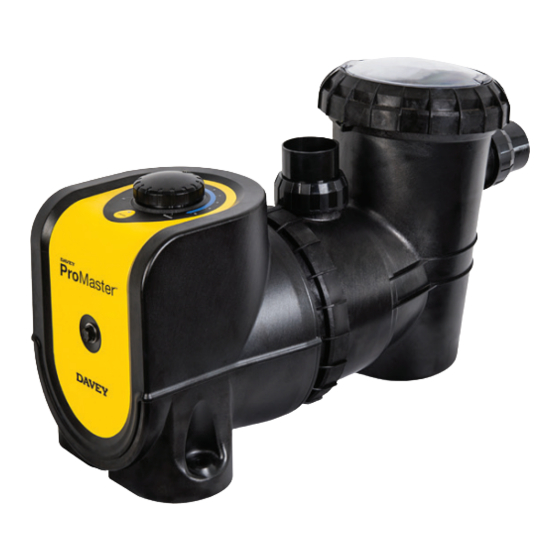

VSD ECO-SERIES
Instructions
Model: PM200SV
™
Advertisement
Table of Contents
Related Manuals for Davey ProMaster VSD ECO Series
Summary of Contents for Davey ProMaster VSD ECO Series
- Page 1 ProMaster ™ VSD ECO-SERIES Installation and Operating Instructions Model: PM200SV WARNING: Failure to follow these instructions and comply with all applicable codes may cause serious bodily injury and/or property damage. The installation of this product should be carried out by a person knowledgable in swimming pool plumbing requirements following the installation instructions provided in this manual.
- Page 2 Congratulations on the purchase of a quality product from the Davey Water Products range of Pool and Spa Equipment. You are assured of many years of reliable and super-efficient performance from your Davey ProMaster VSD Eco-Series pump. Read these instructions in their entirety before switching on this pump. If...
- Page 3 If you are using the low flow setting on the ProMaster pump (e.g.: speed 1 to 4) Davey recommends that you check the compatibility of the speed or minimum flow rate required to run pool equipment such as: •...
-
Page 4: Technical Specifications
Technical Specifications: Model PM200SV Head (m) Speed 0 to 10 From – 1500 to 3600 Backwash Speed – 3800 Enclosure Class (IP) Insulation Class Voltage (V) 220/240 AC Supply Frequency (Hz) 50/60 Speed Setting 1 - 116W / 0.16 hp Speed Setting 5 - 488W / 0.65 hp Motor Input Power (W / hp) Speed Setting 10 –... - Page 5 Extension cords are unsafe around pools - and should be avoided. If the supply cord of this product is damaged it must be replaced by the dealer or manufacturer, with genuine Davey spares. This ProMaster pool pump incorporates motor overload detection designed to protect the motor from overheating.
- Page 6 Davey Water Products recommends that all installations are fitted with earth leakage or residual current protection devices. CAUTION: In the interest of safety, we advise that all brands and types of pool pumps must be installed in accordance with AS3000 wiring rules or equivalent.
-
Page 7: Pipe Connection
Pipe Connection Barrel unions are provided for connecting to the piping from the pool. The pumps are designed to accept 40mm/50mm PVC fittings. When plumbing the discharge pipe, ensure that the pipework does not interfere with the pumps speed dial. The use of any pipe smaller than those specified above is not recommended. - Page 8 Low Energy Operation: Your ProMaster VSD Eco-Series pump has speed settings from 1500 to 3600 RPM: - 1500 – Lowest Speed, 1 - 3600 – Highest Speed, 10 - 3800 – Backwash Speed • Speed 1 provides the lowest speed and therefore the greatest energy efficiency and savings.
- Page 9 VSD Eco-Series pump with a Davey Salt Water Chlorinator: Davey ChloroMatic and EcoSalt salt water chlorinators require a minimum flow rate of 80 litres per minute (lpm) through the chlorinator cell for best efficiency and cell life. Please refer to the performance graph below as a reference for the flow in your pool and refer to the pressure indicated by the gauge on the media or cartridge filter.
- Page 10 3. Select the speed setting that enables best performance from your suction pool cleaner. Speed 3 to 7 should be ample for most cleaners, however if the cleaner requires better performance, select speeds 7 to 10. A Davey Frill-NeckWIZARD suction pool cleaner is recommended to run between ®...
- Page 11 5. Check the strainer basket for cracks, replace the strainer basket in the pump if OK. 6. Replace the lid and ensure that it seals on the large rubber o’ring. Firm hand tightness only is required. The o’ring & thread can be lubricated with Hydra slip or equivalent products.
-
Page 12: Troubleshooting
, contact the supplier from whom the pump was ™ purchased or your nearest Authorised Davey Pool Equipment Service Centre. If any further assistance is required, contact the Davey Customer Service Centre at the address indicated in this manual. LED Signal & Function... -
Page 13: Water Quality
Removal of the Pump from Pipework Should it be necessary to remove the pump, follow these instructions: 1. Switch off the power and remove the plug from the power source. NOTE: If the pump is wired into a time clock or another automatic control, the wiring should be removed by a qualified technician. - Page 14 POWER CONNECTIONS AND WIRING MUST BE CARRIED OUT BY AN AUTHORISED ELECTRICIAN. DANGER - Hazardous suction. Do not block water entry into filtration system with any part of your body as the pressure can trap hair or body parts, causing severe injury or death. Do not block suction. Turn off pump immediately if someone becomes trapped.
- Page 15 Customer Service line on 1300 367 866 in Australia, or 0800 654 333 in New Zealand, or send a written letter to Davey at the address listed below. On receipt of your claim, Davey will seek to resolve your difficulties or, if the product is faulty or defective, advise you on how to have your Davey product repaired, obtain a replacement or a refund.
