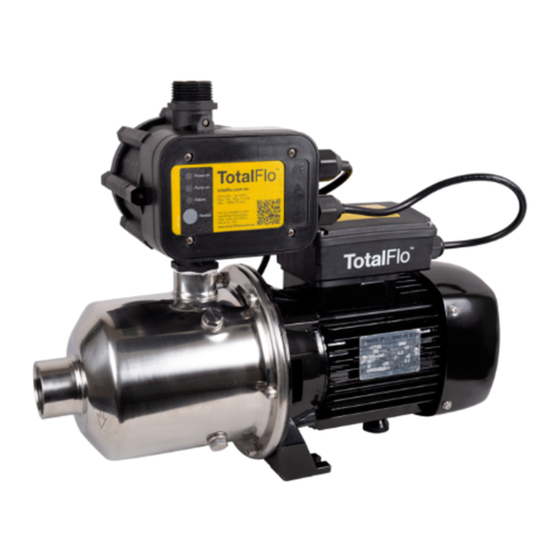

- Page 1 TotalFlo ™ Jet Pumps Multistage Pumps Installation and Operating Instructions Please pass these instructions on to the operator of this equipment.
-
Page 2: Choosing A Site
SOLAR WARNING: This Equipment is not suitable for use with Solar Panel Power Supply. Congratulations on your purchase of an TotalFlo quality water pressure system. All components have been designed and manufactured to give trouble free, reliable operation. Before installing your new pump, please read all instructions carefully as failures caused by incorrect installation or operation are not covered by the guarantee. - Page 3 Electrical Power Surge Protection An electrical power surge or spike can travel on the supply lines and cause serious damage to your electrical equipment. The controller fitted to this pump has a metal oxide varistor (MOV) fitted to help protect it’s circuit. This MOV is a “sacrificial”...
- Page 4 Priming and Operation Automatic Water Pressure System Fill pump and suction line through the pump discharge or priming port (on flooded suction, simply open gate valve to pump). Ensure outlet nearest to pump is open. Ensure all valves in suction line are open and switch on pump at power outlet. There will be a delay of less than 1 second before the pump starts.
-
Page 5: Troubleshooting Checklist
Trouble Shooting Check List MOTOR DOESN’T START WHEN SWITCHED ON Power not connected. Supply voltage too low. “Over temperature” cut-out tripped. Motor not free to turn eg. a jammed impeller. Internal motor fault. MOTOR DOES NOT START WHEN TAP IS OPENED Automatic switch has detected loss of prime. - Page 6 NOTES ~ 6 ~...
- Page 7 ~ 7 ~...
- Page 8 A Quick Reference Guide is included with the product when purchased new and for detailed Installation and Operating Instructions please visit TOTALFLOPUMPS.COM. This warranty is given by Davey Water Products Pty Ltd. For further information, please contact us at: TotalFlo ™...
