Installation and
Operating Instructions for
RVM Pump Sets
NOTE: Prior to installation remove the inlet and outlet pipe
transport plugs & associated seals from the suction and/or
discharge ports.
WARNING : The RVM system and associated pipework operate under pressure.
Under no circumstances should the RVM System or associated pipework be
disassembled unless the internal pressure of the unit has been relieved. Failure to
observe this warning will expose persons to the possibility of personal injury and
may also result in damage to the pump, pipework or other property.
WARNING: Failure to follow these instructions and comply with all applicable
codes may cause serious bodily injury and/or property damage.
Please pass these instructions on to the operator of this equipment.
Advertisement
Table of Contents
Related Manuals for Davey RVM Series
Summary of Contents for Davey RVM Series
- Page 1 Installation and Operating Instructions for RVM Pump Sets NOTE: Prior to installation remove the inlet and outlet pipe transport plugs & associated seals from the suction and/or discharge ports. WARNING : The RVM system and associated pipework operate under pressure. Under no circumstances should the RVM System or associated pipework be disassembled unless the internal pressure of the unit has been relieved.
-
Page 2: Table Of Contents
CONTENTS RVM SERIES PUMP SET COMPONENTS RVM Water Pressure System RVM Water Pressure System with Loss-Of-Prime Control Box RVM Remote Start System with Loss-Of-Prime Control Box PRESSURE SWITCH TANK PRECHARGE CHOOSING A SITE POWER CONNECTION PIPE CONNECTIONS WHERE TO USE CHECK VALVES AND FOOT VALVES... -
Page 3: Rvm Series Pump Set Components
It should not be used for any other purpose without specific referral to Davey. The use of the pump to handle flammable, corrosive and other materials of a hazardous nature is specifically excluded. These instructions should be read in conjunction with the VM Series Vertical Multistage Pump Operating &... -
Page 4: Rvm Water Pressure System With Loss-Of-Prime Control Box

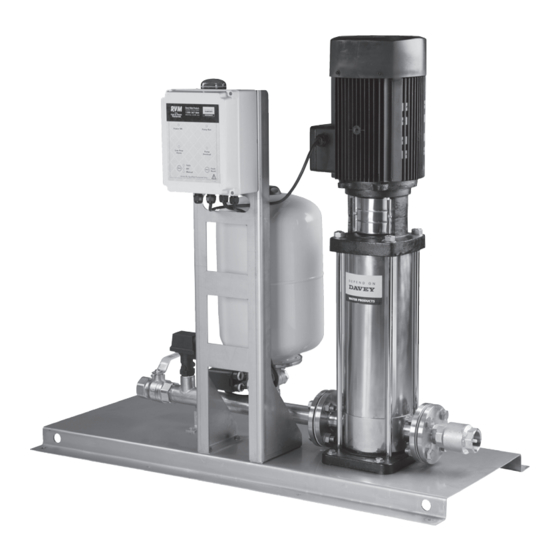

RVM WATER PRESSURE SYSTEM WITH LOSS-OF-PRIME CONTROL BOX RVM Series pump set components: 1. VM pump and motor 2. Base plate 3. Check valve 4. Discharge manifold 5. Pressure gauge (Not shown) 6. Pressure switches 7. Isolation valve 8. Flow switches 9. Pressure tank 10. RVM water pressure system control box... -
Page 5: Rvm Remote Start System With Loss-Of-Prime Control Box
RVM REMOTE START SYSTEM WITH LOSS-OF-PRIME CONTROL BOX (RVM MANUAL/AUTOMATIC START SYSTEM WITH LOSS-OF-PRIME CONTROL BOX comes with same components as the remote start system but has a different control box) RVM Series pump set components: 1. VM pump and motor 2. Base plate 3. Check valve 4. Discharge manifold 5. Isolation valve 6. Flow switches 7. RVM water pressure system control box... -
Page 6: Pressure Switch
The pressure tank fitted to your Davey pump set should be pre-charged with air to a value of 15kPa below the cut in pressure. Refer to the table in the maintenance section of these instructions. CHOOSING A SITE Choose a site with a firm base and as close to the water source as possible with correct power supply. Make sure your pressure pump is always connected to an adequate, reliable source of clean water. Housing your Davey Pump: To protect your pump from the weather, make sure the housing is both water proof, frost free and has adequate ventilation. The pump set should be mounted on its base in a firm dry area allowing for drainage, to avoid damage due to flooding etc., that over time may occur from leaking pipe joints or pump seals. WARNING: Some insects, such as small ants, find electrical devices attractive for various reasons. If your pump enclosure is susceptible to insect infestation you should implement a suitable pest control plan. -
Page 7: Pipe Connections
CONNECTION OF MAINS SCHEME OR TOWN WATER SUPPLY TO EITHER SUCTION OR DISCHARGE OF PUMP Most Water Supply Authorities have strict regulations regarding direct connection of pumps to mains water supplies. In most cases an isolating storage tank is required between mains supply and pump — Davey also recommend this method. Directly applied mains pressure can exceed pump operating pressure and damage pump. Davey Water Products Pty. Ltd. cannot accept responsibility for loss or damage resulting from incorrect or unauthorised installations. PRIMING AND OPERATION 1. After installing pump set shut the discharge gate valve 2. Fill pump, suction line and discharge assembly with water via the priming ports. On flooded suction simply open suction gate valve to the pump set. When full, fit priming plugs and hand tighten firmly. -
Page 8: Maintenance
MAINTENANCE The only regular attention your new pump set requires is to check the pressure tank’s air charge every 6 months. This can be checked at the air valve with a tyre gauge. Do not charge tank to a higher pressure than 15 kPa below cut-in pressure setting. To check air pressure in tank: 1. Switch off pump. 2. Open outlet nearest to pump to release water pressure. 3. Remove air valve cap from top of Supercell tank and charge tank to correct pressure using air pump and check with tyre gauge. 4. Reprime system and switch on. NOTE: Your pump is designed to operate as an automatic pressure system. The pressure tank will require a specific precharge air pressure dependent upon model. While your pressure tank may have been precharged in manufacture, the precharge pressure should be checked upon installation and every 6 months thereafter. -
Page 9: Pump Controller Operation - Pressure Start
PUMP CONTROLLER OPERATION R100 P PRESSURE START Loss of Prime Protection with 1300 367 866 Pump Run Power ON Low Flow Pump Alarm Overload Auto Fault PRESS PRESS Reset Manual Access By Qualified Personnel Only P/N 13948-1 INDICATORS POWER ON: The main power supply to the control box is on. PUMP RUN: The pump is operating. LOW FLOW ALARM: Water flow has stopped with water pressure below the cut-in pressure setting. -
Page 10: Pump Controller Operation - Remote Start
PUMP CONTROLLER OPERATION R100 R REMOTE START Loss of Prime Protection with 1300 367 866 Pump Run Power ON Low Flow Pump Alarm Overload Auto Fault PRESS PRESS Reset Manual Access By Qualified Personnel Only P/N 14238 INDICATORS POWER ON: The main power supply to the control box is on. PUMP RUN: The pump is operating. LOW FLOW ALARM: Water flow has stopped with water pressure below the cut-in pressure setting. -
Page 11: Pump Controller Operation - Manual/Automatic Start
PUMP CONTROLLER OPERATION R100 MA MANUAL/AUTOMATIC START Loss of Prime Protection with 1300 367 866 Pump Run Power ON Low Flow Pump Alarm Overload Auto Fault PRESS PRESS Reset Manual Access By Qualified Personnel Only P/N 14288 INDICATORS POWER ON: The main power supply to the control box is on. PUMP RUN: The pump is operating. LOW FLOW ALARM: Water flow has stopped with water pressure below the cut-in pressure setting. -
Page 12: Control Boxes
CONTROL BOXES Pressure Start Controller 240V... -
Page 13: Pressure Start Controller 415V - Connection Diagram
Pressure Start Controller 415V... -
Page 14: Remote Start Controller 240V - Connection Diagram
Remote Start Controller 240V SCR- SCR+ HLA- HLA+ START- START+ OVLD- OVLD+... -
Page 15: Remote Start Controller 415V - Connection Diagram
Remote Start Controller 415V SCR- SCR+ HLA- HLA+ START- START+ OVLD- OVLD+... -
Page 16: Manual/Automatic Start Controller 240V - Connection Diagram
Manual/Automatic Start Controller 240V SCR- SCR+ HLA- HLA+ START- START+ OVLD- OVLD+... -
Page 17: Manual/Automatic Start Controller 415V - Connection Diagram
Manual/Automatic Start Controller 415V SCR- SCR+ HLA- HLA+ START- START+ OVLD- OVLD+... -
Page 18: Trouble Shooting Check List
WARNING: When servicing or attending pump, always ensure power is switched off and lead unplugged. Electrical connections should be serviced only by qualified persons. If the electrical supply lead of this pressure system is damaged, it must only be replaced by authorised Davey service personnel as special tools are required. - Page 19 NOTES...
-
Page 20: Terms And Conditions
Customer Service line on 1300 367 866 in Australia, or 0800 654 333 in New Zealand, or send a written letter to Davey at the address listed below. On receipt of your claim, Davey will seek to resolve your difficulties or, if the product is faulty or defective, advise you on how to have your Davey product repaired, obtain a replacement or a refund.
