Summary of Contents for PCE Instruments PCE-T 394

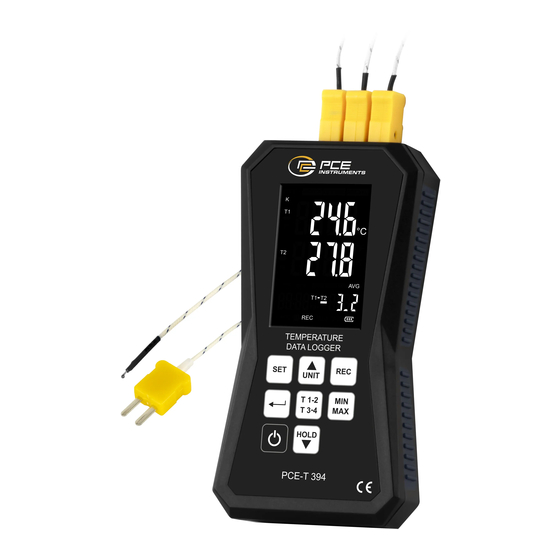

- Page 1 User Manual PCE-T 394 Temperature Data Logger User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 13 March 2024 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Calibration ......................8 Preparation for calibration.......................... 8 Cold-junction compensation calibration ..................... 8 AD value calibration (only to be carried out by PCE Instruments) ............8 Maintenance and cleaning ................9 Cleaning and storage ..........................9 Charging the battery ..........................9 Contact ...................... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
* To avoid interference with the instrument and causing wrong readings, please do not shake the thermocouple probes during temperature measurement. Delivery scope 1 x temperature data logger PCE-T 394 1 x USB cable 1 x PC software 1 x service bag 1 x user manual ©... -
Page 5: Device Description
11. Automatic power off 12. Freeze data 13. Data recording icon 14. Memory-full indicator 15. USB icon 16. Battery icon 11 12 13 14 15 16 17. Temperature unit 18. MAX, MIN & AVG indicator 19. T1/T2/T3/T4 reading © PCE Instruments... -
Page 6: Operating Instructions
MAX/MIN/AVG value of T1-T2 and T3-T4 successively. Press the key for 3 seconds until the MAX & MIN icon disappears to exit MAX/MIN mode. Note: The functions of the key and Auto Power Off will be disabled when MAX/MIN mode is active. © PCE Instruments... -
Page 7: Hold Data
Recording mode The PCE-T 394 has a data logger function. It records max. 32000 groups of data. The recorded data can be read out via a PC. Start the recording: As default, recording is started by pressing a key. You can change the start mode setting via the software. -
Page 8: Settings
Press the key again. will be shown on main display. Press to select the date setting. The number will flash at the bottom, on the left. Press to change the date. Then press to confirm. © PCE Instruments... -
Page 9: Set The Time
Setting the compensation You can adjust the reading of the PCE-T 394 to compensate for some deviation of the thermocouple. The value you can set as offset is limited to a maximum value. You can set individual compensation values for T1, T2, T3 and T4. -
Page 10: Calibration
The required temperature of the shielded calibration room is +23 °C ±0.3 °C (+73.4 °F ±0.5 °F) In order to achieve a stable reference room temperature point, the PCE-T 394 must be placed in the calibration room for more than one hour before the calibration. -
Page 11: Maintenance And Cleaning
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 12 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mula, 8 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
