- Page 1 User Manual PCE-AQD 10 CO2 Data Logger User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 12 November 2020 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Setting the elevation in feet (sea level) ................8 Power supply ..................8 10 Battery replacement................9 11 Resetting the system ................9 12 RS-232 PC interface ................9 13 Warranty ....................10 14 Disposal ....................10 © PCE Instruments... -
Page 3: Safety Notes
We expressly point to our general guarantee terms which can be found in our general terms of business. If you have any questions please contact PCE Instruments. The contact details can be found at the end of this manual. © PCE Instruments... -
Page 4: Introduction

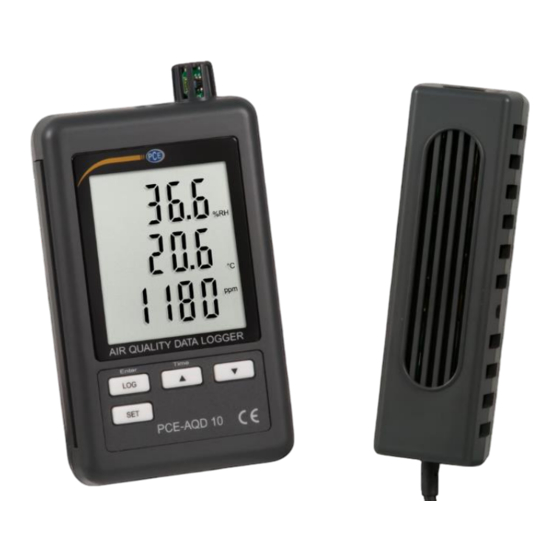

Introduction The PCE-AQD 10 is a data logger which records and saves the CO2 content, air temperature and relative humidity. The data is stored on an SD card (up to max. 16 GB SDHC). The device is mainly used for long-term recording in the food sector (refrigerated counters in department stores, refrigerated transport, warehouses) as well as for measurement and recording indoors (meeting rooms, offices, etc.) -
Page 5: Control Panel
3-12 RS-232 output 3-13 SD card slot 3-14 9 V DC connection 3-15 CO2 sensor connection 3-16 CO2 sensor 3-17 CO2 sensor plug 3-18 Suspension mounts sensor 3-19 Suspension mounts data logger 3-20 Suspension device CO2 sensor © PCE Instruments... -
Page 6: Preparation
SD memory card is full. In this case, replace the memory card. This indicates that the battery voltage is too low. In this case, please replace the batteries. This indicates that there is no memory card in the device. © PCE Instruments... -
Page 7: Data Logger Function
When 99 files are stored in the HBA01 folder, the machine creates a new folder with the name: HBA02\... This results in the following structure: HBA01\ HBA01001.xls HBA01002.xls HBA01099.xls HBA02\ HBA02001.xls HBA02002.xls HBA02099.xls HBAXX\ Note: The highest value XX can stand for is 10. © PCE Instruments... -
Page 8: Data Backup From Sd Card To Pc
Setting the RS-232 interface (ON or OFF) High... Setting the height above sea level in metres HighF... Setting the height above sea level in feet Note: If you do not press any key for 5 seconds, the device automatically exits the setting menu. © PCE Instruments... -
Page 9: Sd Card Format
After you have selected the desired interval, confirm this with the Enter key (3-2). Note: "Auto" means that a data record is always saved if the temperature or humidity changes by ±1 °C or ±1 % RH. © PCE Instruments... -
Page 10: Setting The Beeper
The measuring device can be operated with the 9 V DC plug-in mains adaptor. The connection for the external power supply is located at the bottom of the instrument (3-14). The batteries only serve the purpose of keeping the internal clock and the individual settings. © PCE Instruments... -
Page 11: Battery Replacement
°C = 01, °F = 02, % RH = 04, ppm=19 Selection of displays 1 = upper display 2 = middle display 3 = lower display Start word RS232 format, 9600, N 8, 1 Baud rate 9600 Parity Start bit Stop bit © PCE Instruments... -
Page 12: Warranty
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 13 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
