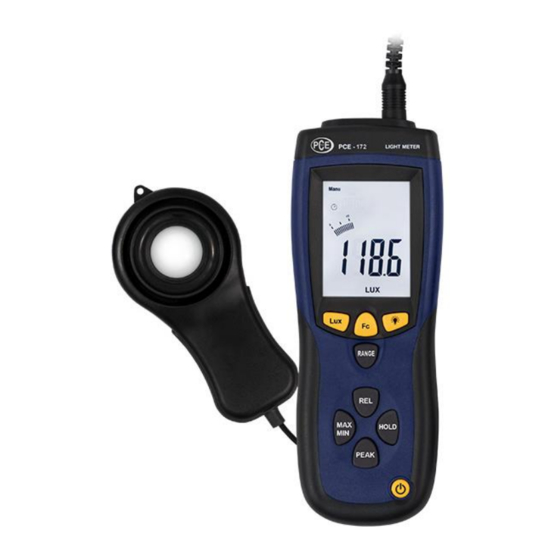

Thank you for purchasing the PCE-174 from PCE Instruments. The PCE-174 light intensity meter is a precision device to measure Lux and Footcandle readings. The light intensity meter can be used to measure light levels in industry, agriculture and research.
EMV: EN 50081- 1; EN 50082- 1 DIN 5031 ; DIN 5032 Delivery contents 1 x Lux-measuring device PCE-174, 1 x light sensor, 1 x software, 1 x USB-cable, 1 x battery, 1 x device case, 1 x operating manual System description 1.
Manual Operation 1. Connect the device to the light sensor. 2. Press the on/off key to turn on the Lux-measuring device. 3. Remove the cover of the light sensor and hold it horizontally to the light source. 4. Select the desired unit, lux or fc. 5.
Manual 10 Battery replacement A battery warning indicator will appear on screen when the battery power is low. To replace the battery, remove the battery compartment cover with a screwdriver. Replace the 9V block battery with a new one and screw the battery compartment cover back on. 11 Maintenance 1.
Page 7
Manual Launching the software Open the software and connect the device with the provided USB cable to the computer. The software shows that the device is offline. The current connection can be selected by clicking COM Port, to establish a connection. Select an appropriate COM Port on the PC for the measuring device.
Page 8
Manual The real-time recording can be set by entering the measurement rate (e. g. measurement every second). Data log read out:...
In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use them or give them to a recycling company which disposes of the devices in line with law. If you have any questions, please contact PCE Instruments. 15 Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments.
Page 11
PCE Deutschland GmbH Im Langel 4 D-59872 Meschede Deutschland Tel: 02903 976 99 0 Fax: 02903 976 99 29 info@pce-instruments.com www.pce-instruments.com/deutsch BEDIENUNGSANLEITUNG Lichtstärkemessgerät PCE-174 Version 1.1 16.06.2015...
Sicherheit: IEC- 1010- 1; EN 61010- 1 EMV: EN 50081- 1; EN 50082- 1 entspr. DIN 5031 ; DIN 5032 Lieferumfang 1 x Lux-Messgerät PCE-174, 1 x Lichtsensor, 1 x Software, 1 x USB - Kabel, 1 x Batterie, 1 x Gerätetasche, Bedienungsanleitung...
BETRIEBSANLEITUNG ____________________________________________________________________________________________________________________ 3.0 Bedienfeld 1. Ein/Ausschalter 2. Display: 3¾-stellige Anzeige 3 UNITS Taste: Durch Drücken dieser Taste wechseln Sie in den Messmodus für Footcandle (1 fc = 10,76 lux) 4. Hintergrundbeleuchtung: Ein- Ausschalten. 5 REC/SET Taste 6 PEAK Taste: Durch Drücken dieser Taste aktivieren Sie die Spitzenwert anzeige.
BETRIEBSANLEITUNG 5.0 Uhrzeit und Samplingrate einstellen Drücken Sie die REC und UNITS Taste gleichzeitig. Die erste Stelle der Uhrzeit beginnt zu blinken. Durch Drücken der PEAK oder REL Taste können die entsprechenden Stellen angewählt werden (Stunde, Minuten, Sekunden, Samplingrate, Monat, Tag, Woche, Jahr).
BETRIEBSANLEITUNG ____________________________________________________________________________________________________________________ 11.0 Einordnung der Messergebnisse Aufgrund vieler Nachfragen zum Luxmessgerät und der Einstufung der Messergebnisse haben wir Ihnen folgend Informationen zu den üblich einzuhaltenden minimalen Lux-Messwerten für den Innenbereich tabellarisch zusammengestellt. Im Aussenbereich sind wesentlich höhere Messwerte zu erwarten (z.B. 30.000 lux oder 100.000 lux bei Sonnenlicht). Die Werte sind orientierende Werte, für die seitens der PCE Inst.
BETRIEBSANLEITUNG Ausstellungsräume 1500 - 3000 lux Verpackungsbereich 700 - 1500 lux Aufenthaltsraum 300 - 700 lux Besprechungszimmer 300 - 700 lux Toilette 150 - 300 lux Treppen 70 - 150 lux 12.0 Spektral Empfindlichkeit Charakteristik Der Lichtsensor des Gerätes erfüllt die C.I.E (International Commission on Illumination) Spektralkurve wie unten gezeigt:...
Page 18
BETRIEBSANLEITUNG ____________________________________________________________________________________________________________________ Software Installation der Software: Legen Sie die Software CD ins Laufwerk und machen Sie einen Doppelklick auf Setup. Das Fenster zur Installation erscheint. Klicken Sie auf Next und durch klicken auf Install beginnt die Installation der Software. Nach dem Installieren der Software klicken Sie auf Finish um die Installation zu beenden.
Page 19
BETRIEBSANLEITUNG Nachdem Sie wissen welcher COM Port vom PC für das Messgerät vorgesehen ist wählen Sie den COM Port in der Software des Messgerätes. Hier können Sie die Echtzeitaufnahme unter Eingabe der Messrate (z.B. Messung jede sek.) einstellen.
Page 20
BETRIEBSANLEITUNG ____________________________________________________________________________________________________________________ Auslesung des Datenloggers Auslesung der einzelnen Messwerte Für Rückfragen, sprechen Sie uns bitte an: PCE Deutschland GmbH Zur Umsetzung der ElektroG (Rücknahme und Entsorgung von Elektro- und Elektronikaltgeräten) nehmen wir unsere Geräte zurück. Sie werden entweder bei uns wiederverwertet oder über ein Recyclingunternehmen nach gesetzlicher Vorgabe entsorgt. WEEE-Reg.-Nr.
