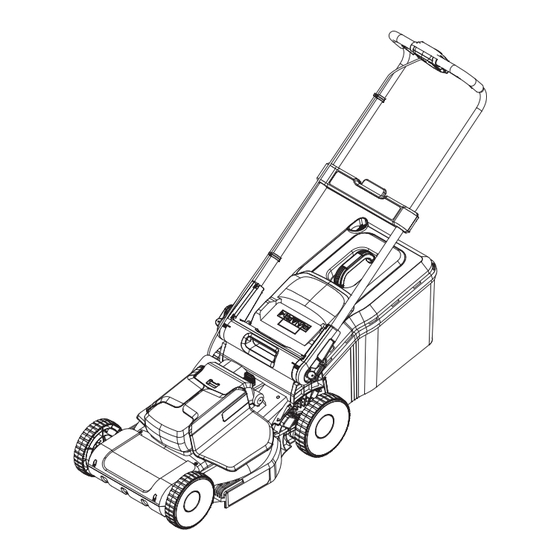

  • Page 1 Cordless lawnmower 36V 41cm TTT838LWM WARNING: Read the instructions before using the product!

  • Page 2: Table Of Contents

    Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications...
  • Page 3 TTT838LWM-Li by TITAN Safety information Safety warnings 1. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
  • Page 4 Safety information TTT838LWM-Li by TITAN Safety warnings 3. Never mow while people, especially children, or pets are nearby. 4. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
  • Page 5 TTT838LWM-Li by TITAN Safety information 8. Use extreme caution when reversing or pulling the product towards you. 9. Stop the cutting blade(s) if the product has to be tilted for transportation when crossing surfaces other than grass, and when transporting the product to and from the area to be mowed.
  • Page 6 Safety information TTT838LWM-Li by TITAN Safety warnings 18. If the product starts to vibrate abnormally (check immediately) - inspect for damage, - replace or repair any damaged parts, - check for and tighten any loose parts. Maintenance and storage 1. Disconnect the product from the power supply (i.e.

  • Page 7: Safety Information

    TTT838LWM-Li by TITAN Safety information 11. Have the product repaired only by an authorised service centre or similar qualified specialist. 12. When not in use, store the product out of the reach of children. Safety warnings for battery pack 1. Recharge the battery pack only with the charger specified by the manufacturer.
  • Page 8 Safety information TTT838LWM-Li by TITAN Safety warnings product in the presence of an open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately. 8. Follow all charging instructions and do not charge the battery pack outside the temperature range specified in the instructions.
  • Page 9 TTT838LWM-Li by TITAN Safety information Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks: 1.
  • Page 10 Safety information TTT838LWM-Li by TITAN Safety warnings Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: 1.
  • Page 11 TTT838LWM-Li by TITAN Safety information Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property.
  • Page 12 Safety information TTT838LWM-Li by TITAN Symbols Inspect the area where the product is to be used and remove all objects which can be thrown by the product. If objects are hidden while operating stop the motor and remove the object.
  • Page 13 TTT838LWM-Li by TITAN Safety information Do note expose battery packs to heat in excess of 40 ºC. Do not charge or store the battery pack in temperatures below 5 °C (41 °F) and above 40 °C (104°F). The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.

  • Page 14: Your Product

    Your product TTT838LWM-Li by TITAN Your product...
  • Page 15 TTT838LWM-Li by TITAN Your product / Before you start 1. Safety switch button 10. Lever for cutting 16. Safety key 2. Grip handle height adjustment 17. Deflector guard 3. Start lever (x2) 11. Rear wheel (x2) 18. Wire clip (x2) 4.

  • Page 16: Before You Start

    Before you start TTT838LWM-Li by TITAN You will need (items not supplied) (items supplied) Suitable personal protective equipment Grass catcher (6) Suitable wrench Cutting blade (12d) Mulching insert (21) Battery pack (22) Charger (23) and its manual NOTE: The accessories required depend on the intended application.
  • Page 17 TTT838LWM-Li by TITAN Before you start NOTE: For first assembly, secure the handle assembly with the clamp lever (9) in the middle position of the tilt adjustment mechanism by aligning the indication line (7a) with the indicator (8a) of transport handle (8).
  • Page 18 Before you start TTT838LWM-Li by TITAN Assembly Grass catcher 1. Clip the three rubber clips (6c) to the supporting rod (6d) of the grass catcher (6) (Fig. 5). 2. The carry handle (6a) is already preassembled on the top cover (6b) and its position is rotatable to fit the intended use (Fig.
  • Page 19 TTT838LWM-Li by TITAN Before you start NOTE: Always carry the grass catcher (6) by its handle (6a). Before hooking the grass catcher (6), check if the mulching insert (21) is in the rear discharge chute (20). Take away the mulching insert (21) before hooking the grass catcher (6).
  • Page 20 Before you start TTT838LWM-Li by TITAN Battery pack 1. Hold the groove (15a) and open the battery cover (15) (Fig. 10, step 1). 2. Press down the release button (22c) to unlock the latch of battery pack (22) (Fig. 10, step 2).

  • Page 21: In More Detail

    TTT838LWM-Li by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications Declaration of conformity...
  • Page 22 Product functions TTT838LWM-Li by TITAN Intended use This cordless lawnmower TTT838LWM is designated with rated voltage of 36 . It is designed only to be used with the battery pack which is listed in the chapter of “Technical specifications”. The product is intended for mowing grass in domestic gardens only. It must not be used to mow unusually high, dry or wet grass, e.g.
  • Page 23 TTT838LWM-Li by TITAN Product functions Cutting height adjustment WARNING! Switch the product off and wait that the cutting blade had come to a complete stop before adjusting the cutting height! Remove the safety key (16) before adjusting the cutting height! Adjust the cutting height according to the needs of your lawn.

  • Page 24: Operation

    Product functions TTT838LWM-Li by TITAN Grass catcher Indicator The grass catcher (6) is equipped with a hatch (6e) that indicates the filling during operation. Fig. 14 Fig. 15 Fig. 14 Fig. 15 1. When the hatch (6e) is opened the grass catcher has sufficient volume left to collect grass (Fig.
  • Page 25 TTT838LWM-Li by TITAN Product functions Mulching insert The mulching insert prevents grass from being collected by blocking the rear discharge chute (20). This allows the grass clippings to be deposited back on the lawn during cutting. NOTE: Mulching means cutting and returning the grass clippings to the lawn in one step: the grass clippings are cut very fine and then distributed evenly back onto the lawn.
  • Page 26 TTT838LWM-Li by TITAN Operation General operation 1. Check the product, its battery pack and charger as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear.Take care of any problem you find or have the product checked by qualified specialist.
  • Page 27 TTT838LWM-Li by TITAN Operation Fig. 18 Fig. 19 Fig. 19 Fig. 18 Fig. 19 Fig. 18 Mowing 1. Make sure that the lawn is clear of stones, sticks, wire or other objects that could damage the product or its product.
  • Page 28 TTT838LWM-Li by TITAN Operation Mowing Grass collection 1. Remove the mulching insert (21) and attach the grass catcher (6). 2. Empty the grass catcher (6) regularly. Mulching NOTE: Mulching means cutting and returning the grass clippings to the lawn in one step: the grass clippings are cut very fine and then distributed evenly back onto the lawn.
  • Page 29 Care and maintenance TTT838LWM-Li by TITAN The golden rules for care WARNING! Always switch the product off, remove the battery pack (22) and safety key (16). Let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage.
  • Page 30 Care and maintenance TTT838LWM-Li by TITAN Underbody and cutting blade WARNING! Wear safety gloves when working on the blade and close to it! Use proper tools to remove debris, e. g. a wooden stick! Never use your bare hands! Always use original spare parts for replacement. The cutting blade must be replaced by an identification no.
  • Page 31 TTT838LWM-Li by TITAN Care and maintenance Grass catcher Inspect the grass catcher (6) before each use. Do not use it if you find any damage. Clean the grass catcher (6) after operation using water and mild soap. Let the grass catcher (6) dry thoroughly before storing to avoid mildew.

  • Page 32: Troubleshooting

    Troubleshooting TTT838LWM-Li by TITAN Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions!

  • Page 33: Recycling And Disposal

    Recycling and disposal TTT838LWM-Li by TITAN Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. For further information visit www.recycle-more.co.uk.

  • Page 34: Guarantee

    Guarantee TTT838LWM-Li by TITAN Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use.
  • Page 35 Guarantee TTT838LWM-Li by TITAN Distributor: B&Q plc Chandlers Ford, Hants, SO53 3LE, United Kingdom www.diy.com Screwfix Direct Limited Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com...

  • Page 36: Technical Specifications

    Technical specifications TTT838LWM-Li by TITAN Technical specifications General > Rated voltage : 36 V > Rated no load speed n : 3000 min > Max. cutting width : 41 cm > Cutting height range : 20-70 mm, 7 levels > Grass catcher volume : 50 l >...
  • Page 37 Proper measures include among others regular maintenance and care of the product and accessories, keeping hands warm, periodical breaks and proper planning of work processes. Rating label explanation Lawnmower: TTT838LWM = Model number TTT = TITAN (brand) 838 = Series number LWM = Lawnmower...

  • Page 38: Declaration Of Conformity

    Declaration of conformity TTT838LWM-Li by TITAN Declaration of conformity...
