Titan 3515 Operation And Parts Manual

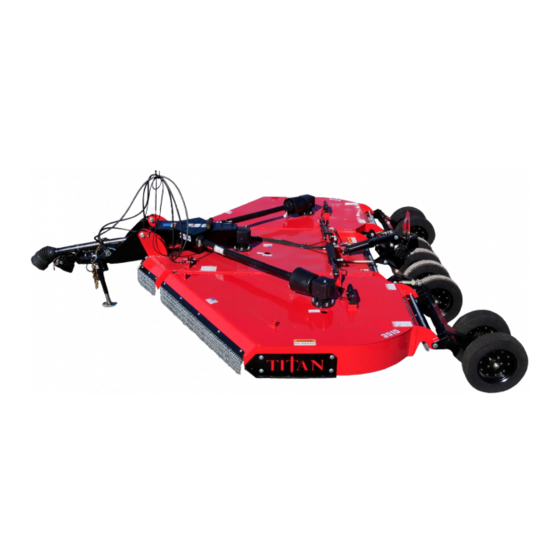

Flex-wing rotary cutter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3515 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Titan 3515

Summary of Contents for Titan 3515

  • Page 3 The above equipment and Operation and Parts Manual have been received by me, and I have been thoroughly instructed as to care, adjustments, safe operation, and applicable warranty policy. Date__________________ Owner’s Signature_________________________________________ Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...
  • Page 5 Cutter Model:_______________________________ Serial Number:_______________________________ Date Purchased:____________________________ Dealer Salesperson:___________________________ Dealership Name:___________________________ Dealership Location:___________________________ Mail to: Titan Implement P.O. Box 649 Decatur, TN 37322 Or Fax to: (423) 334-0023 Or E-mail to: info@titanimplement.com Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 7: Table Of Contents

    6.2.4 Power Take-Off (PTO) ... . . 33 6.2.5 Drawbar ......33 Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 8: Introduction

    OEM Titan Implement 3515 Flex-Wing Rotary Cutter equipment manuals! The rotary cutter, if not used Congratulations on your choice of a Titan Implement and maintained properly, can be dangerous to users flex-wing rotary cutter. This equipment has been unfamiliar with its operation.

  • Page 9: Specifications

    Chain Guards Standard Skid Shoes Replaceable 20” Laminated Tire 26” Laminated Tire 26” Foam Filled Aircraft Wheel Options Tires 29” Pneumatic Aircraft Tires Specifications subject to change without notice. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 10: Product Improvements

    232 Industrial Lane Decatur, TN 37322 Phone: (423) 334-0012 Fax: (423) 334-0023 The manual is also available for download at: www.titanimplement.com. Navigate to the 3515 page for the manual link. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 11: Safety

    If these hazard if instructions are not followed. warnings are not heeded, bodily injury or death could occur to you or to other persons. Titan Implement, LLC cannot anticipate every SAFETY possible circumstance that might involve a potential INSTRUCTIONS hazard.

  • Page 12: Safety Icon Nomenclature

     Pressure hazard  Crush hazard (foot)  Transmission in park  Defective or broken part  Use proper support  Entanglement hazard  Use proper tools   Explosive separation hazard  Visibility  Fire hazard  Rollover protection 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...
  • Page 13 In addition to this safety section, refer also to safety If the rotary cutter has been altered in any way from messages and instructions in each of the appropriate the original design, Titan Implement does not accept sections of the rotary cutter manual. any liability for injury or warranty.

  • Page 14: Training

    If you do not understand any information in this manual, see your dealer or contact Titan Implement Hearing loss from loud noise is cumulative over a before proceeding. lifetime without hope of natural recovery.

  • Page 15: Federal Laws And Regulations

    Some regulations specify that no one under the age of 16 may operate power machinery. It is your responsibility to know what these regulations are in your own area or situation. (Refer to U.S. Dept. of Labor, Employment Standard Administration, Wage & Home Division, Child Labor Bulletin #102). Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 16: Sign-Off Form

    2.7 Sign-Off Form This sign-off sheet is provided for your records to show that all personnel who will be working with the Titan Implement, LLC follows the general Safety equipment have read and understand the information Standards specified by the Farm Equipment...

  • Page 17: Operation Safety

    2.11 Maintenance Safety Refer to “9.1 Maintenance Safety” on page 44 for safety recommendations related to maintaining the rotary cutter. All applicable safety recommendations in other sections should also be followed. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 18: Safety Signs And Instructional

    5. Replacement parts must have replacement labels attached during installation and/or before the rotary cutter is used. 6. Labels are available from your authorized dealer or from Titan Implement at no charge. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020...

  • Page 19: Safety Sign Locations

    Keep Away - Thrown Objects DANGER Stay Clear WARNING Do Not Transport at Speeds Over 20 MPH INSTRUCTIONAL 5 Year Gearbox Limited Warranty * Use item 7 or 8, as appropriate. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 20: Cutter Deck Safety Signs

    3.3.1 Cutter Deck Safety Signs TI-00336 TI-00339 TI-00337 TI-00338 TI-00340 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...
  • Page 21 WARNING NO RIDERS TI-00074 TI-00342 Serial Number 0010001 TI-00134b TI-00344 MADE IN THE USA WITH U.S. & IMPORTED PARTS TI-00008 TI-00345 TI-00341 TI-00343 Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...
  • Page 22 TI-00348 TI-00346 TI-00347 TI-00351 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 23: Nomenclature

    4.1.1 Owner/Operator Manual Storage Always store the Owner/Operator manual and other operating materials in the document storage tube located on the front gearbox shield. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 24: Assembly

    3. Remove the pins and washers. 7. Remove the jack from its storage location on the left wing and install it on the lug on the left side of the hitch. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...
  • Page 25 11. Install the driveline onto the gearbox input shaft. Insert the retaining bolt and tighten the locknut securely. 8. Lower the hitch using a suitable lifting device. The lifting device may be attached to the safety chain. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...
  • Page 26 Do not omit the retaining bolt. Tighten the locknut securely. 15. Slide the front driveline half over the rear half. Align the square rib on the mating halves to engage. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 27: Final Assembly And Leveling

    2. Cycle the wheel lift cylinder several times to purge any trapped air and charge the hydraulic cylinder. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 28: Leveling The Wing Decks

    7. Rotate the tailwheel arms to align the holes with the clevis eye. Insert the bolt and reinstall the nut. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...
  • Page 29 If the driveline is too short, please call your Titan Implement dealer for a longer driveline. If the driveline is too long, follow the Titan Implement, LLC...

  • Page 30: Checking The Driveline Length

    Note: Do not use the rotary cutter if proper driveline engagement cannot be obtained through these methods. Contact your Titan Implement dealer. 11. Set the tractor lift control stop to a position that will prevent the driveline from contacting the front edge of the rotary cutter deck when the rotary cutter is fully raised.

  • Page 31: Operation

    Operating the cutter in this condition will result in severe rotary cutter deck. deck vibration. Inspect the wings for locked blades prior to lowering the wings. Use a pry bar or other tool to free any locked blades. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 32: Tractor Requirements

    • Front end weight, as needed, to maintain 20% weight on front axle. • To reduce the risk of grass fires, do not operate the cutter on a tractor with an underframe exhaust. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 33: Power Take-Off (Pto)

    Tractor PTO Drawbar Ground Level TI-00177 DRAWBAR LENGTH CHART Dimension A 540 RPM 14” 1000 RPM, 21 spline, 1-3/8” shaft 16” 1000 RPM, 20 spline, 1-3/4” shaft 20” Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 34: Leveling Front-To-Back

    See “6.2.5 Drawbar” on page 33 other than level with the ground will result in a for correct drawbar dimensions. slightly uneven cut. 3. Adjust the leveling rods to have equal amounts of tension. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 35: Setting The Rotary Cutter

    3” cut, position the skids 2” from the ground. Set the control lever stop at this position to maintain this height when raising and lowering the cutter. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 36: Initial Setup Checklist

    Refer to “9.6 Blade Servicing” on page 47. Make sure the blade carrier nuts are tight and the cotter pins installed. Refer to “9.7 Blade Carrier Removal” on page 48. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 37: Machine Break-In

    Refer to “9.5 Driveline Lubrication” on page 47. engine. Do not operate above 5 MPH. 9. Never allow blades to contact solid objects like rocks, posts, wire, curbs, guardrails, or the ground while mowing. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 38: Chain Shielding

    6.9 Chain Shielding Sharp turns can cause premature failure of the joints and put pressure on the tractor PTO shaft, Titan Implement installs full chain shielding as standard equipment on all flex-wing rotary cutters. and could cause extensive mechanical damage to the rotary cutter and tractor.

  • Page 39: Right Of Way (Roadway) Mowing

    2. Mower sections or wings are adjusted to be close and parallel to ground without exposing blades. 3. Mowing area has been inspected and foreign materials and debris have been removed. 4. Passersby are inside an enclosed vehicle. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...
  • Page 40 9. Slide the driveline off the tractor PTO shaft and secure it up off the ground. 10. Remove the hitch pin and drive the tractor away from the rotary cutter. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 41: Transporting

    Transport speed for laminated tires should stopped. not exceed 15 MPH. Excessive speed can cause damage to the machine and tire sections. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 42: Transporting

    5. Fold the wings onto the wing rests. the wings are raised. To avoid injury or death from rollover, use caution when transporting over uneven surfaces and slow down for turns. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 43: Storage

    6. Lubricate all grease points. Make sure all grease cavities have been filled with grease to remove any water residue from washing. 7. Touch up all paint nicks and scratches to prevent rusting. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 44: Service And Maintenance

    If fluid is injected into your skin, it must be treated immediately by a doctor familiar with this type of injury. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 45: Welding Repairs

    INSTRUCTIONS Before performing any type of welding repair to The following safety instructions are provided to the rotary cutter, contact Titan Implement for help prevent injury or limit equipment damage. approval. Repair welding must be done with care and with procedures that may be beyond Safety Equipment the capabilities of the ordinary welder.

  • Page 46: Greasing

    5. Replace broken grease zerks immediately. 6. If any grease zerk will not take grease, remove and clean it thoroughly. Also clean the lubricant passageway. Replace the zerk if necessary. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 47: Gearbox Lubrication

    8. Grease the zerks on the splitter cross shaft. deck. The right spindle rotates clockwise as viewed 9. Re-connect the drivelines, close the front gearbox from above the deck. shield, and install the retaining pins. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 48: Blade Sharpening

    100 RPM), until evidence of heating is noted. Do repeat until the carrier breaks loose. not allow the clutch to overheat. 4. Remove the castle nut and the blade carrier. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 49: Slip Clutch Adjustment

    If satisfactory results cannot be obtained, consult your authorized dealer. N O TI C E Do not overtighten and cause the spring to become solid, as this will cause shaft failure. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 50: Bolt Torque Requirements

    3 Radial Lines 6 Radial Lines No Marking Grade 5 Grade 2 Grade 8 N·m ft.lbs. N·m ft.lbs. N·m ft.lbs. 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" 1" 1320 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 51: Service Record

    Make sure the slip clutch is functioning properly. Refer to”9.9 Slip Clutch Operational Check” on page 48. Inspect the hitch and clevis for wear and damage. Wash the rotary cutter. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 52: Troubleshooting

    Replace lockwasher. Refer to “9.6 Blade Servicing” on page 47. Gearbox noisy. Low lubricant level. Add grease. Refer to “9.4 Gearbox Lubrication” on page 47. Worn bearing. Replace bearing. 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...
  • Page 53 Driveline” on page 30. Shields damaged. Replace shields. Driveline twisted. Over torqued. Replace driveline. Caution operator not to strike ground with blades. Not maintaining correct PTO speed. Maintain rated PTO RPM. Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 54: Warranty

    Tennessee, Southern Division, and (c) waive any objection it may have as to any such action or proceeding brought in such court that such court is an inconvenient forum. Nothing herein shall limit the right of Purchaser or Titan Implement, LLC (or the right of any permitted successor or assign of either) to bring proceedings against the other in the courts of any other jurisdiction wherein any assets of such other party may be located.
  • Page 55 Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...
  • Page 56 WARRANTY REGISTRATION FORM 3515 FLEX-WING ROTARY CUTTER THIS REGISTRATION FORM MUST BE ON FILE WITH TITAN IMPLEMENT, LLC. WITHIN 30 DAYS OF DELIVERY TO PURCHASER, OR WARRANTY CLAIM WILL NOT BE HONORED. PLEASE RETURN COMPLETED FORM BY E-MAIL, FAX, OR MAIL: E-MAIL: info@titanimplement.com...
  • Page 57 Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 58: Parts

    12. Parts Replacement parts are available from your authorized Dealer Parts Department or from Titan Implement. The following pages contain a list of serviceable parts for the Titan Implement flex-wing rotary cutters. 12.1 Hitch Assembly 12.1 Hitch & Leveling Rods...
  • Page 59 Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 60: Center Deck

    12.2 Deck Assembly 12.2 Center Deck 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...
  • Page 61 Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 62: Wing Deck

    12.3 Tailwheel Assembly 12.3 Wing Deck 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...
  • Page 63 Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 64: Wheel Lift

    12.4 Wheel Lift 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...
  • Page 65 Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 66: Hydraulic System

    12.4 Hydraulics Assembly 12.5 Hydraulics 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 67: Driveline & Shield

    12.6 Driveline & Shield Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 68: Splitter Shield

    12.5 Driveline Assembly 12.7 Splitter Shield 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 69: 540/1000 Rpm Splitter Gearbox

    12.8 540/1000 RPM Splitter Gearbox Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 70: Outboard Gearbox

    12.9 Outboard Gearbox 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 71: Rpm Driveline

    12.10.1 540 RPM Driveline Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 72: 1000 Rpm Driveline

    12.10.2 1000 RPM Driveline 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 73: Center Deck Driveline

    12.10.3 Center Deck Driveline Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...

  • Page 74: Wing Deck Driveline

    12.10.4 Wing Deck Driveline 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...

  • Page 75: Chain Guard

    12.11 Wing Deck Driveline Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...
  • Page 76 3515 Flex-Wing Rotary Cutter Titan Implement, LLC February 2020 (423) 334-0012...
  • Page 77 Titan Implement, LLC 3515 Flex-Wing Rotary Cutter (423) 334-0012 February 2020...
  • Page 78 Form No. 3515M Printed in USA 09/2016...
