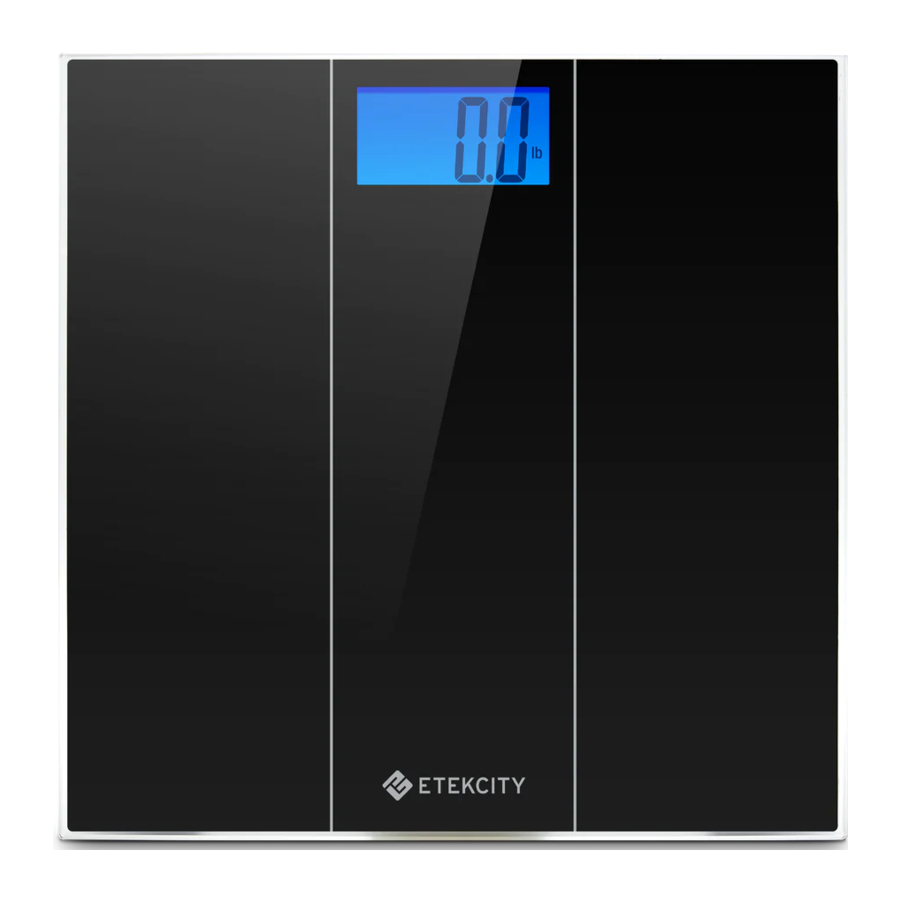

Etekcity EB4074S - Digital Body Weight Scale Manual

Package Contents

1 x Digital Body Weight Scale
1 x User Manual
2 x 1.5V AAA batteries (pre-installed)

Main Functions

Scale platform
Digital display
Unit selection

Battery compartment
Anti-skid padding

Set-Up

Set-Up - Step 1
Open the battery compartment cover located on the back of the scale. Remove the two 1.5V AAA batteries from their plastic film and apply the batteries under the correct polarity. Reseal the battery compartment in order to activate the scale.
Set-Up - Step 2

Operation

Weight Measurement

For best results, place the scale on a hard, flat surfaces. Avoid carpet or soft surfaces.
Step on the scale, then step off. Wait for the screen to display " 0.0 " before using.

Stand on the scale until the display flashes several times, showing your final measurement.

Converting Weight Units

Apply pressure onto the weighing platform to activate the scale.
Press the unit conversion button on the back of the scale to convert units from pounds (lb) to kilograms (kg).
Place the scale back onto a hard, flat surface when you are ready to measure.

Maintenance

Battery Replacement

Open the battery compartment on the back of the scale.
Remove the old batteries and dispose of them properly.
Install two new 1.5V AAA batteries, making sure they are placed under the correct polarity.
Replace the battery compartment cover.

NOTE: The scale may need to be cleared after replacing the batteries.

Clearing the Scale
If the scale has been moved or flipped upside down, it must be cleared to ensure accurate results.

Place the scale on a hard, flat surface.
Step on the scale until digits appear on the display, then step off.
The scale will show " 0.0 " when cleared.

Specifications

Weight Capacity:	400 lb (180 kg)
Graduation:	0.2 lb (0.1 kg)
Weight Units:	lb \| kg
Battery:	2 x 1.5V AAA batteries
Platform:	Tempered Glass
Auto-off:	15 seconds
LCD Display:	2.9" x 1.5" (74 x 38 mm)
Dimensions:	11.8" x 11.8" x 0.7" (300 x 300 x 18mm)

Troubleshooting

Error Message	Reason	Solution
"Err"	Maximum weight capacity has been exceeded.	Step off the scale to avoid damage.
"Err"	Item being weighed is too light.	Remove item and use a smaller scale to measure object.
"Lo"	Low battery.	Replace the batteries as noted in the Battery Replacement section.
"C"	Scale needs to be cleared.	Please place the scale on a flat surface and wait for it to be cleared before using it.
Scale is not turning on	Batteries may be incorrectly installed.	Take out batteries and reinstall them under the correct polarity.
	Batteries may need to be replaced.	Replace batteries.
	Light does not come on when stepping on scale.	Scale may be broken. Contact customer support

Safety Information

Please read and comply with all of the instructions and warnings provided in this manual before using the product. Failure to comply with the instructions and warnings provided herein may result in inaccurate results and/or damage to the product itself.

The glass platform is slippery when wet. Make sure the platform is dry before stepping on for measurement.
Consult your primary-care doctor or physician before making changes to your diet, exercise plans, and/or physical activities.
This scale is not intended for commercial use.
To weigh safely and accurately, please stand on the center of the platform and stand still until a result is calculated.
DO NOT strike or drop the scale.
DO NOT stand on the edge of the scale or jump on it.
DO NOT stand on the scale platform for a prolonged period of time or when not in weighing operation.
Always place the scale on a hard, dry, and flat surface before measurement.
Handle the scale with care, as it is a precision instrument.
Clean the scale with a damp cloth and avoid getting water or any other liquid inside the scale.
DO NOT use chemical or abrasive cleaning agents to clean the scale.
Keep the scale in a cool environment with dry air.
Always keep the scale in a horizontal position; do not store vertically.
If the scale fails to turn on, check whether the batteries are installed correctly. Replace the batteries if necessary.
If an error appears on the display or if the scale does not turn off automatically, remove the batteries for 3 seconds, then reinstall them.
DO NOT overload the scale (max. weight capacity: 400 lb / 180 kg).
If the scale is not in use for an extended period of time, remove the batteries to ensure battery conservation and to extend the scale service lifetime.

Customer Support

Should you encounter any issues or have any questions regarding your new product, feel free to contact our helpful Customer Support Team.

Etekcity Corporation
1202 N. Miller St. Suite A Anaheim, CA 92806
Toll-Free: (855) 686-3835
Fax: (657) 202-1693
Local: (657) 500-1872
Email: support@etekcity.com

Support Hours
Monday - Friday:
9:00 am - 5:00 pm PST
*Please have your order ID number ready before contacting customer support.

Connect with us @Etekcity
