Summary of Contents for Vortex ANARCH

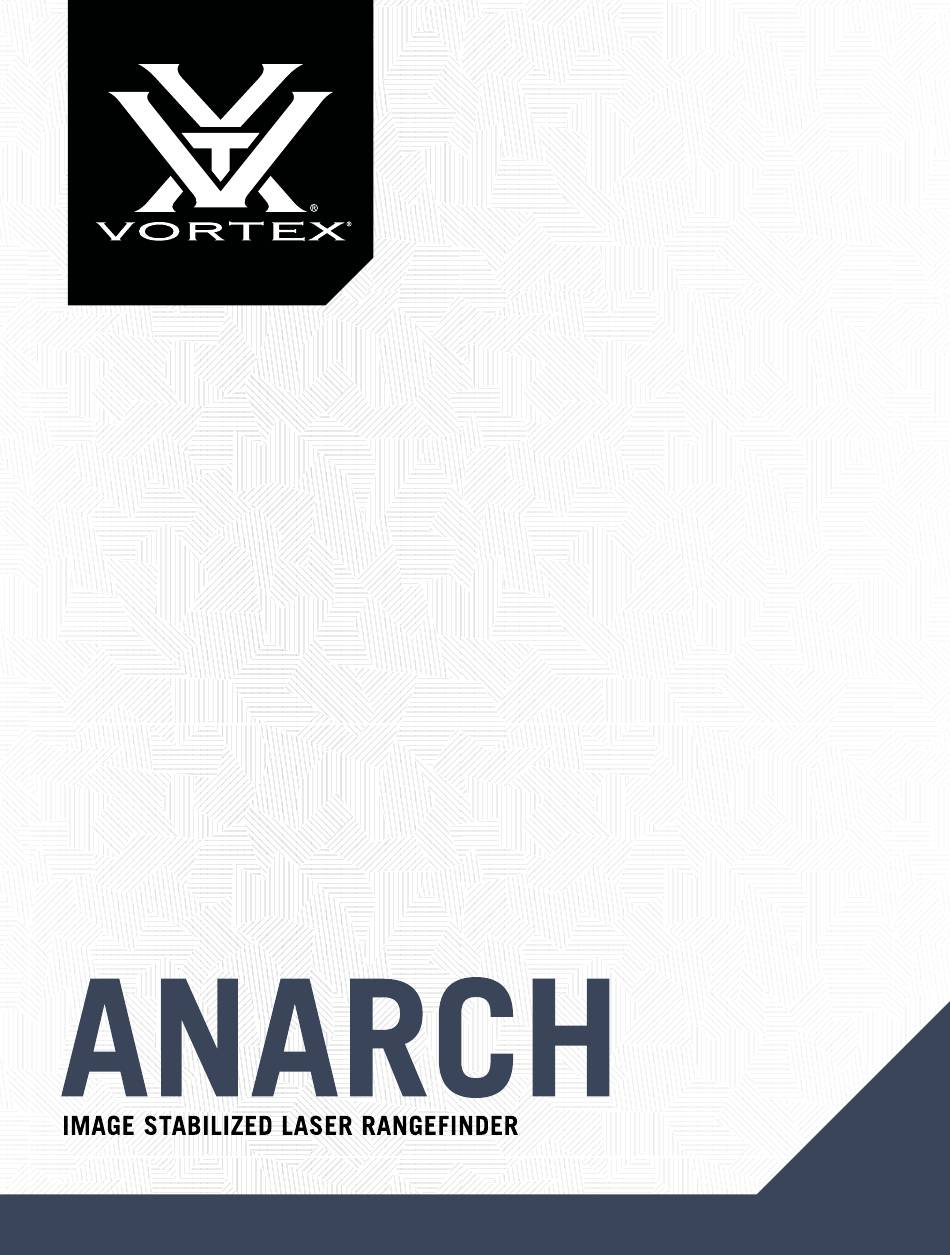

- Page 1 PRODUCT MANUAL ™...
- Page 2 When the unexpected happens, we’ve got your back. Our VIP Warranty is our lifelong, fully ™ transferable promise to repair or replace your rangefinder should it become damaged, no questions asked. Gamble on the next hole. Not your rangefinder.
-
Page 3: Specifications
™ ANARCH IMAGE STABILIZED SPECIFICATIONS ™ LASER RANGEFINDER MAGNIFICATION Whether it’s ranging in the wind, from long distance, or a OBJECTIVE LENS 22mm shot that’s the difference between winning that side bet and MAX REFLECTIVE RANGE Up to 1400 yds. -
Page 4: Basic Operation
Battery screen will display. Compartment Note: The Anarch will auto-shutoff after 10 seconds if no buttons ™ are pressed. While in the menu, the Anarch will return to the ™ ranging screen after 30 seconds if no buttons are pressed. -
Page 5: Low Battery Icon
MENU SELECTIONS The Low Battery Icon displays once the battery reaches 25% Changing Menu Settings life and stays on until there is no The Anarch is factory set to Slope Mode on, PinSpotter ™ ™ power or the battery is replaced. - Page 6 Slope Mode When Slope Mode is on, the rangefinder will display two range values. The line of sight range will display on top The Anarch laser rangefinder features a Slope Mode. ™ with the slope-adjusted range underneath. The slope icon To turn Slope Mode on, toggle to “Slope”...
- Page 7 ™ Pinspotter Mode Reticle Selection ™ The Anarch laser rangefinder comes equipped with The Anarch laser rangefinder offers three reticle ™ ™ PinSpotter Mode which provides visual and vibratory options. To change your reticle, toggle to the Reticle ™ feedback to confirm when a flag has been ranged. If the screen in the Menu Settings.
-
Page 8: Brightness Selection
™ Range Unit Selection Brightness Selection The Anarch laser rangefinder offers distances in yards or The Anarch comes preset to an Automatic Brightness ™ ™ meters. To change your range units, toggle to the Range setting that will adjust the display brightness based on screen in the Menu Settings. -
Page 9: Scan Feature
™ Ranging Scan Feature The Anarch features image stabilization which eliminates Activate the Scan Feature ™ shake for a clear sight picture and easy ranging. To range, by pressing and holding the position the reticle on the target object you wish to range, “Measure”... -
Page 10: Maintenance
Lubrication • Solid objects, such as rocks, will reflect better than bushes. • Flat surfaces perpendicular to the laser will reflect better than All components of the Anarch are permanently lubricated, ™ curved surfaces or surfaces angled in relation to the laser. -
Page 11: Fcc Requirements
™ FCC REQUIREMENTS SAFETY AND PRECAUTIONS Do not stare into beam or view directly without laser eye The user’s manual or instruction manual for an intentional protection. Staring continuously into beam for prolonged or unintentional radiator shall caution the user that changes periods of time could cause harm to your eyes. -
Page 12: Warranty
Virtual Patent Marking Notice by Vortex Optics This product may be protected by patents in the U.S. and elsewhere for Vortex Optics. vtx.legal website is provided to satisfy the virtual patent marking provisions of various jurisdictions including the virtual patent marking provisions of the America Invents Act and provide notice ®... - Page 13 M-00353-1 © 2023 Vortex Optics ® Registered Trademark and TM Trademark of Vortex Optics. Patent Pending All other marks are the property of their respective owners.
