Summary of Contents for Vortex RANGER 1300

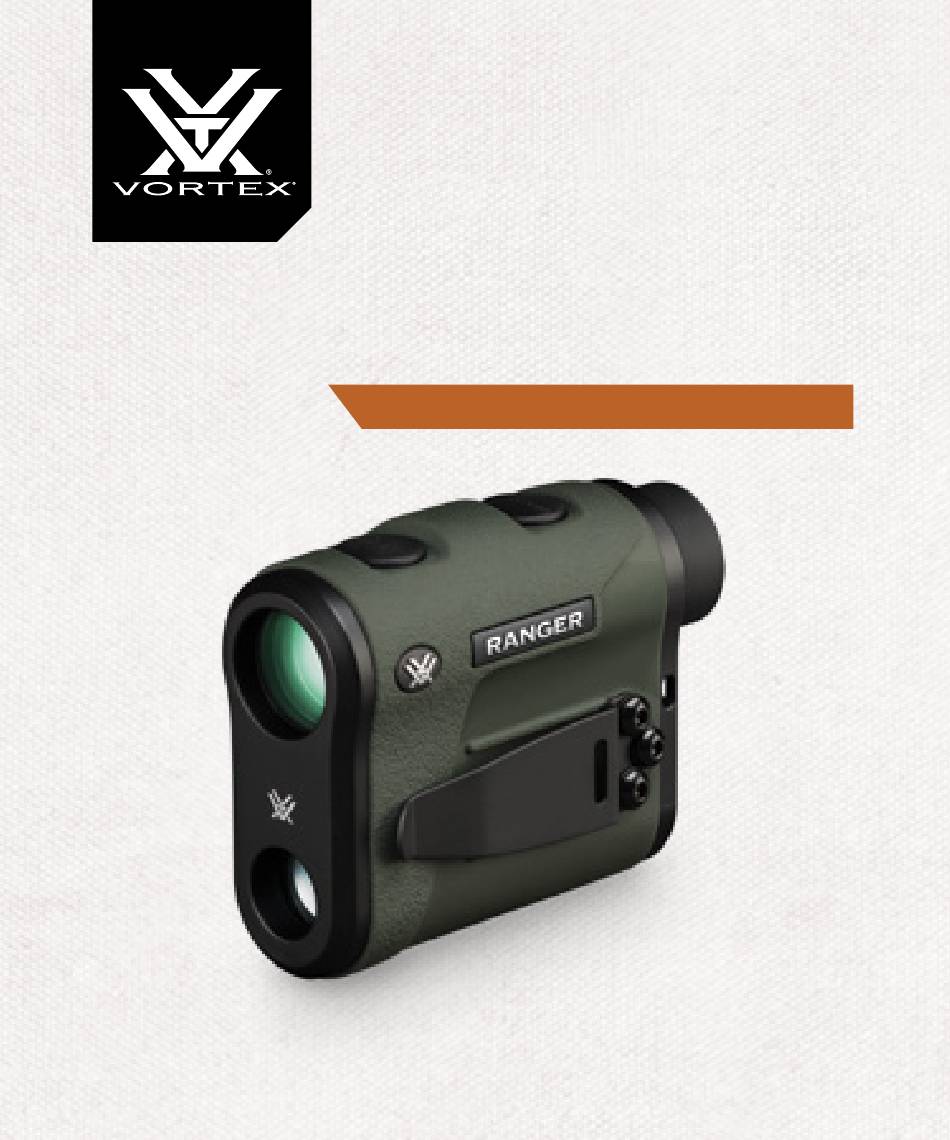

- Page 1 RANGER 1300 ® LASER RANGEFINDER PRODUCT MANUAL...
- Page 2 RANGER 1300 ® LASER RANGEFINDER The Ranger 1300 Rangefinder ® Reflective Range 10-1300 yd. (9-1189m) The Ranger 1300 is an extremely effective angle- ® Deer Range 10-600 yd. (9-549m) compensated laser rangefinder intended for both archer Accuracy + / - 3 yd. @ 1000 yd. and rifle shooter.
-
Page 3: Battery Installation
RANGER 1300 ® LASER RANGEFINDER The Ranger 1300 Rangefinder Battery Installation ® Open the battery compartment Menu Button and install the CR2 battery included with the Ranger ® Remove Measure Button battery compartment Powering On/Off Adjust Focus cover. with Eyecup Once the battery is installed, Install battery with positive the Ranger... -
Page 4: Mode Selection
RANGER 1300 ® LASER RANGEFINDER Mode Selection Set and Save Mode Selections in 3 Steps Your Ranger 1300 is factory 1. Choose between the HCD ® set to the angle compensating and LOS Modes. HCD mode, yards, and medium After activating the brightness. - Page 5 RANGER 1300 ® LASER RANGEFINDER 3. Choose the Brightness Setting. The Ranger Ranging 1300 ® provides three illumination settings. Press the Measure With the Ranger 1300 powered up, position the crosshair ® button to toggle through the three Brightness settings. on the target object and press and release the Measure button Press the Menu button to save your desired setting and to get the distance measurement.
- Page 6 RANGER 1300 ® LASER RANGEFINDER Ranging Mode Explanations Using the HCD Mode The Ranger 1300 provides two range modes: HCD Use the HCD range mode in the following situations: ® (Horizontal Component Distance) and LOS (Line of Sight). • Rifle shooting on level ground at any range. Both modes offer a Scan feature.
- Page 7 RANGER 1300 ® LASER RANGEFINDER LOS Mode LOS Mode – Using the Incline Number The Ranger 1300 LOS (Line of Sight) mode is intended When in LOS mode, an additional number is displayed below ® for rifle shooters who are using slope correcting ballistic the yardage number.
-
Page 8: Scan Feature
RANGER 1300 ® LASER RANGEFINDER Scan Feature Tripod Use for Ranging The Scan feature can be used to range moving targets Using a tripod to steady the Tripod Socket or help range smaller targets on uniform backgrounds in rangefinder will increase your either HCD or LOS modes. -
Page 9: Fcc Requirements
RANGER 1300 ® LASER RANGEFINDER Rangefinding Tips FCC Requirements The user’s manual or instruction manual for an intentional or Laser rangefinders work by emitting a brief pulse of light aimed at a unintentional radiator shall caution the user that changes or target object. - Page 10 THIS PRODUCT COMPLIES WITH 21CFR SUBCHAPTER J PARTS 1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE NO.50 DATED JUNE 24, 2007. Sheltered Wings, Inc. One Vortex Drive, Barneveld, Wl 53507 August 2017 Learn more at www.VortexOptics.com service@VortexOptics.com • 800-426-0048...
- Page 11 M-00092-2 © 2019 Vortex Optics ® Registered Trademark and TM Trademark of Vortex Optics.
