Summary of Contents for Vortex Razor HD 4000 GB
- Page 1 RAZOR HD 4000 GB ® PRODUCT MANUAL...
-
Page 2: Table Of Contents
RAZOR HD 4000 GB ® TABLE OF CONTENTS SPECIFICATIONS GENERAL INFORMATION FOR GEOBALLISTICS WEATHER ® ���������������������������������� ���� ��������������������������������������� PRODUCT WALKAROUND NAVIGATING THE GEOBALLISTICS ® Wind Modes ������������������������������������ ���������������������������� ��������������� Manually Entering Weather in GeoBallistics BASIC OPERATION HUD Tab ® ������� ���������������������������������������... -
Page 3: Specifications
RAZOR HD 4000 GB ® SPECIFICATIONS MAGNIFICATION OBJECTIVE LENS 25mm MAX REFLECTIVE RANGE TREE RANGE DEER RANGE NORMAL MODE Up to 2400 yds. (2195m) Up to 1800 yds. (1646m) Up to 1600 yds. (1463m) NORMAL MODE (SCAN) Up to 2400 yds. (2195m) Up to 2200 yds. -

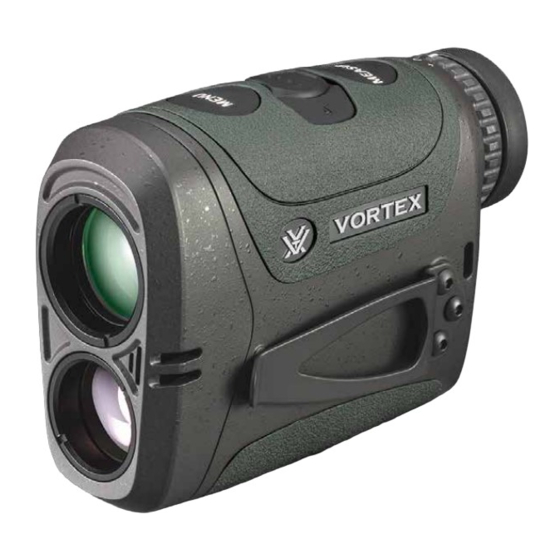

Page 4: Product Walkaround
Horizontal Component Distance Mode (HCD) and Ballistics Mode (BAL), for any ranging environment. Using an array of built-in environmental sensors in conjunction with the state-of- the-art GeoBallistics solver and patented Vortex Wind Bearing Capture Mode, the Razor HD 4000 GB ®... -
Page 5: Basic Operation
RAZOR HD 4000 GB ® Attaching the Lanyard BASIC OPERATION The Lanyard provides a secure way to carry your rangefinder. Battery Installation and Replacement Loop the Lanyard through one of the Attachment Sockets. To insert a new battery, flip up the finger tab on the Battery Cap and unscrew, counterclockwise, to remove. -
Page 6: Mode Selection
RAZOR HD 4000 GB ® Last Mode MODE SELECTION This mode displays the farthest distance when panning and scanning. It is ideal for ranging a specific target behind a group of objects, such as rocks, trees, brush, etc. Changing Modes on the Razor HD 4000 GB ®... -
Page 7: Range Unit Selection
RAZOR HD 4000 GB ® HCD Mode Range Unit Selection The Horizontal Component Distance (HCD) Mode will be your primary mode when not using the on-board Press the “Measure” button to toggle between the Yards and Meters display. Press the “Menu” button to ballistic solver. -
Page 8: Bluetooth ® Selection
RAZOR HD 4000 GB ® Bluetooth ® Selection Wind Speed Selection (Only Available in BAL Mode) (Only Available in BAL Mode) The Razor HD 4000 GB is equipped with a Bluetooth chip to allow the unit to wirelessly pair with Kestrel Wind Speed can be displayed in miles per hour (MPH) or meters per second (MPS). -
Page 9: Scan Feature
RAZOR HD 4000 GB ® SCAN FEATURE VIEW DATA SCREENS Activate the Scan Feature by pressing and holding the “Measure” button. Keeping When your Razor HD 4000 GB is in BAL Mode, you will have access to five data screens: Range Ready, ®... -
Page 10: Pressure Data Screen
RAZOR HD 4000 GB ® Pressure Data Screen GENERAL INFORMATION FOR GEOBALLISTICS ® This will display the atmospheric pressure (inHg or Mbar) measured from the on-board Environmental Sensors in your Razor ® HD 4000 GB. Press the “Menu” Go to your device’s app store and download the GeoBallistics App. -
Page 11: Navigating The Geoballistics ® App
RAZOR HD 4000 GB ® Chart Tab NAVIGATING THE GEOBALLISTICS ® From the Chart tab, you will see data for shot angle, shot direction, and range. Here you may also manually input this Across the top of the main screen of the GeoBallistics App, there are four tabs: HUD, Chart, Map, and ®... -
Page 12: Map Tab
RAZOR HD 4000 GB ® Map Tab Comp Tab From the Map tab, you may locate your current position by From the Comp tab, you may manually enter shot Angle, clicking . For best results, make sure the GeoBallistics ® Direction, and Range. -
Page 13: Ballistics Section
RAZOR HD 4000 GB ® Pairing the Razor ® HD 4000 GB to the GeoBallistics ® BALLISTICS SECTION To pair your Razor HD 4000 GB with your mobile device, ensure the Bluetooth on your mobile device is ® ® Connection Scenarios turned on and the GeoBallistics ®... - Page 14 RAZOR HD 4000 GB ® 9. Tap on your Razor HD 4000 GB referencing the last four digits 7. Select the Razor HD 4000 GB by pressing the ellipsis ® ® of the serial number on the bottom of your Razor ®...
-
Page 15: Razor Hd 4000 Gb Settings Menu
RAZOR HD 4000 GB ® Calibrating the Compass and Inclinometer RAZOR HD 4000 GB SETTINGS MENU ® The Razor HD 4000 GB needs to be calibrated during initial setup and should be re-calibrated every time ® Data Received From the Razor HD 4000 GB ®... - Page 16 RAZOR HD 4000 GB ® 2. To begin the calibration process, select the “START” button. Ensure you see “cAL” in the Razor 3. Orient the device so that it is facing away from you and the ® 4000 GB display before proceeding to step 3. Measure button is closest to you, and turn the device end over end three times.
-
Page 17: App Settings Menu
RAZOR HD 4000 GB ® 6. Repeat steps 3 through 5 until the GeoBallistics App indicates the App Settings Menu ® calibration is complete. Select “OK” and the date and location will To navigate to the App Settings Menu, select the settings icon update on the Razor ®... -
Page 18: App Preferences
RAZOR HD 4000 GB ® App Preferences Mobile Sensors Mobile Sensors are for use when not using the Razor ® HD 4000 GB. Auto-Locate This allows for use of your mobile device’s compass and inclinometer in the GeoBallistics App. ® Auto-Locate will use your mobile device’s latitude for ballistic calculations. -
Page 19: Distance Units
RAZOR HD 4000 GB ® Distance Units Weather Units The distance to the target can be displayed in yards or meters. Select Pressure the desired distance option in the menu. If the Razor ® HD 4000 GB is connected to the GeoBallistics ®... -
Page 20: Rifle & Ammunition Profiles
RAZOR HD 4000 GB ® Rifle & Ammunition Profiles Creating Custom Ballistic Profiles Custom ballistic profiles can be created in the GeoBallistics App. You can load and store up to three profiles in the Razor HD 4000 GB. These ® ®... - Page 21 4. Enter the bullet data by selecting the icon. Select your ammunition’s caliber and bullet weight from Please contact Vortex Optics at 1-800-4VORTEX (1-800-486-7839) Ext. 5 with any questions. the list. Then, select the exact bullet you are using. Find this information on your ammunition’s box.
-
Page 22: Rifle Information
“Disabled” in the field above. You can enter a custom muzzle velocity temperature table. The use of a chronograph is required for this information. Enter the muzzle velocity measured, and the temperature at which it was measured. Vortex recommends ®... -
Page 23: Optic Information
RAZOR HD 4000 GB ® Optic Information GeoBallistics ® Overlays (Optional) Solution Units Vital Size Choose the Solution Unit you would like to have your drop chart For Vital Size, estimate the diameter of your target’s vital area and displayed in, MRAD or MOA. This information will be based off the enter here. -
Page 24: Copying A Profile
RAZOR HD 4000 GB ® Copying a Profile Editing a Profile To copy a profile: Profiles can be edited to update specific data to represent the ballistic information most accurately for your firearm and 1. While in the Rifles section, select the profile that you wish to ammunition. -
Page 25: Setting Up & Switching Profiles In The Geoballistics ® App
RAZOR HD 4000 GB ® Setting Up & Switching Profiles in the GeoBallistics ® Switching Between Profiles in the Razor ® HD 4000 GB You can change the identifier (A, B, or C) assigned to a profile in 1. Press and hold the “Menu” button on the Razor HD 4000 GB for four seconds. -
Page 26: Weather
RAZOR HD 4000 GB ® Entering the wind speed: WEATHER 1. Press the “Measure” button to turn on the Razor ® HD 4000 GB. Make sure you are in BAL Mode. The Razor HD 4000 GB comes with on-board Environmental Sensors to capture the following data: ®... -
Page 27: Manually Entering Weather In Geoballistics ® App
® Wind Bearing Capture Mode Manually Entering Weather in GeoBallistics ® The Razor HD 4000 GB is equipped with the Vortex patented Wind Bearing Capture Mode. Holding the ® ® Wind “Wind Bearing Capture” button for two seconds will change from Full Crosswind Mode into Wind Bearing Capture Mode. -
Page 28: Connecting/Using/Disconnecting A Kestrel
RAZOR HD 4000 GB ® 5. From the main screen of the GeoBallistics App, select the ® CONNECTING/USING/DISCONNECTING A KESTREL ® ) in the bottom right and then select the Razor ® HD 4000 bluetoot GB on the Manage Devices screen by pressing the ellipsis. You may also select the symbol on the top right of The GeoBallistics... - Page 29 RAZOR HD 4000 GB ® 7. Tap the device name to connect. Reference the serial number on Connecting a Kestrel ® to the GeoBallistics ® the back of your Kestrel ® Note: This method will allow you to use environmental data from your Kestrel ®...
- Page 30 RAZOR HD 4000 GB ® 4. Make sure you see data from the Kestrel populate the Atmospherics screen. You are connected. Using a Kestrel ® With the Razor ® HD 4000 GB and the GeoBallistics ® ® When your Kestrel ®...
-
Page 31: Disconnecting
RAZOR HD 4000 GB ® From the main screen of the GeoBallistics App, you will see a ® RANGEFINDING TIPS button appear on the top left if your Kestrel ® is properly connected to ONLY the GeoBallistics ® App. Select this button to toggle the Kestrel compass on or off. -
Page 32: Troubleshooting Guide
RAZOR HD 4000 GB ® TROUBLESHOOTING GUIDE The Razor HD 4000 GB will not show up in the GeoBallistics App in my device. ® ® • Bluetooth ® modules of a certain age may not be able to communicate with modern devices. It is recommended that your device use iOS 13+ (iPhone 8 or newer) or Android 6.0+. -
Page 33: Index
RAZOR HD 4000 GB ® INDEX PROFILE .308 WIN - DEFAULT PROFILE 6.5 CREEDMOOR - DEFAULT PROFILE .223/5.56 - DEFAULT ® Set As Set As Set As Bullet Data Library Bullet Data Library Bullet Data Library Bullet Diameter .308 in Bullet Diameter .264 in Bullet Diameter... - Page 34 RAZOR HD 4000 GB ® Japan COMPLIANCE United States This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 35 If used properly, this device is safe for your eyes This product may be protected by patents in the U.S. and elsewhere for Vortex Optics. http://vtx.legal website and laser eye protection is not needed.
- Page 36 RAZOR HD 4000 GB ® VIP WARRANTY ™ OUR UNCONDITIONAL PROMISE TO YOU. We promise to repair or replace the product. Absolutely free. Unlimited. Unconditional. Lifetime Warranty. You do not have to register, save the box, or a receipt for the Warranty to be honored. Learn more at VortexOptics.com service@VortexOptics.com •...
- Page 37 M-00347-0 © 2023 Vortex Optics ® Registered Trademark and TM Trademark of Vortex Optics. Patent Pending All other marks are the property of their respective owners.
