SOHARD SH ARC-GATEWAY User Manual page 38

(Nagle's algorithm)
ARCNET settings
the ARCNET bit rate (selectable values depend on the
–
integrated ARCNET interface module)
the Extended Timeout factor (may be increased with
–
expanded ARCNET networks)
Setting the application protocol
selection of the application protocol, either SOHARD or, for
–
downward compatibility, ARCNET User Group e.V. (AUG)

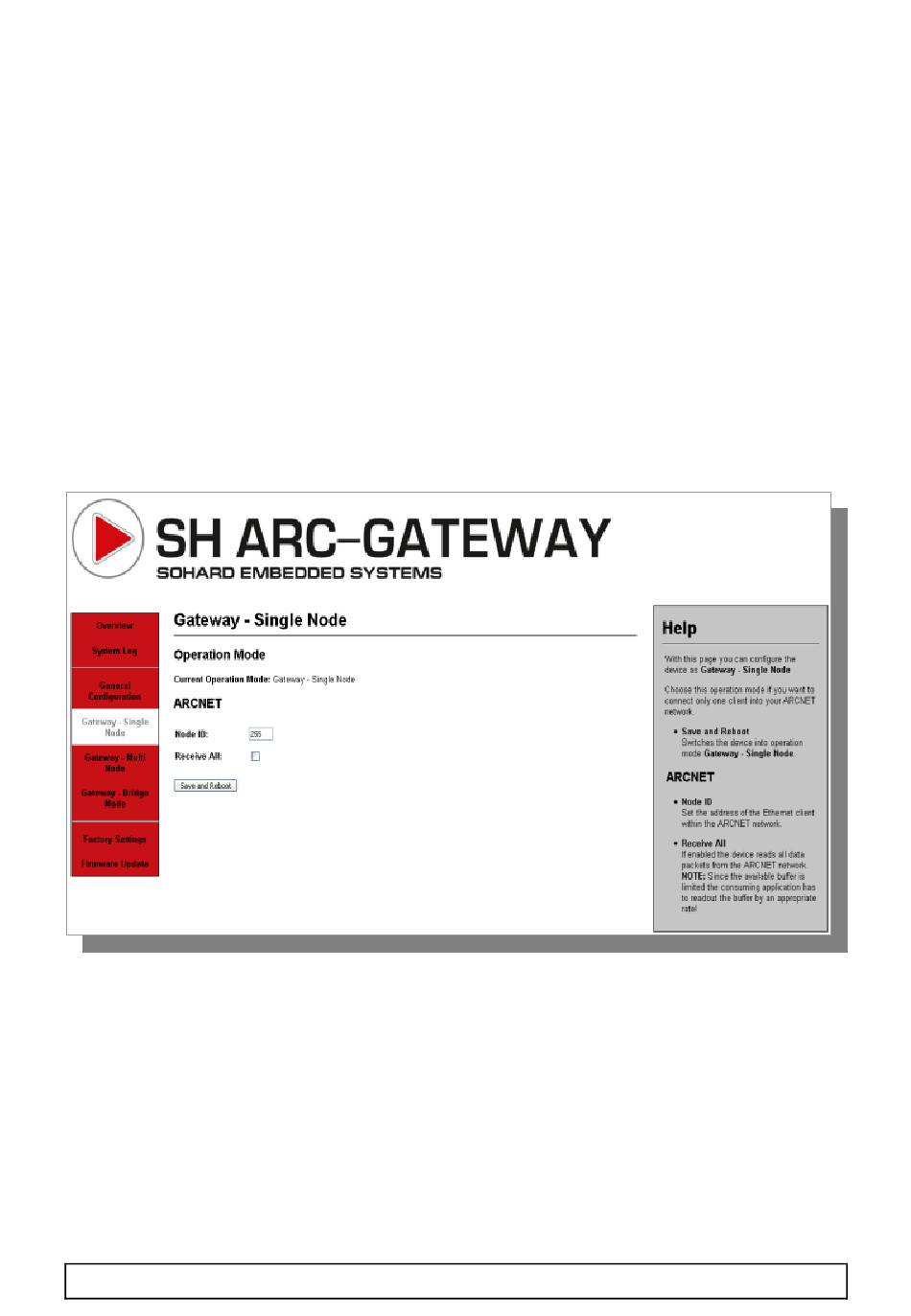

Page „Gateway – Single Node"
10.1.4
On this page the ARCNET settings for the Single Node Mode can be
changed. Single Node Mode means that the gateway appears only as one
node in the ARCNET network.
In Single Mode Node the ARCNET nodes (the gateway included) in the
network are also displayed by the Netmap on the page "Gateway – Multi
Node".Settings and their meaning are explained in the help on the web
page.
2024-01 38
