- Page 1 STANDARD 80g双胶纸 业务 图样标记 版本号 重量(g) 比例 杨 名 seller REV.NO. WEIGHT scale 批 准 AUTHORI 美的冰箱事业部 MIDEA REFRIGERATION DIVISION 共 页 第 页 TOTAL SHEETS NO. OF SHEETS 技术要求 1.尺寸：145*210mm 2.印刷颜色：单色（灰度印刷） 3.制件必须符合QMB-J036.1008 产品说明书及其它类似印刷件技术规范； 4.除客户特别要求外均参照美的冰箱最新版相关企业标准执行; 标记 变更内容 修改日期 签名 MARKER...

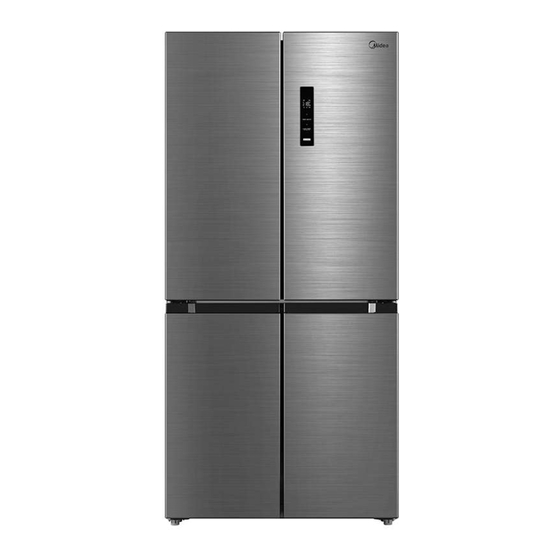

- Page 2 Refrigerator FOUR DOOR SERIES USER MANUAL MDRF632FIE* Download the app & activate product Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.
-
Page 4: Table Of Contents
THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way. -
Page 5: Specifications
Frequency Band 2400-2483.5 MHz 0 ℃ ~ 85 ℃ Operating Temperature Operation humidity: 10%~85% DC5V/500mA Maximum Power Input Transmission power: <20dBm Importer / Address: MIDEA HOME APPLIANCES UK LTD Conavon Court Ground Floor, 12 Blackfriars Street, Salford, Manchester M3 5BQ UK... -
Page 6: Product Overview
PRODUCT OVERVIEW Names of components Normal type LED lighting Up drawer Door tray Middle drawer Glass Shelf Down drawer Big drawer ATTENTION The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor. -
Page 7: Product Installation
PRODUCT INSTALLATION Install Instruction For refrigerating appliances with climate class • Depending on the climate class, this refrigerating appliance is intended to be • The climate class can be found on the rating plate. The product may not • E ective temperature range •... - Page 8 Space requirement diagram (when the door is open and when the door is closed) 135 ° Depth Width Overall Width Depth Without door doors open doors open Height 1775 1000 1400 Notice: All dimensions in mm...
- Page 9 Leveling feet To avoid vibration, the unit must be leveled. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws counterclockwise to raise the unit, clockwise lower it.
- Page 10 Changing the light • Any replacement or maintenance of the LED lamps is intended to be made by ATTENTION (G). Connecting the appliance After installing the appliance, connect the power plug into a socket outlet. ATTENTION After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you put food into the appliance.
-
Page 11: Operation Instructions
OPERATION INSTRUCTIONS Control panel Display Button Refrigerating icon Temperature up button Wireless Connection icon Temperature zone selection button Super cool / freezing icon Temperature down button Fruit/vegetable icon Vario temp select/ Wireless Connection Drink icon Lock/Unlock button Freezer icon Temperature display icon Lock icon Meat icon ATTENTION... - Page 12 Display • When electrify the refrigerator,the display screen will total display for 3 seconds. Meanwhile the starting up bell rings and then the screen enters the normal display of the operation. • refrigerating chamber and freezing chamber is 4° C/-18 °C respectively. •...
- Page 13 Mode setting • Mode setting Set the Super cooling mode: after the temperature of the refrigeration room is adjusted to 2°C, press the temperature down button “ ” to enter the super cooling mode In the super cooling mode, the temperature of the refrigerating chamber is automatically set to 2°C.
- Page 14 Fault indication • The following warnings appearing on the display indicate corresponding faults of the refrigerator. Though the refrigerator may still have cold storage function with the following faults, the user shall contact a maintenance specialist for maintenance, so as to ensure optimized operation of the appliance. Error code •...
- Page 15 Tips on storing food Freezer compartment • The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice. • Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.
- Page 16 Target Compartments Order storage Appropriate food TYPE temp. [°C] Eggs, cooked food, packaged food, fruits and Fridge +2 ∼ +8 vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing. aquatic products and meat products (***)*-Freezer ≤ -18 (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
-
Page 17: App Setup And Operation
APP SETUP AND OPERATION Download the SmartHome App On an app market (Google Play Store, Apple App SmartHome SmartHome app. Download and install it on your phone. You can also download the app by scanning the Download the app QR code below. &... - Page 18 NOTE 1. Make sure your devices are powered on. 2. Keep your mobile phone close enough to your device when you are connecting your device to the network. 3. Connect your mobile phone to the wireless network at home, and make sure you know the password of the wireless network.
-
Page 19: Cleaning And Maintenance
CLEANING AND MAINTENANCE Defrosting • The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel. Cleaning of door tray •... -
Page 20: Troubleshooting
TROUBLESHOOTING The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved. Problem Possible reason • Check whether the appliance is connected to power or whether the plug is in well contact Failed operation •... - Page 21 Problem Possible reason • Remove foreign matters on the door seal. Door seal fails to be tight • Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating). •...
- Page 22 DOC AND CERTIFICATIONS Declaration of Conformity names match each other respectively. Brand Midea Model Marketing Model Factory Model Midea HQ-611RWEN MDRF632FIE46 CE-BCD470WE-JT Application of Council Directives Standards, to which Conformity Is Declared EN IEC 55014-1:2021 EN IEC 61000-3-2:2019/A1:2021 EN IEC 61000-3-3:2013/A1:2019/A2:2021 EN IEC 55014-2:2021 Manufacturer’s Name:...
- Page 23 SmartHome functionality meets the essential requirements and other relevant provisions of the Directive 2014/53/EU. A detailed RED Declaration of Conformity can be found online at www.midea. com among the additional documents on the 2.4 GHz band:100mW max. product page for your appliance.
-
Page 24: Appendix
APPENDIX Special for new European standard The ordered parts in the following table can be acquired from Service provider channel Ordered part Provided by Minimum time required for Provision Thermostats Professional maintenance At least 7 years after the last model is personnel launched on the market Temperature... - Page 25 BXUM-0179-01.indd 24 2022-12-6 15:12:14...
