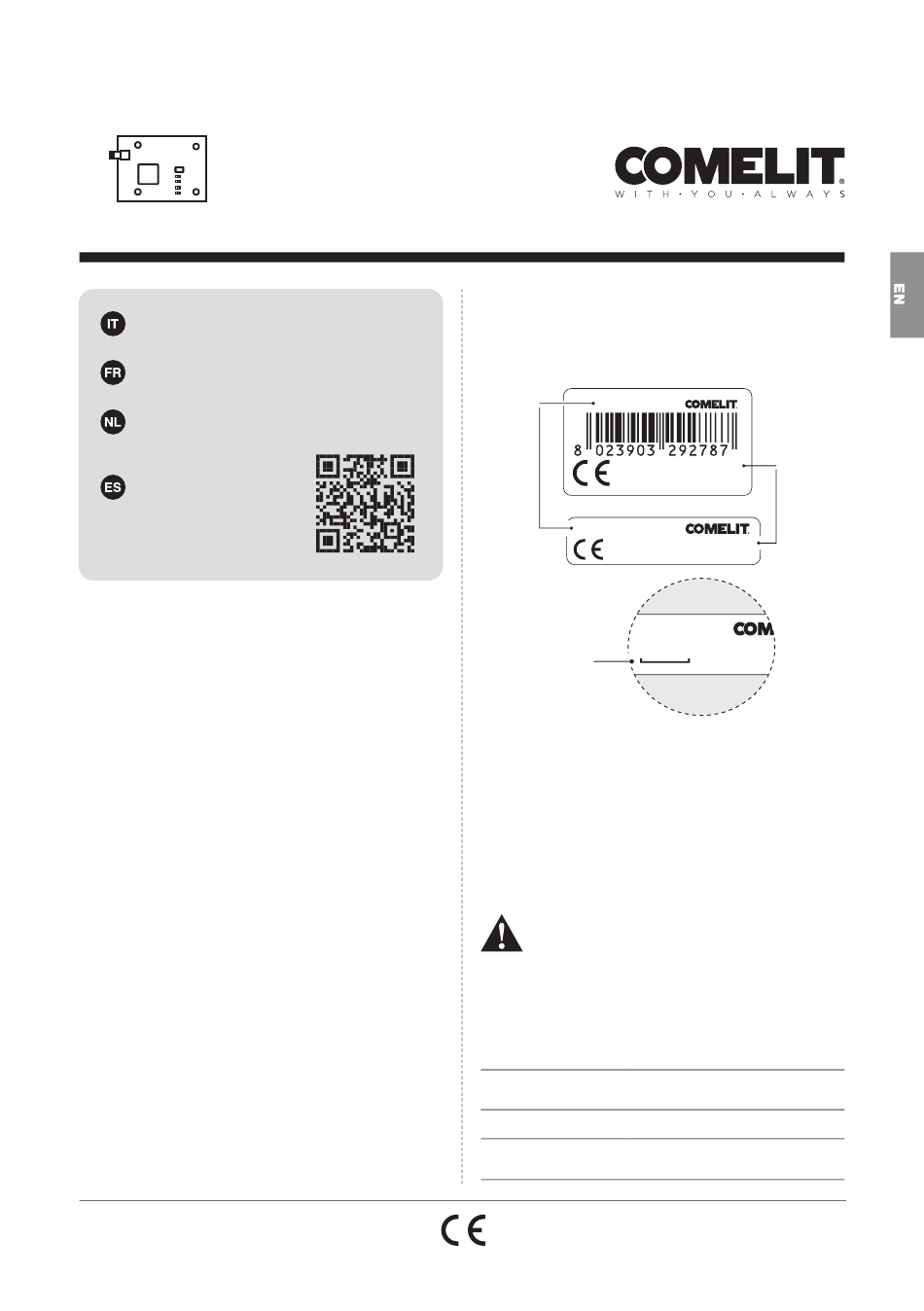

Vedo
VEDOGSM
T E C H N I C A L M A N U A L
Scansionare il seguente codice QR per
leggere questo manuale in italiano
Encadrer le code QR ci-après pour lire ce
manuel en français
Scan de volgende QR-code voor deze
handleiding in het
Nederlands
Escanear el
siguiente código
QR para leer este
manual en español

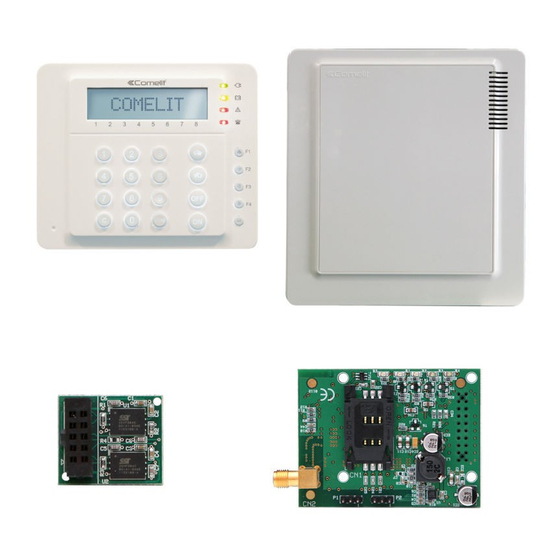

GSM communication card
for Vedo Control Panels
The GSM communication expansion module Art.
VEDOGSM allows telephone calls, SMS, MMS
and emails to be sent on the data network, plus
the sending of digital protocols and date and time
synchronisation. Combined with the voice message
board Art. VEDOVOICE, it allows remote management
of the control panel by a voice dialler.
Main features
• GSM850, EGSM900, DCS1800, PCS 1900
• GSM/GPRS channel support
• Main or reserve telephone dialler
• Indication of alarms, malfunctions, sabotage and
events via SMS
• Customisable SMS alerts
• Control panel status interrogation via SMS
• Checking residual credit of the prepaid SIM
• Transmission of Voice Messages via GSM
• Event transmission in Contact-ID and SIA (Level
1) format via GSM and over TCP-IP (SIA-DC-09
protocol support)
• Event transmission by email with images
• Event transmission by MMS
• Date and time updating
Protocol number
All products have an identifi cation label for
traceability. Two examples are shown below:
item
VEDOGSM
code
991201PWWYYXXXXXXXX
Via Don Arrigoni, 5
24020 Rovetta (BG) - Italy
VEDOGSM
991201PWWYYXXXXXXXX
Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy
VEDOGSM
991201PWWYYXXXXXXXX
PROTOCOL
NUMBER
Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy
Compatibility
This manual refers to the VEDOGSM model with
≥
protocol number
991201 or equal to 98xxxx,
which can only be used with Comelit VEDO
control panels, fi rmware version
For previous models, please refer to the specifi c
manual available at the website pro.comelitgroup.com
The
VEDOGSM
version ≤004 may only be used with Comelit
VEDO control panels featuring firmware
version ≤2.12.5 (Protocol number example
004PWWYYXXXXXXXX)
Technical specifi cations
Manufacturer /
Comelit Group S.p.A.
supplier
Dimensions (WxHxD) 72x48x29 mm (without antenna)
Weight 23 g without antenna
41 g with antenna
serial
number
≥
2.13.0
module
with
firmware
Advertisement
Related Manuals for Comelit VEDOGSM
Summary of Contents for Comelit VEDOGSM
- Page 1 VEDOGSM allows telephone calls, SMS, MMS Compatibility and emails to be sent on the data network, plus the sending of digital protocols and date and time This manual refers to the VEDOGSM model with synchronisation. Combined with the voice message ≥ protocol number 991201 or equal to 98xxxx, board Art.
- Page 2 Consumption 10 mA in Idle Sharing of GSM: GSM850, EGSM900, 60 mA in communication (min./max.) transmission DCS1800, PCS 1900 connections Class 4 (2W) for GSM850 / Average power consumption EGSM900 in 1 h: 20 mAh 1 alarm every 5 Class 1 (1W) for DCS1800 / minutes communication PCS1900...
- Page 3 Installation 1. Make sure the board on which you intend to fit the module is not connected to the power supply! 2. Insert the plastic spacers in the relevant holes. 3. Then, taking care to plug the module connector into the control panel connector designated MOD5 correctly, apply sufficient pressure to engage the spacers in the GSM expansion card and plug the connector in almost completely.
- Page 4 Do not use alcohol or aggressive products for cleaning purposes. 2. Gently force the top of the SIM connector towards • Comelit Group S.p.A. accepts no liability for any purpose the centre of the control panel board (downwards other than the intended use, or failure to observe the if the control panel is already mounted on the wall).
