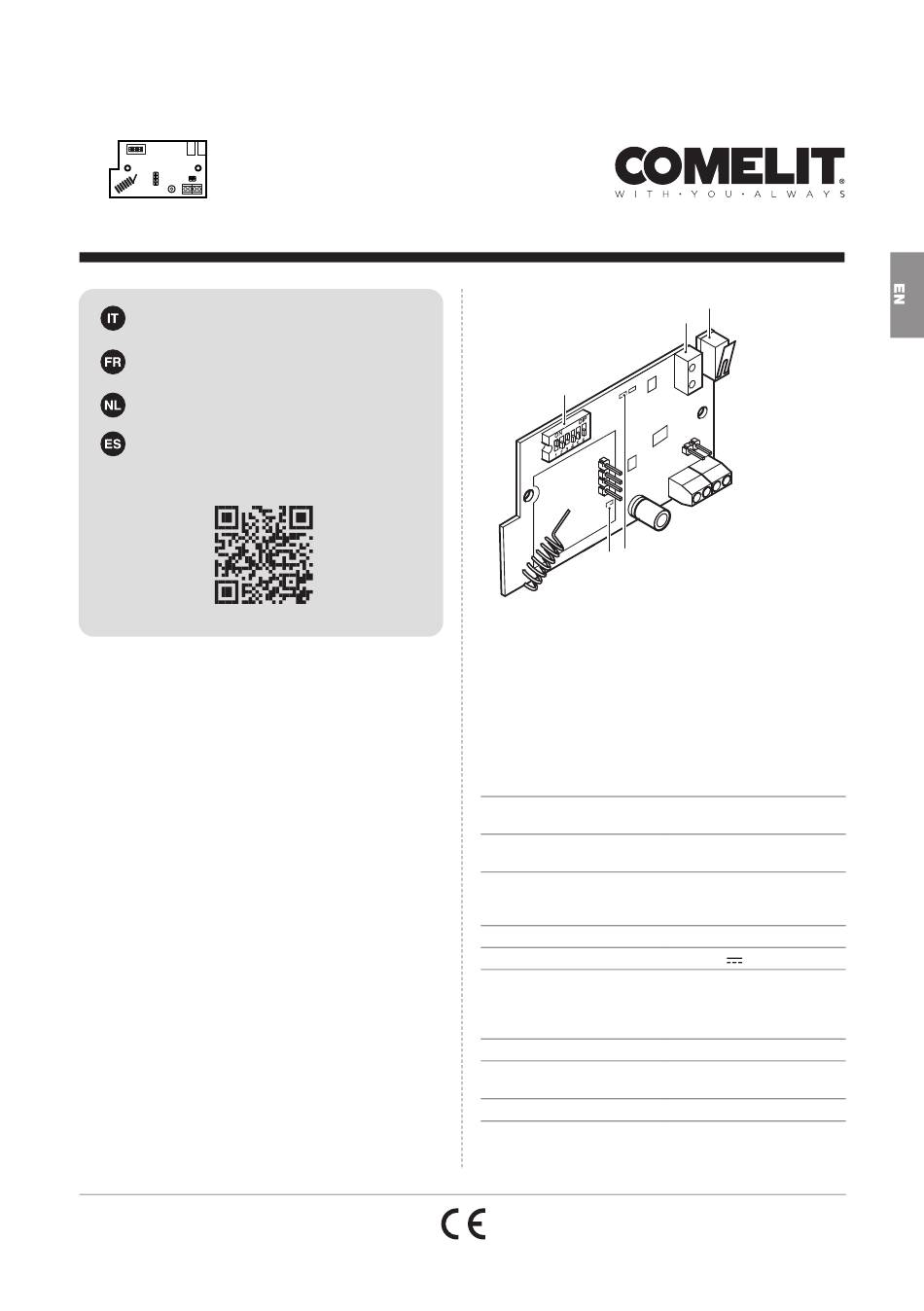

Comelit Vedo Technical Manual

Vedo
RF10VEDO - RF32VEDO
T E C H N I C A L M A N U A L
Scansionare il seguente codice QR per
leggere questo manuale in italiano
Encadrer le code QR ci-après pour lire ce
manuel en français
Scan de volgende QR-code voor deze
handleiding in het Nederlands
Escanear el siguiente código QR para leer
este manual en español

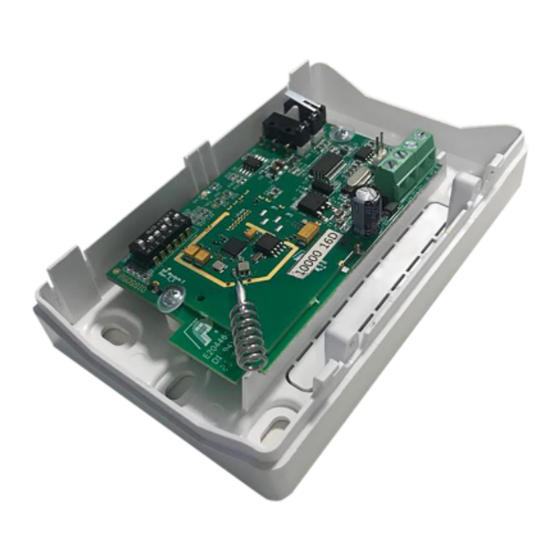

Bidirectional radio
expansion on bus
The modules operate in two-way mode (reception
and transmission). This makes it possible to pair
radio controls, radio alarm sensors (contacts and/
or volumetric detectors) and supervised wireless
sounders with the control panel.
Main features
• RF10VEDO: Up to 10 radio zones, 8 radio outputs
and 16 radio controls
• RF32VEDO: Up to 32 radio zones, 16 radio outputs
and 32 radio controls
• Option of bidirectional communication
• Operating frequency in 868 MHz band, FSK mode
• Sensor and sounder status monitoring
• Separate management of intruder and sabotage
alarms
• Radio device power supply monitoring, including
sounders
• Monitoring
1
4
5
1. DIP switches
2. Anti-tear tamper
3. Anti-tamper tamper
4. LED D4
5. Radio channel LED
Technical specifi cations
Name of manufacturer /
supplier
Dimensions (w x h x d) 126 x 80 x 32 mm (in the
Weight 137 g with housing and
Consumption (min./max.) 55 mA medium, 60 mA max.
Operating voltage 10 - 15 V
Operating temperature
and Operating humidity
Certifi able safety grade 2 according to EN50131-1*
Device Type TYPE B according to
Environmental class II according to EN50131-1
* When observing any confi guration and installation instructions
provided
3
2
Comelit Group S.p.A.
housing)
screws for fi xing to the wall
35 g board only
-10 °C / + 55 °C with warm
dry air
-10 °C / + 40 °C with max. +
93% RH (not condensed)
standard EN50131-3
