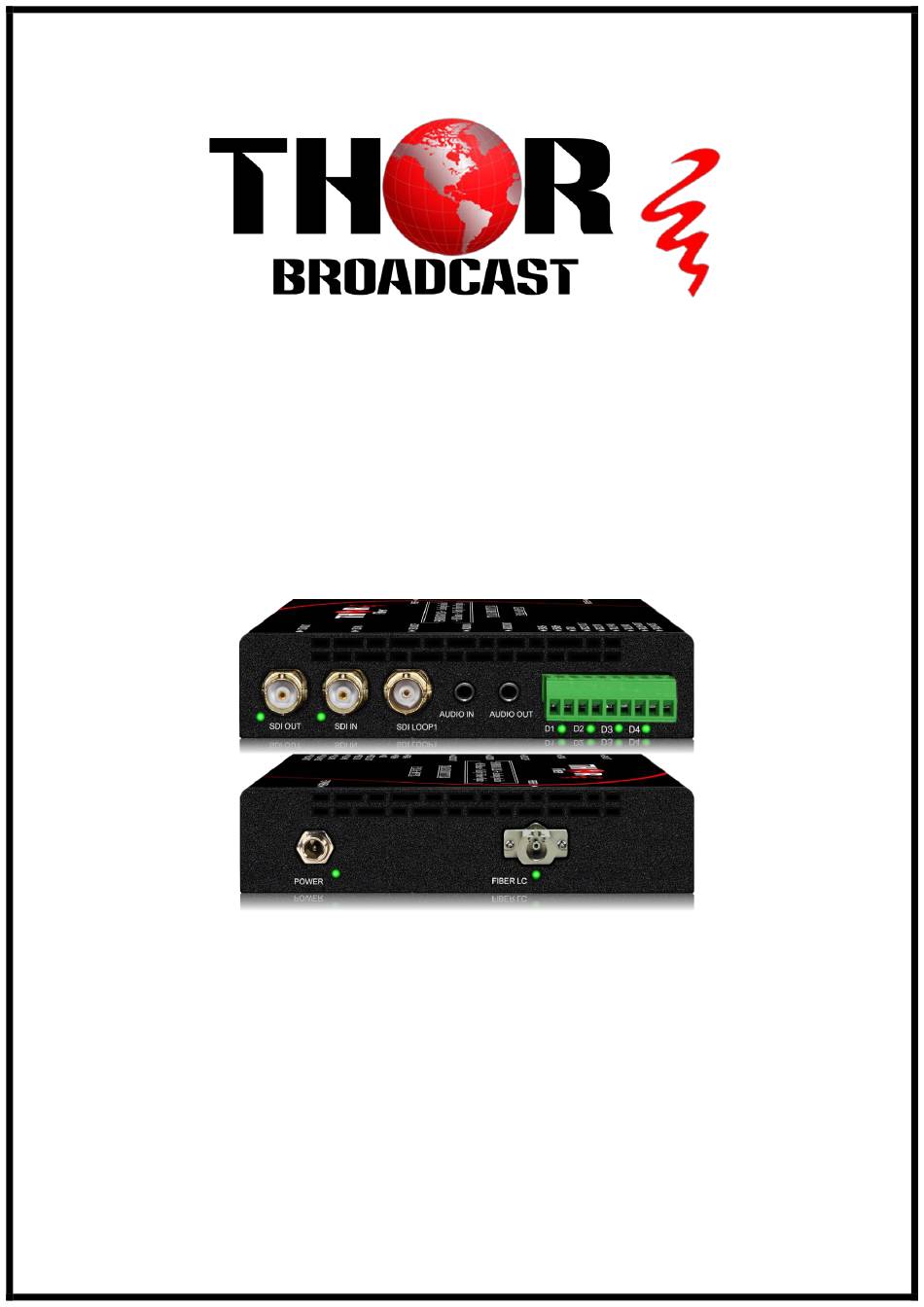

- Page 1 User Manual SD/HD/3G/12G + Analog Audio + RS Data + Tally Fiber Optic F-12G-A-D-T/R-TX/RX...
- Page 2 F-12G-A-D-T/R-TX/RX SD/HD/3G/12G + Analog Audio + RS Data + Tally Fiber Optic Overview 12G-SDI UHD multi-function fiber optic transmitter and receiver sets are now combining multiple effective inputs and outputs to follow client demand of the market. Through a single optical fiber these units can transmit one channel of bidirectional 12G-SDI video, bidirectional 3.5 stereo audio, and bidirectional RS232/485/422 serial port data/bidirectional tally signal with CWDM technology, All this is completed with zero delay and no compression, of high-quality signal extension of 10km.
- Page 3 F-12G-A-D-T/R-TX/RX 3.Both transmitter and receiver have reclock functionality 4.Signal input has automatic cable equalization (EQ) function, output has drive (CD) function; 5. One channel bidirectional 3.5 stereo audio independent transmission. 6. RS232/485/422 serial port data transparent transmission. 7. One channel bidirectional tally signal 8.
- Page 4 F-12G-A-D-T/R-TX/RX 96db Signal to noise ratio（SNR） 600Ω Audio input/output impedance Signal level VPP 3.5V Physical interface 3.5mm stereo audio socket Signal type Stereo audio Data parameter Standard Compliance with the EIA RS-232,RS-485,RS-422 standard Physical interface Industrial terminal/3.81mm Baud rate 50bps to 115200 kbps (support non-standard baud rates) RS232 3-wire(RXD,TXD,GND),full-duplex, point to point...

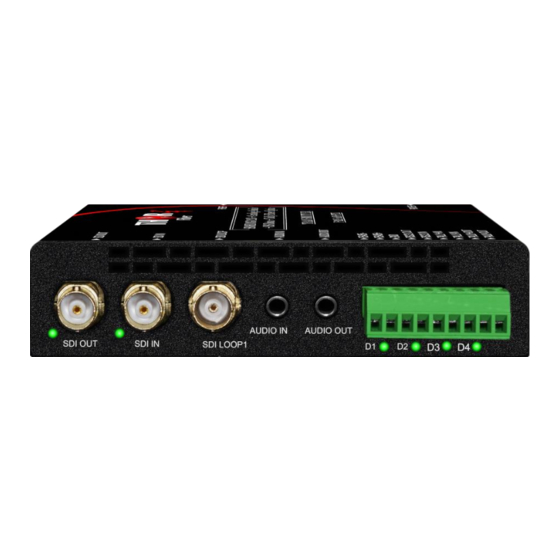

- Page 5 F-12G-A-D-T/R-TX/RX SDI OUT 12G SDI signal output SDI IN 12G SDI signal input SDI LOOP 12G SDI signal loop out AUDIO IN 3.5mm audio input AUDIO OUT 3.5mm audio output RS232 1 GND Ground wire 2 RS232 IN Input 3 RS232 OUT Output Host USB Front panel...
- Page 6 F-12G-A-D-T/R-TX/RX Indicator status Name Analysis Status Description SDI OUT 12G-SDI signal output Light on：video signal Light off：no video signal SDI IN 12G-SDI signal input Light on：video signal Light off：no video signal DATA 1 Blinking:data signal Off: no data signal DATA 2 Blinking:data signal Off: no data signal TALLY 1...
- Page 7 F-12G-A-D-T/R-TX/RX Receiver printed / indicator description SDI OUT 12G SDI signal output SDI IN 12G SDI signal input SDI LOOP 12G SDI signal loop out AUDIO IN 3.5mm audio input AUDIO OUT 3.5mm audio output RS232 1 GND Ground wire 2 RS232 IN Input 3 RS232 OUT...
- Page 8 F-12G-A-D-T/R-TX/RX Indicator status Name Analysis Status Description SDI OUT 12G-SDI signal output Light on：video signal Light off：no video signal SDI IN 12G-SDI signal input Light on：video signal Light off：no video signal DATA 1 Blinking:data signal Off: no data signal DATA 2 Blinking:data signal Off: no data signal TALLY 1...
- Page 9 F-12G-A-D-T/R-TX/RX Connection Diagram Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com 9 / 10...
- Page 10 F-12G-A-D-T/R-TX/RX The connection diagram is for reference only! Attention It is recommended to use the short optical fiber link for the first time to ensure that all the functions of the equipment are normal, and then connect longer distance fiber. The signal of fiber optic converter can be output to a power amplifier, but the audio source of the power amplifier can’t output the audio source signal to the fiber optic converter, otherwise the equipment will be terminated.
