Pressure Lubricated
Air Compressor
Installation,
Maintenance,
And
Service Data
Contents:
Safety Precautions
Preventative Maintenance Schedule
Unpacking and Inspection
Installation – Mechanical
Lubrication
Installation – Electrical
Start-up Procedures
Trouble-Shooting Guide
Ingersoll-Rand Limited Warranty
Please read this manual before
Compressor Unit. It contains
valuable information that will
Please keep this manual in a
safe place for future reference.
procedures in this reference manual apply
Ingersoll Rand
490 Welham Road,
Barrie, ON L4N 8Z4, Canada
Tele: 1-800-483-4981
Web: www.ingersollrand.com
Email: AirPS@irco.com
- 1 -
installing or using your Air
help in the receiving,
installation, use, and
maintenance of the Unit.
All of the information, policies, and
exclusively to Ingersoll Rand.
PL-MANW
Rev.B, Nov'20
Page:
2
3
4
5
6
7-8
9
10-13
14-15
Advertisement
Table of Contents

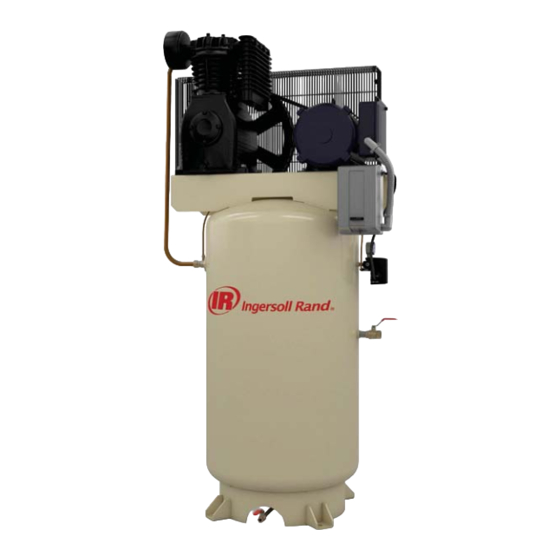

Related Manuals for Ingersoll-Rand 247PD5-P
Summary of Contents for Ingersoll-Rand 247PD5-P
- Page 1 Lubrication Maintenance, Installation – Electrical Start-up Procedures Trouble-Shooting Guide 10-13 Service Data Ingersoll-Rand Limited Warranty 14-15 Please read this manual before installing or using your Air Compressor Unit. It contains valuable information that will help in the receiving, installation, use, and maintenance of the Unit.
-
Page 2: Safety Precautions
PL-MANW Rev.B, Nov’20 Safety Precautions To operate the Compressor Unit safely and correctly, we have opted to use the following symbols to make you aware of important points. These points relate to user safety and preventing equipment problems. Please pay close attention to these sections. -
Page 3: Preventative Maintenance Schedule
PL-MANW Rev.B, Nov’20 Preventative Maintenance Schedule Noted below are general maintenance guidelines, which must be followed and documented, this in accordance with the Ingersoll Rand Warranty. It is based on an approximate Compressor usage of 30 hours per week. If your particular application varies from this, please adjust accordingly. -
Page 4: Unpacking And Inspection
Shipments of Ingersoll-Rand products are the property of the Consignee when the products leave our facility. Ingersoll-Rand Inc. is not responsible for any damages or shortages caused to the product after it has left our shipping dock. -
Page 5: Installation - Mechanical
This unit must be anchored to the floor as To reduce the risk of electric shock or injury, use indicated at above-right. Ingersoll-Rand has available Installation Kits which include (4) indoors only. Vibration Isolator Pads, (1) Stainless Steel Flex Hose, and Steel and Rubber Washers. -
Page 6: Initial Start-Up
Oil level on a monthly basis. Crankcase. Add oil as required. Serious damage may result from use, however limited, Use only Ingersoll-Rand All Season Select Oil. Also, do without oil. not mix the Ingersoll-Rand oil with any other lubricant. -
Page 7: Installation - Electrical
Before servicing the Unit, ensure the power Ensure that a suitable Fused Disconnect or Breaker (by source has been shut down and locked off. others than Ingersoll-Rand) is installed in the electrical supply before the Compressor Unit. Read and understand the information... -
Page 8: Pump Rotation
Installation – Electrical (cont’d) Why Hire a Licensed Electrician? Motors. To ensure that your new Ingersoll-Rand Unit works as Ensure that the voltage on your site is reflected on the designed and required, you must ensure that it is Motor nameplate, +/- 10%. In the case of 208 volts 3 correctly wired to your building service. -
Page 9: Start-Up Procedures
Allow the Unit to operate in this fashion for 5 minutes. This lubricates the Pistons, Bearings, and all internal surfaces. During the first few days of operation, check the Unit periodically to ensure it is running smoothly. Should you have any concerns, contact your Ingersoll-Rand Distributor. - 9 -... -
Page 10: Troubleshooting Guide
Compressor Unit unless you are familiar with it, as there are many issues that may come into play, the most important being personal safety and the welfare of the Unit. Should you have any questions, or require servicing to your Unit, please contact your local Ingersoll-Rand Distributor. - Page 11 Ensure the Unit is mounted level. Use Vibration Pads. Improper level or grade of oil in Pump. Use correct Ingersoll-Rand oil, and check that level is correct. Carbon or other foreign material on Piston Clean top of Piston. Check Cylinder walls for head.
- Page 12 PL-MANW Rev.B, Nov’20 Condition: Cause: Suggested Correction: E. Appearance of Water in Tank is not being drained regularly. Drain the Tank on a daily basis. Purchase a the Air Lines and/or Oil Tank Autodrain if required. ‘milky’ in Colour. Unit is not being used enough to burn off If using the Unit very infrequently, run for 30 any water in the Pump.
- Page 13 PL-MANW Rev.B, Nov’20 Condition: Cause: Suggested Correction: J. Intercooler Safety Valve Dirty or defective Valves will cause back Clean, repair or replace the Valves. Pops Continuously. pressure. Intercooler clogged with carbon. Clean or replace. - 13 -...
-
Page 14: Warranty And Limitation Of Liability
PL-MANW Rev.B, Nov’20 WARRANTY AND LIMITATION OF LIABILITY WARRANTY Ingersoll Rand company warrants that the equipment manufactured by it and delivered hereunder shall be free of defects in material and workmanship for a period of twelve (12) months from the date of placing the equipment in operation or eighteen (18) months from the date of shipment, whichever shall occur first. - Page 15 INTERRUPTION WHETHER OR NOT SUCH LOSS OR DAMAGE IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, INDEMNITY, STRICT LIABILITY OR OTHERWISE. Ingersoll-Rand Inc. 490 Welham Road, Barrie, ON L4N 8Z4, Canada Tele: 1-800-483-4981 © Copyright Ingersoll-Rand Inc. 2020 Printed in Canada - 15 -...
