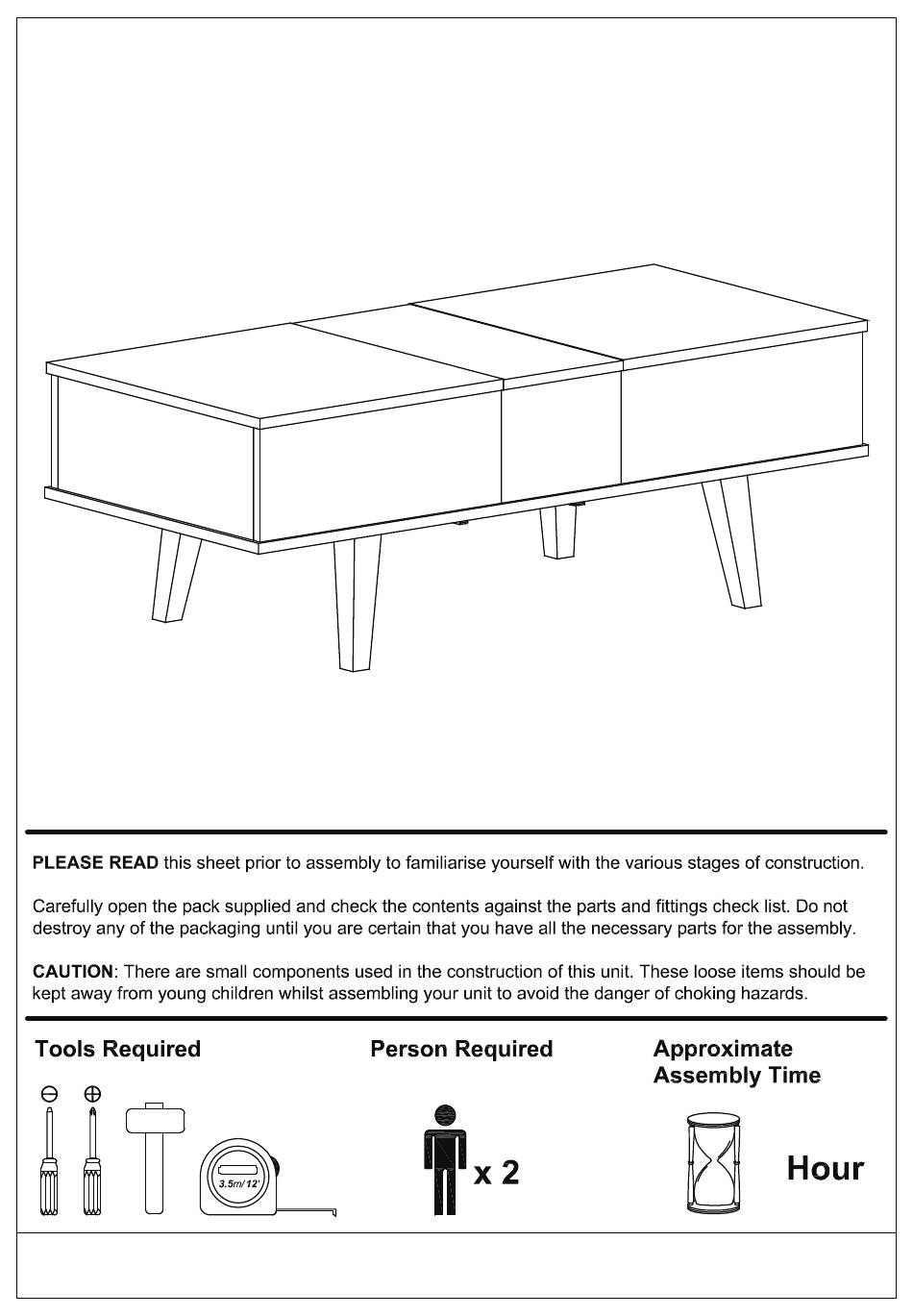

MODENA DOUBLE LIFTING COFFEE TABLE
ASSEMBLY INSTRUCTIONS
DOUBLE LIFTING COFFE TABLE.
Thank you for purchasing the
Please read the instructions carefully to ensure safe operation of the product.
Size: (W)
1
1
2
0
x (D)
5
0
0
x (H)400mm
Colour : Melamine Grey
2
Batch No : PO# 3490
Page
Page 1 of 12
V1 3/19
Advertisement
Related Manuals for GFW MODENA 780/8102
Summary of Contents for GFW MODENA 780/8102
- Page 1 MODENA DOUBLE LIFTING COFFEE TABLE ASSEMBLY INSTRUCTIONS DOUBLE LIFTING COFFE TABLE. Thank you for purchasing the Please read the instructions carefully to ensure safe operation of the product. Size: (W) x (D) x (H)400mm Colour : Melamine Grey Batch No : PO# 3490 Page Page 1 of 12 V1 3/19...
- Page 2 This product is intended for a maximum weight of 25kgs and drawer load capacity 7kg each. Do not exceed this weight. Due to the size of this product we recommend that is assembled in the room intended for use. When you ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly Unwrap all packaging materials and place the components on top of the carton box or not on a clean floor to prevent it from scratching.
- Page 3 Side Panel (16 x 168 x 458mm) Centre Front & Back panel (15 x 168 x 220mm) Centre Panel (16 x 168 x 458mm) Fix Panel (15 x 167 x 190mm) Front & Back Panel (16 x 168 x 443 mm) Top Lifting Panel (R) (16 x 500 x 448mm) Bottom Panel (16 x 500 x 1120mm) Top Lifting Panel (L) (16 x 500 x 448mm)
- Page 4 M6 x 40mm (Black) M4.7 x 38mm D6 x 30mm M5 x 29mm JCBC Screw CSK Screw Wooden Dowel Minifix Bolt M4 x 25mm M3.5 x 15mm D15 x 12mm Csk Screw Csk Screw Minifix Cam (120 mm) Minifix Cap J-Bracket Door Stopper Solid Wood Legs...
- Page 5 STEP 1 42 x Parts Required Qty Parts Required Qty Panel (C) Panel (A) Panel (E) Panel (B) Panel (G) Page 5 of 12 V1 3/19...
- Page 6 STEP 2 12 x Parts Required Qty Panel (C) Panel (F) Panel (I) STEP 3 Parts Required Qty Panel (E ) Panel (G) Page 6 of 12 V1 3/19...
- Page 7 STEP 4 STEP 4 Parts Required Qty Parts Required Qty Panel (F ) Panel (F ) STEP 5 STEP 5 Parts Required Qty Parts Required Qty Parts Required Qty Parts Required Qty Panel ( ) Panel ( B ) Panel ( ) Panel ( A ) Panel ( ) Panel ( C )
- Page 8 STEP 6 FRONT FRONT 175.0 175.0 175.0 175.0 135.0 135.0 135.0 135.0 BACK BACK 57.0 42.0 42.0 57.0 20 x Parts Required Qty Parts Required Qty Panel (H1) Panel (H2) STEP 7 32 x The Tops can assembled either both open on the same sides or opposite sides. Left opening Right opening BACK...
- Page 9 STEP 8 Parts Required Qty Parts Required Qty Panel ( ) Panel ( D ) STEP 9 Page 9 of 12 V1 3/19...
- Page 10 STEP 10 Parts Required Qty Parts Required Qty Panel (D) STEP 11 *IMPORTANT *CHECK THAT TOP & STORAGE UNIT 16 x ARE CORRECT ALIGNED AS DETAILED IN FIGURE A1 BEFORE ASSEMBLE ON PANEL D. FIGURE A1 Page 10 of 12 V1 3/19...
- Page 11 STEP 12 STEP 13 Parts Required Qty Parts Required Qty Panel (I) Page 11 of 12 V1 3/19...
- Page 12 DOUBLE LIFTING COFFE TABLE Your is now completely assembled Page 12 of 12 V1 3/19...
