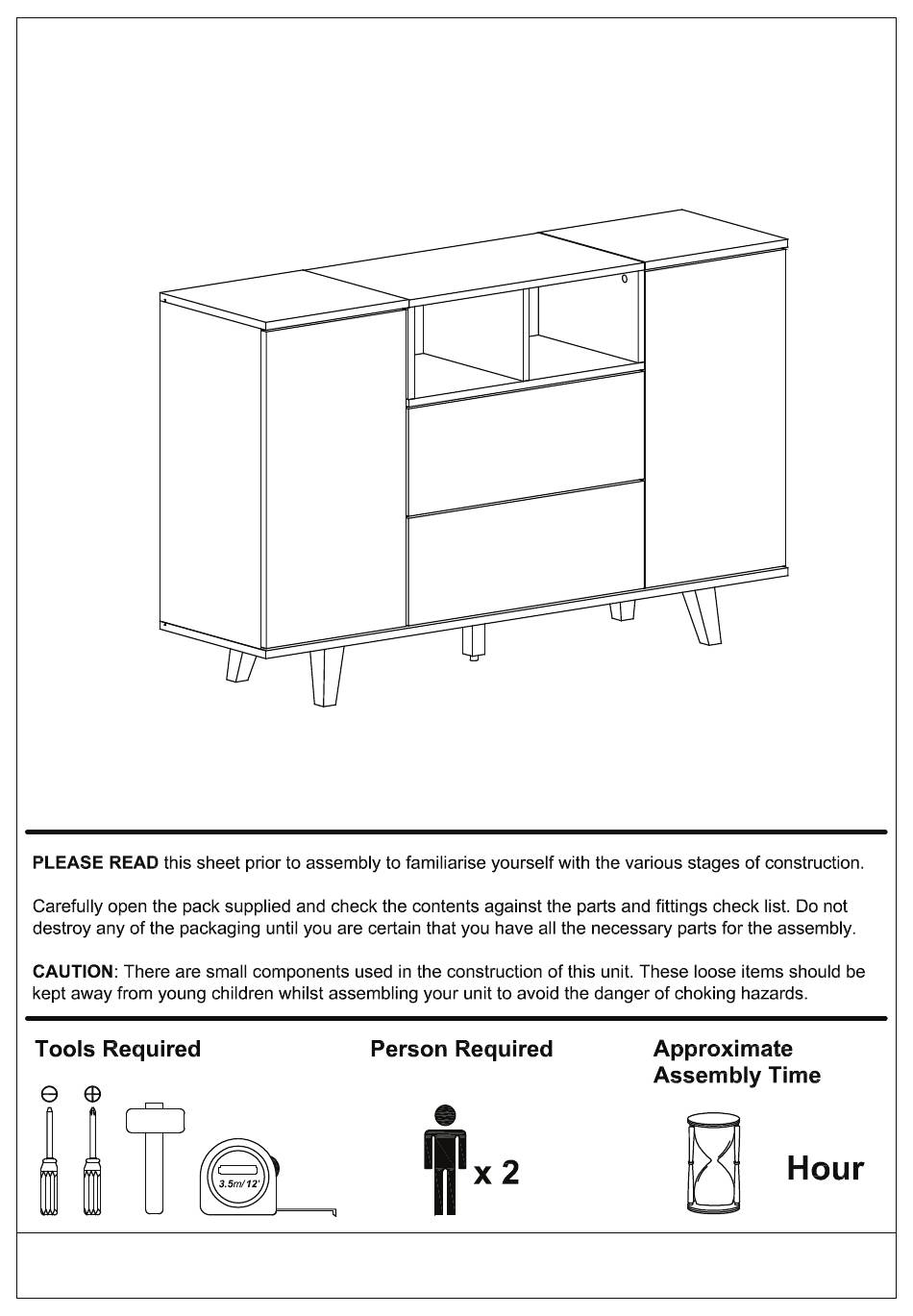

MODENA SIDEBOARD CONSOLE ASSEMBLY INSTRUCTIONS

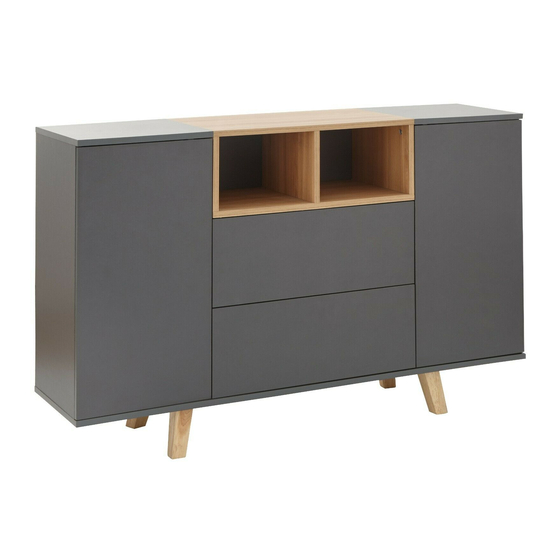

SIDEBOARD CONSOLE
Thank you for purchasing the
Please read the instructions carefully to ensure safe operation of the product.
Size: (W)
1
3
0
0
x (D)
3
5
0
x (H)800mm
Colour : Melamine Grey
2
Batch No : PO# 3490
Page
Page 1 of 16
V1 3/19
