OWNER'S MANUAL
Double Play
Model No. DP249
Serial No.
Write the serial number in the
space above for reference.
CAUTION
Read all precautions and in-
structions in this manual be-
fore using this product. Keep
this manual for
future reference.
DO NOT RETURN TO STORE, CALL 1-800-492-9334

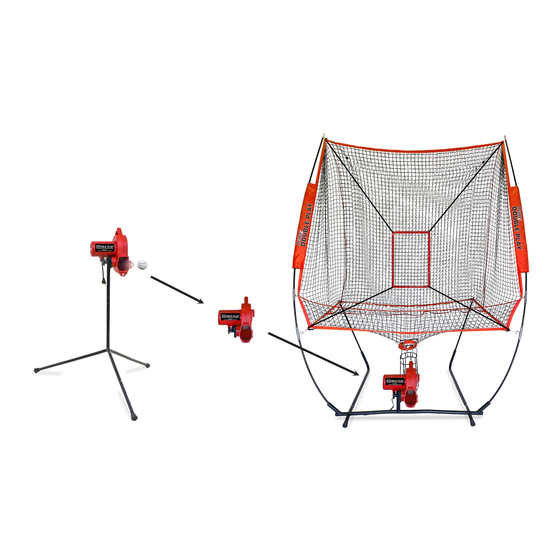

Pitching & Pitch Back Machine
TM
www.HeaterSports.com
Instructions Date: 09/2023
Version: 00001
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty, call
1-800-492-9334
CUSTOMER CARE
For customer service inquiries,
please call our toll free line
at 1-800-492-9334.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Double Play DP249 and is the answer not in the manual?

Questions and answers

Summary of Contents for Heater Sports Double Play DP249

  • Page 1 OWNER'S MANUAL Double Play Pitching & Pitch Back Machine Model No. DP249 ACTIVATE YOUR WARRANTY Serial No. Write the serial number in the To register your product and space above for reference. activate your warranty, call www.HeaterSports.com 1-800-492-9334 Instructions Date: 09/2023 CAUTION Version: 00001 CUSTOMER CARE...
  • Page 2: Parts List

    PARTS LIST *Replacement Parts Available by Calling Heater Sports PITCHING MACHINE & TRIPOD Pre-Assembled Pole Clamp Clamp Knob Power Cord Length May Vary Housing Tripod Stake Right Frame Left Frame Machine Attachment Part 1 Part 2 Part 3 Part 4...
  • Page 3 TRIPOD ASSEMBLY *FOR BATTING Assemble the Tripod to Legs as shown below when using machine for batting. Use Stakes to secure back legs of machine to ground for added stability. *IMPORTANT: Make Sure the Machine is Mounted so the Ball Exits Over the Front Leg When Pitching! Side View Front View...
  • Page 4: Frame Assembly

    FRAME ASSEMBLY Assemble the Frame as shown below.. Use Stakes to secure the frame to ground for added stability. Top View Front View www.HeaterSports.com 800-492-9334...
  • Page 5: Net Assembly

    NET ASSEMBLY Slide the netting over the fiberglass frames as shown below and attach the net to the frame in the locations circled below. Next, hang the provided strike zone to in the 4 corners of the frame and adjust to place strike zone in the center of the catch net.
  • Page 6 Always ensure machine has 40-45 psi in the tire when in use and alignment marks are in line. If you notice vibration, noise, or change in performance refer to instructions on how to correct an unbalanced wheel or call Heater Sports customer service at 1-800-492-9334. www.HeaterSports.com...
  • Page 7 Never use or leave the machine in rain/moisture. Doing so can ruin the machine & void its warranty. Heater Sports recommends using heater pitching machine balls in the Double Play machine. These balls have been precisely crafted to provide you with hours of accu- rate, trouble free batting and fielding practice.
  • Page 8: Operation

    OPERATION WARNING: MAKE SURE MACHINE IS UNPLUGGED AND THE TIRE IS NOT SPINNING WHILE CHECKING Pre-Operation #1 Locate Allen Wrench (provided in package) and unscrew (3) three wheel cover screws. **Important: Periodically inspect the tire to make sure it's not worn out or punctured.
  • Page 9 CAUTION! USE HEATER PITCHING MACHINE BALLS FOR THE MOST ACCURATE PITCH POSSIBLE. PITCHING MACHINES THAT USE A WHEEL TO THROW BALLS WILL NOT THROW REAL BALLS AS ACCURATE BECAUSE OF THE SEAMS ON THE BALL. IMPORTANT: THIS PRODUCT IS TO BE USED BY ADULTS ONLY. MAKE SURE MACHINE IS TURNED OFF BEFORE ASSEMBLY! KEEP HANDS AND ALL BODY PARTS AWAY FROM BALL ExIT! SERIOUS HAND AND BODILY INJURY MAY RESULT IF USED INCORRECTLY! Step 1:...
