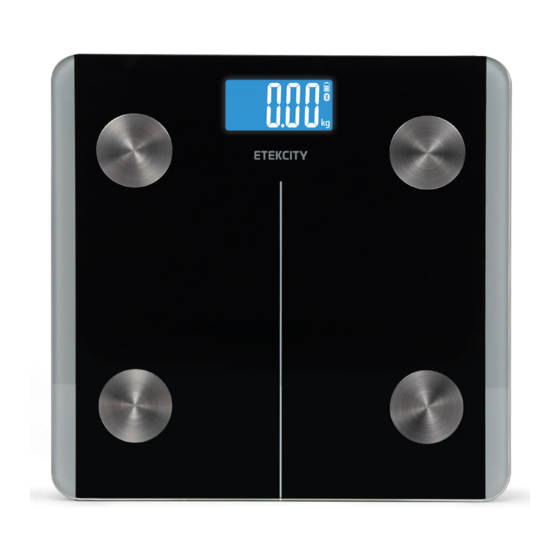

- Page 1 Smart Fitness Scale Model: ESF93 User Manual Questions or Concerns? Mon–Fri, 9:00 am–5:00 pm PST/PDT support@etekcity.com • 1-855-686-3835...
-
Page 2: Table Of Contents
Table of Contents Specifications Package Contents Safety Information Function Diagram Display Diagram VeSync App Setup Using the Smart Scale Maintenance Common Display Codes Troubleshooting Warranty Information Customer Support... -
Page 3: Specifications
Specifications Input DC 5V, 500mA Weight Capacity 400 lb / 28 st / 180 kg Increments 0.1 lb / 0.05 kg (≤ 400 lb) Weight Units lb / st / kg Platform Tempered Glass 11.8 x 11.8 x 1.0 in / Dimensions 30 x 30 x 2.49 cm Battery Type 3.7V, 300mAh Li-ion Battery... -
Page 4: Safety Information
READ AND SAVE THESE INSTRUCTIONS Safety Information Please read and follow all instructions and safety guidelines in this manual. Medical • This scale should not be used to diagnose or treat any medical condition. • Scale data should not be used as a substitute for medical advice from a healthcare professional. - Page 5 General Use • Check the scale before using. Do not use the scale if it is damaged in any way. • Do not strike or bang on the scale and do not use the scale if there is a crack on the glass. While tempered glass is stronger and fractures more safely than ordinary glass, it may shatter unexpectedly after developing a slight crack.
-
Page 6: Function Diagram
Function Diagram LCD Display USB Type-C Charging Port Weighing Platform Anti-Skid Padding Reset Button USB Type-C Charging Cable... -
Page 7: Display Diagram
Display Diagram Weight Measurement Battery Life Indicator Bluetooth Icon ® Weight Units... -
Page 8: Vesync App Setup
VeSync App Setup Note: Due to app updates and improvements, the VeSync app may be slightly different than shown in the manual. In case of any differences, follow the in-app instructions. To download the VeSync app, scan the QR code or search “VeSync”... - Page 9 Open the VeSync app. If you already have an account, In. To create a new account, tap Sign Note: You must create your own VeSync account to use third-party services and products. These will not work with a guest account. With a VeSync account, you can also allow your family and friends to use your smart fitness scale.
- Page 10 Creating a User If you are a new user, you will need to enter physical information before weighing yourself for the first time so the scale can calculate your body metrics. Follow the in-app instructions to create a user. Note: •...
-
Page 11: Using The Smart Scale
Using the Smart Scale Note: • Fully charge before first use. • To see measurements besides weight, you must connect the scale to the VeSync app (see page 8-9). • Turning on Zero-Current Mode in the VeSync app will turn off the scale’s electrical current and will only provide measurements for weight and BMI. - Page 12 Step on the scale, then step off. Wait for the LCD screen to display “ ” before using. Place dry, bare feet on the scale’s conductive areas. Stand on the scale until the display flashes several times, showing your final measurement. [Figure 1.2] If your smart scale is connected to the VeSync app, additional...
- Page 13 Switching Units To change the unit of measurement (kg, lb, or st), lightly tap on the scale and open the VeSync app. Select the scale(you should see “Connected” in the app), then tap the Settings icon ( ). You can adjust the units on this page.
-
Page 14: Maintenance
Maintenance Clearing the Smart Scale If the scale has been moved or flipped upside down, it must be cleared to ensure accurate results. Place the scale on a hard, flat surface. Step on the scale until digits appear on the display, then step off. - Page 15 Charging the Battery The display will show “ ” when the batteries needs to be replaced. Insert the USB charging cable into the USB charging port. Plug the USB charging cable into a DC 5V adapter and plug into an outlet. You can also plug the cable into a powered USB outlet.
-
Page 16: Common Display Codes
Common Display Codes Wireless Connection No Wireless Connection Clearing Overload Note: If “ ” appears on the display, please place the scale on a hard, flat surface and wait for it to be cleared before use. Recharge Battery... -
Page 17: Troubleshooting
Troubleshooting The scale doesn’t turn on. • The scale may need to be charged. Plug it in and charge for 3 hours. Nothing happens when I press the unit button. • The scale may need to be reset. Use a safety pin or paper clip to press the “Reset”... - Page 18 My scale will only measure my weight, or only my weight and BMI. • Step on the scale with dry, bare feet (no socks). [Figure 4.1] • Put your feet on the scale’s conductive areas. [Figure 4.2] • Enter your physical information into the app. •...
- Page 19 Android and Google Play are trademarks of Google LLC. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth ® SIG, Inc. and any use of such marks by Etekcity Corporation is under license. Other trademarks and trade names are those of their respective owners.
- Page 20 The firmware setting is not accessible by the end user. FCC SDOC SUPPLIER’S DECLARATION OF CONFORMITY ETEKCITY Corporation hereby declares that this equipment is in compliance with the FCC rules. The declaration of conformity may be consulted in the support section of our Web site,...
-
Page 21: Warranty Information
During the Limited Warranty Period and subject to this limited Warranty Policy, Etekcity will, in its sole and exclusive discretion, either (i) refund the purchase price if the purchase was made directly from the online Etekcity store, (ii) repair any defects in material or workmanship, (iii) replace the product with another product of equal or greater value, or (iv) provide store credit in the amount of the purchase price. - Page 22 You can protect yourself and your products by making sure you only purchase from Etekcity or its authorized dealers.
- Page 23 OF THE PRODUCT COVERED BY THIS LIMITED PRODUCT WARRANTY STATEMENT. THIS LIMITED WARRANTY IS EXCLUSIVE, AND IN LIEU OF ALL OTHER WARRANTIES. NO EMPLOYEE OF ETEKCITY CORPORATION OR ANY OTHER PARTY IS AUTHORIZED TO MAKE ANY WARRANTY IN ADDITION TO THE LIMITED WARRANTY IN THIS LIMITED PRODUCT WARRANTY STATEMENT.
- Page 24 PURCHASE PRICE PAID BY THE PURCHASER FOR SUCH PRODUCTS, OR (b) INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES EVEN IF ETEKCITY CORPORATION OR ONE OF ITS SUPPLIERS HAS BEEN ADVISED OF THE POSSIBILITY OR LIKELIHOOD OF SUCH DAMAGES. AND REGARDLESS OF WHETHER CAUSED BY TORT (INCLUDING NEGLIGENCE), BREACH OF CONTRACT, OR OTHERWISE.
- Page 25 UNDERSTAND YOUR RIGHTS FULLY. CHANGES TO THIS POLICY We may change the availability of this limited warranty at our discretion, but any changes will not be retroactive. This warranty is made by: Etekcity Corporation 1202 N. Miller St., Suite A Anaheim, CA 92806...
-
Page 26: Customer Support
Customer Support If you have any questions or concerns about your new product, please contact our helpful Customer Support Team. Etekcity Corporation 1202 N. Miller St., Suite A Anaheim, CA 92806 Email: support@etekcity.com Toll-Free: 1-855-686-3835 Support Hours Mon–Fri, 9:00 am–5:00 pm PST/PDT *Please have your order invoice PDF or screenshot ready before contacting Customer Support. - Page 27 D1_24A09_us...
